52
Miscellaneous
components
Air toe kick seal
(1)
Toe kick install kit
Toe kick panel
(1)
Tools
Cross-head screwdriver
M4 hex key
(1)
Attaching the mounting plate
1 Re-attach the toe kick mounting plate (A) to the plinth using same
screws that were set aside previously.
2 If toe kick depth is less than 3 5/8" (92mm), attach an air toe kick
seal (B) to the mounting plate.
z
Peel off the adhesive tape of air toe kick seal and attach to the
middle of the back side of the mounting plate.
Attaching the toe kick panel
1 Position the toe kick in front of the mounting plate.
z
The spacers (D) on the toe kick must be aligned with the
magnets of the mounting plate.
2 Press the toe kick onto the mounting plate to fix the position.
z
For custom toe kick, spacers are not needed.
z
For correct dimensions of toe kick, refer to 'Toe kick panel
dimensions' for more information.

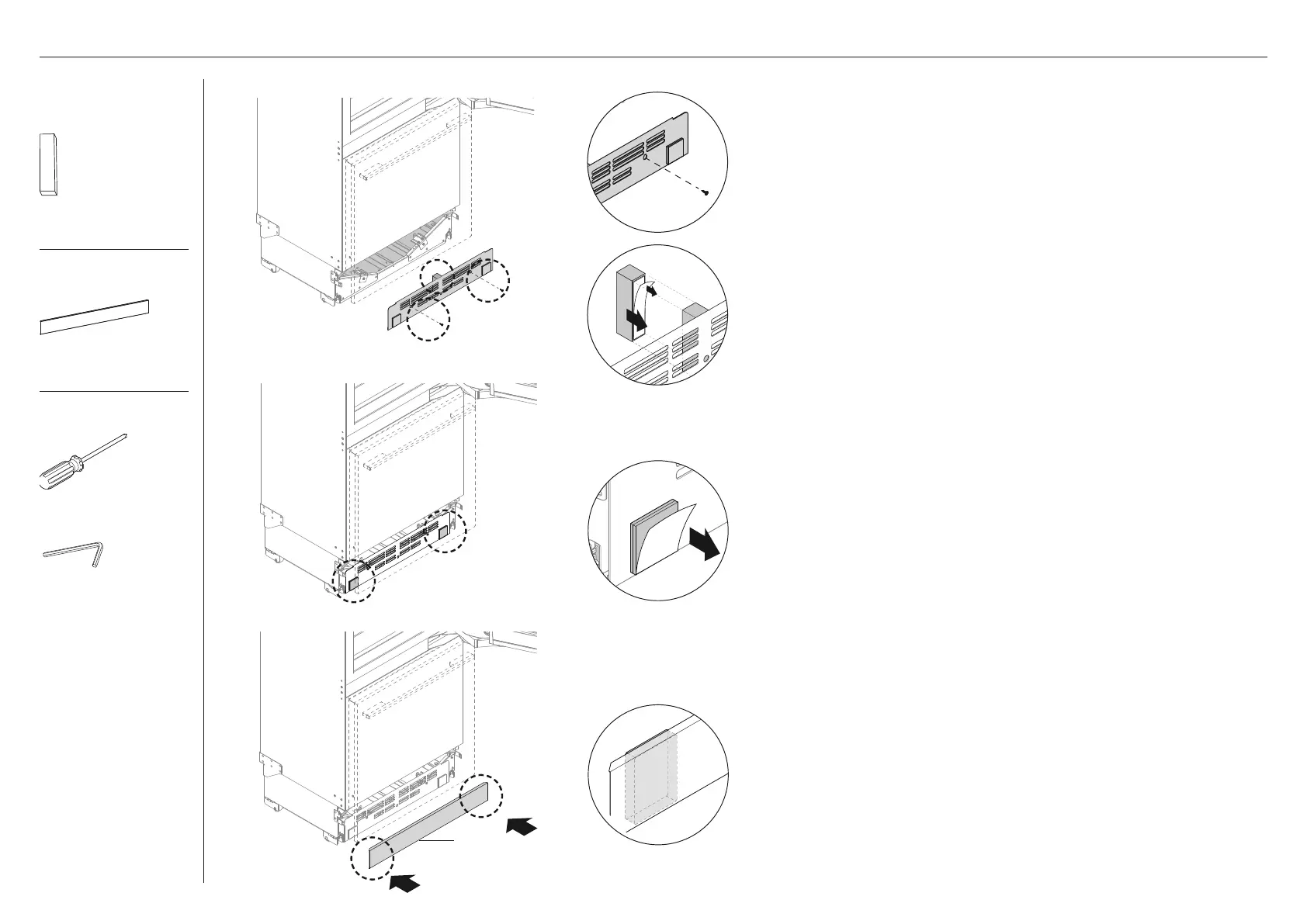

INSTALL TOE KICK PANEL
b
a
a
b
b
C
C
3 Peel off the adhesive tape backing of the magnets (C) attached to
the mounting plate.
D
D
D
C
toe kick
