INSTALL DOOR AND DRAWER PANELS
Tools
Powered driver
(with 2.5mm drill bit)
Cross-head screwdriver
M4 hex key
(1)
1/2" (13mm) spanner
(1)

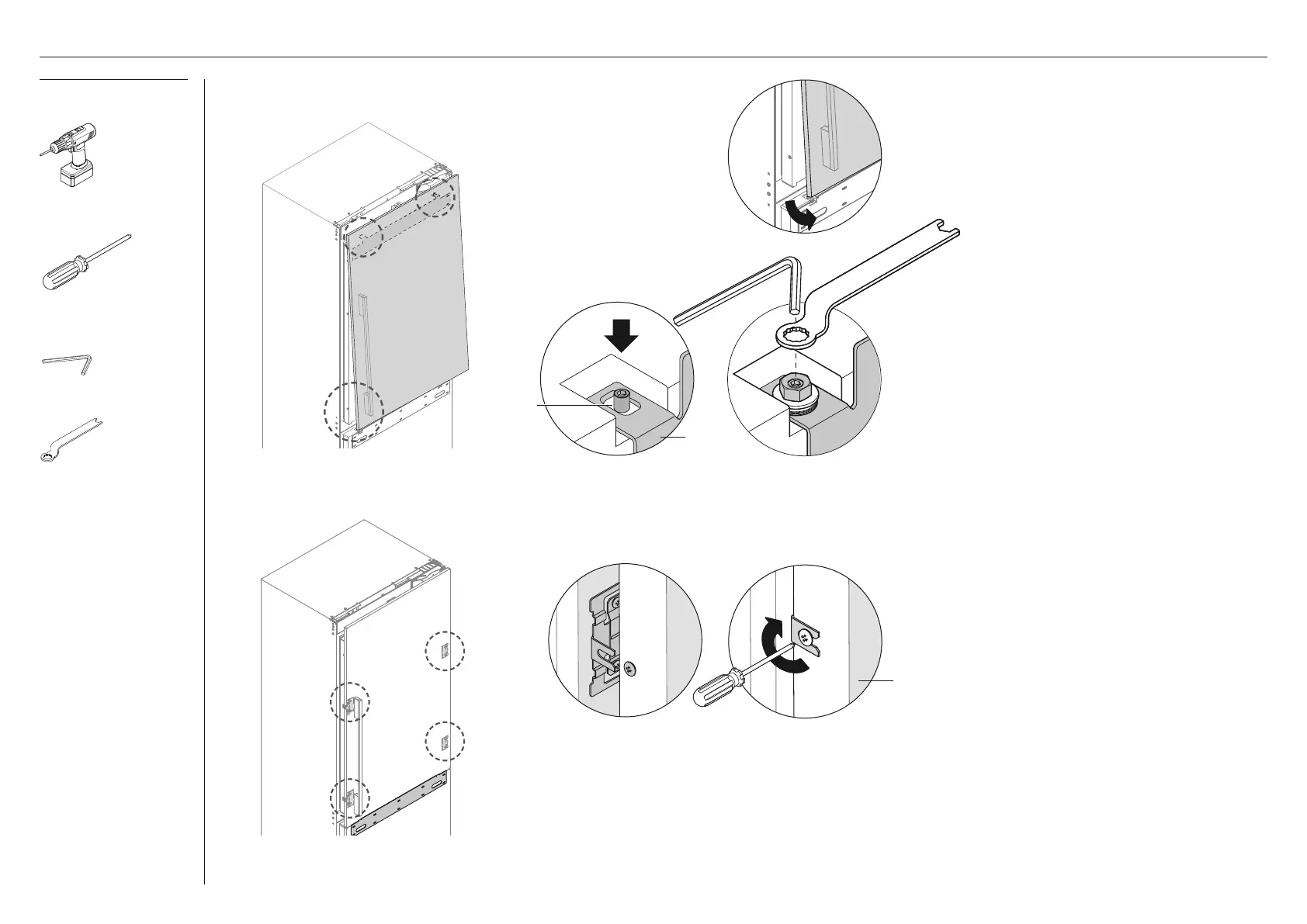

Hanging the refrigerator door panel
1 Hold the door panel at an angle towards the top of
the refrigerator door (A).
2 Lower the screw holes of the hanging bracket
onto the adjustment screws at the top of the
refrigerator door. (B)
3 Screw the M8 washer and nut to the adjustment
screw and loosely tighten.
4 Slide-in the side brackets (C) to the side screws
of the door, and align the door panel straight
with the refrigerator door.
5 Tighten the side screws (D) loosely to
temporarily secure the door panel.
b
door panel
Left isometric view
c
c
c
c
Repeat steps 1 - 4 for the freezer drawer panel.
adjustment
screw
hanging
bracket
A
b
c
