Water fittings kit
Collet locking clip
(1)
7/16" (11mm) BSP
Stainless steel braided
hose with adaptor
(1)
1/4” (6.35mm) Adaptor
(2)
38
CONNECT WATER AND POWER SUPPLY

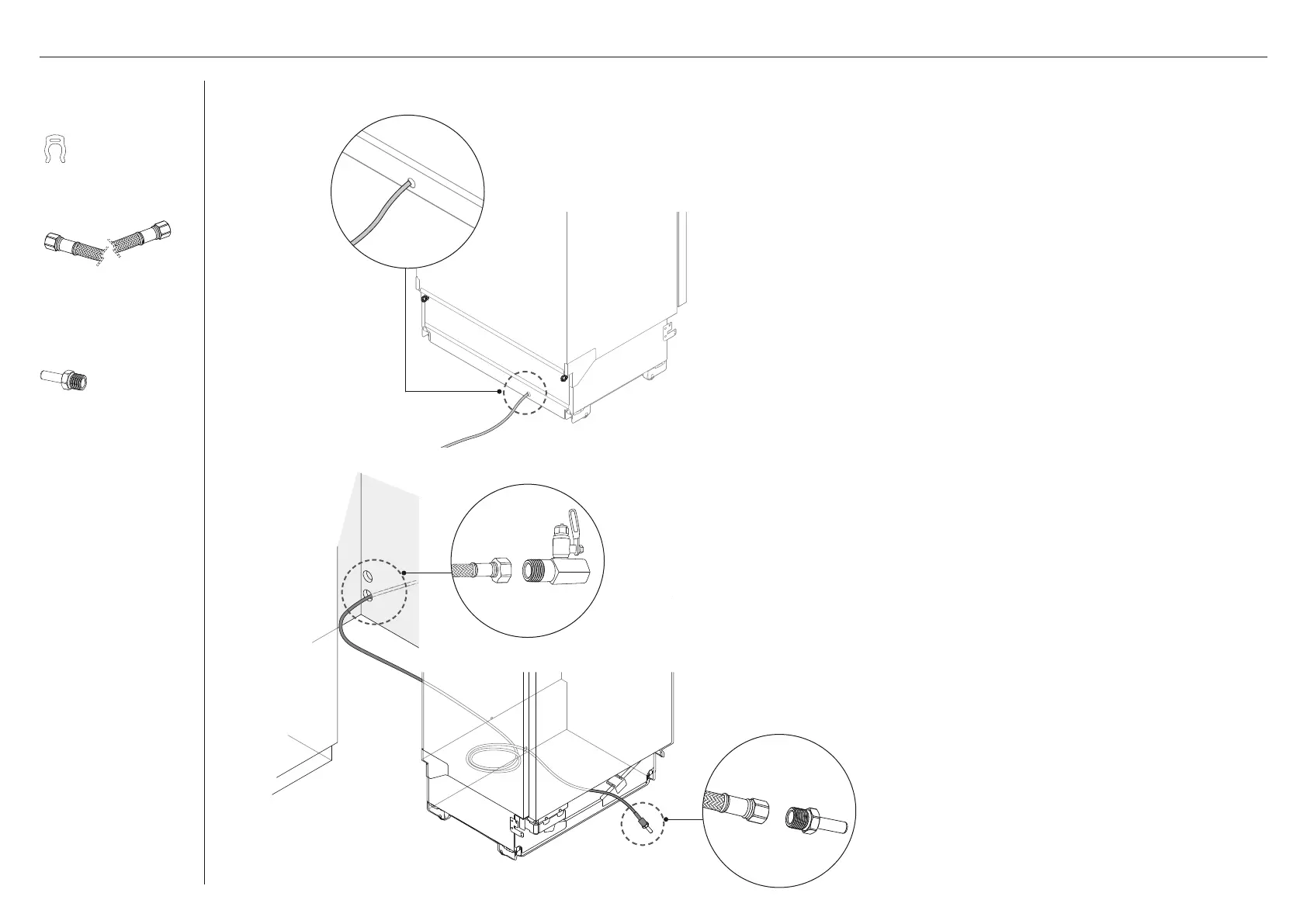

Connecting to water supply
1 Roll the appliance to the front of the cabinetry close enough to
allow access at the back for power and water connection.
2 Insert the adaptor end of the braided
hose through a hole at the rear of the
plinth (A) and push all the way to the front of the appliance.
3 Connect one end of the braided water hose to the water tap (B).
z
Flush water through the hose prior to connection to the appliance
to remove any debris in the hose.
4 Pull the hose from the front of the appliance and connect
an adaptor (C).
B
C
Rear side
A
