INSTALL ANTI-TIP BRACKET
Anti-tip bracket
assembly kit
Anti-tip bracket
(1)
Masonry plug
(4)
#10x40 cross-head screw
(4)
Tools
Cross-head screwdriver
Powered drill
Pencil
Floor

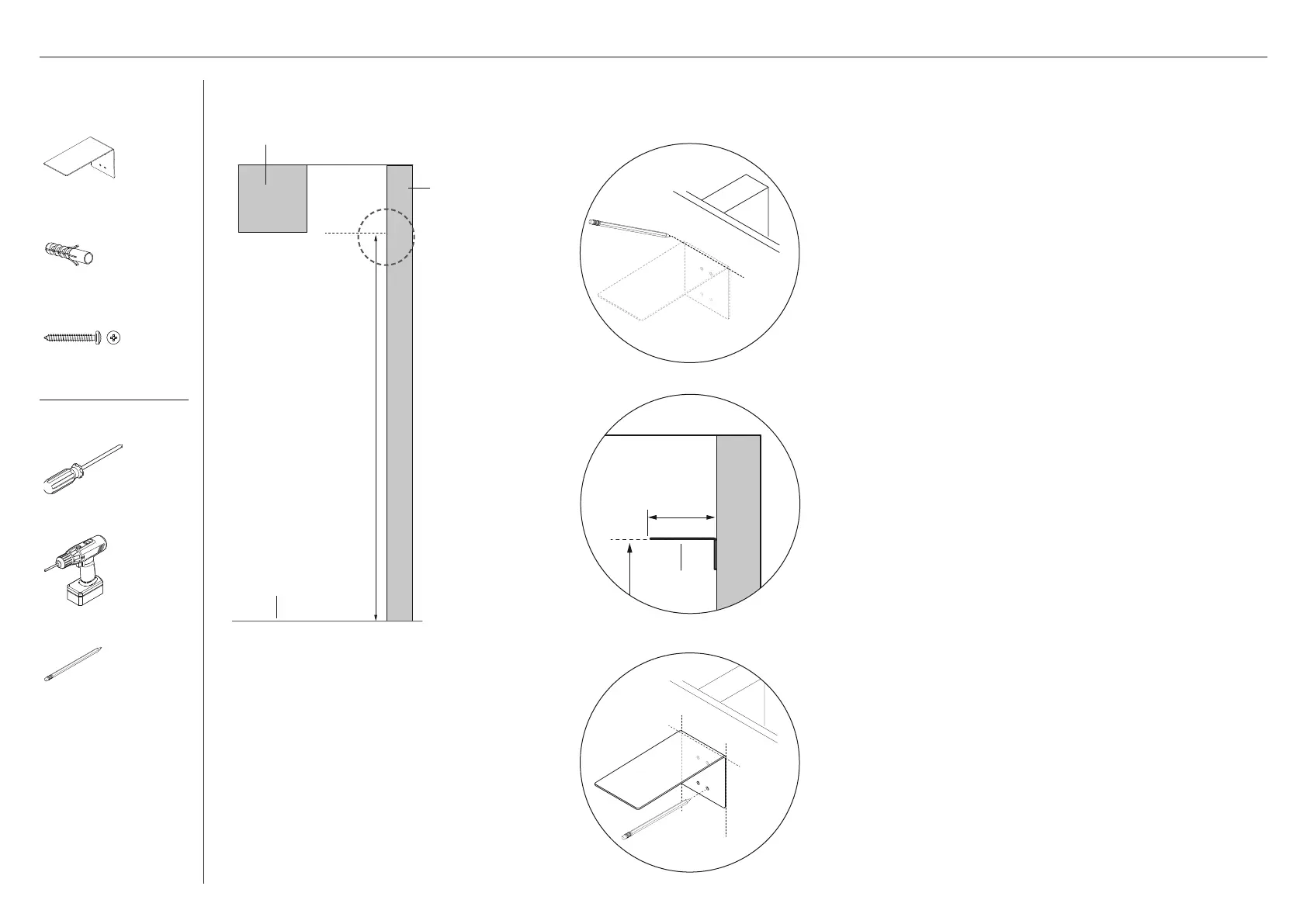

Locating the attachment position of anti-tip bracket
1 Measure the height (A) of the attachment location from
the floor to the alcove return at the back wall, and mark a
horizontal line (B).
z
The height (A) must not exceed 84 3/16" (2138mm) to
ensure the appliance does not tip over during installation.
z
Ensure there is a stud behind the wall.
A
back wall
overhead
cabinetry
stud
B
PROFILE VIEW
min 7 3/4" (197mm)
bracket
2 Place the bracket to the backwall. Align the undersurface of
the bracket along the marked line.
3 Mark screw hole locations, and drill screw holes with
powered drill.
z
For solid wall installation, drill holes suitable to the size of
the masonry plugs.
