29

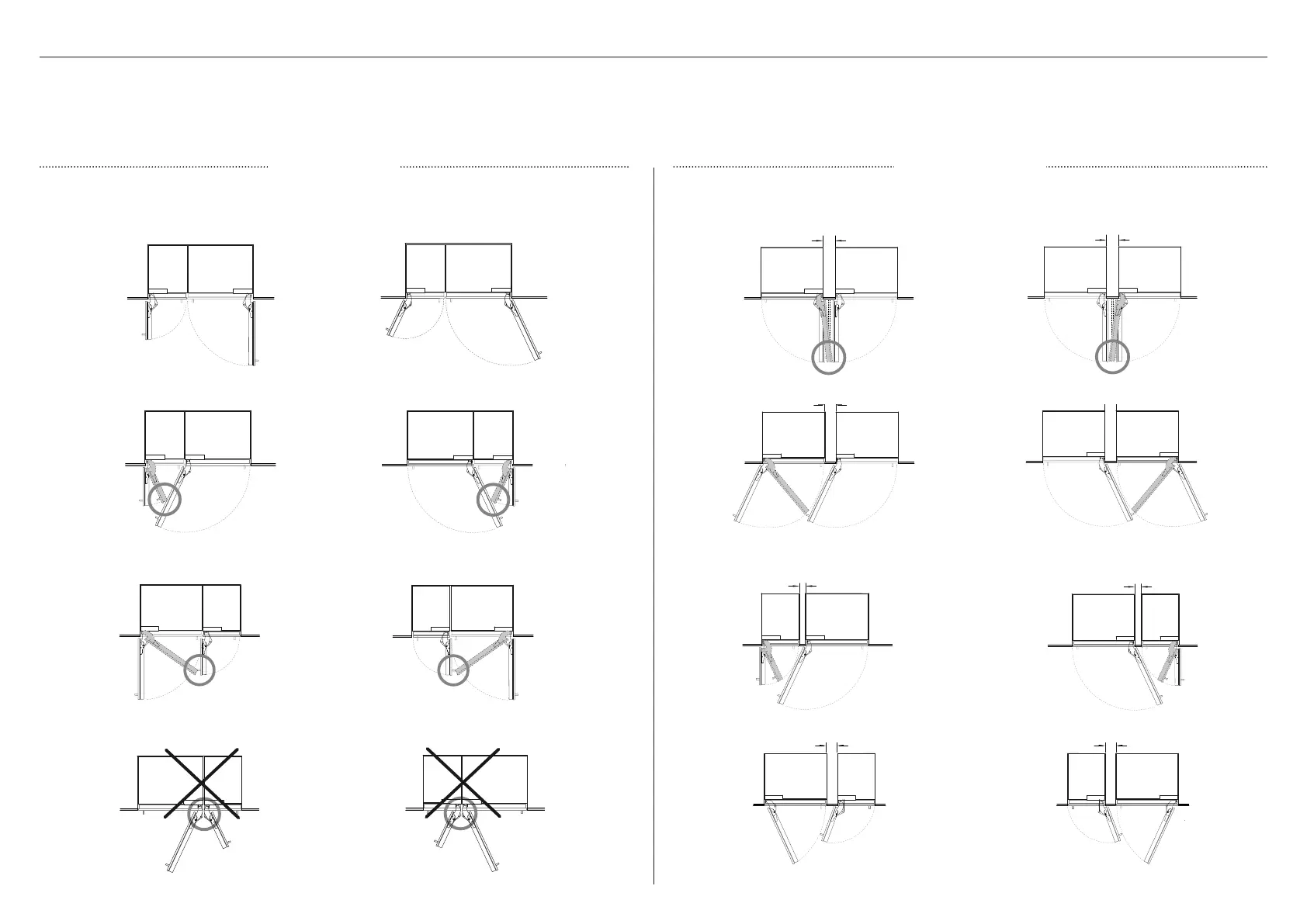

The following are options for dual/multiple installation with reference to the door opening range and partition (optional) between two appliance combinations.
z
Beware of clashing (circled) when opening the doors. Use a hinge limiting pin to restrict door opening rotation to 90°. Refer to ‘Door Clearance’ for more information.
z
If installing a partition between two appliances, it must have enough clearance to ensure the doors/handles do not interfere with one another when opening or closing.
min 100mm
min 100mm
min 100mm
min 100mm
min 60mm
min 60mm
min 100mm
min 100mm
DUAL INSTALL OPTIONS
NO PARTITION WITH PARTITION
