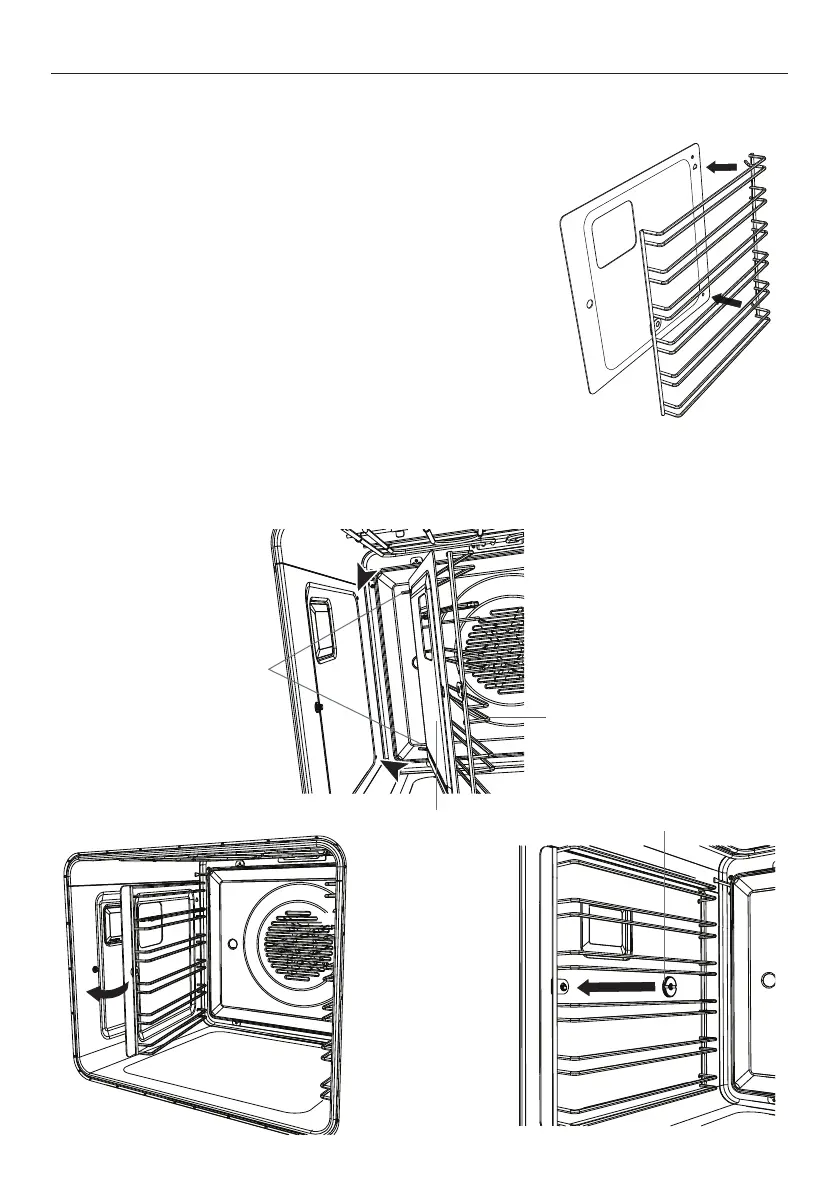

Fitting the side racks and catalytic panels (catalytic panels bought as an additional
accessory and not included.)
You will find your side racks, catalytic panels
(some models only) and sliding shelf supports in
the accessory box supplied with your oven.
Fit the catalytic panel to the side rack
1 Ensure the panels are placed the correct way around:
the cutout fits over the light and the hole for the
fixing screw goes to the front of the oven.
(Note: panels should sit flush against the oven wall).
2 Fit the rear prongs of the side rack through the
holes in the catalytic panel.
Fit the side racks
1 Slide the rear prongs of the side rack into the holes at the rear of the oven
2 Fit the side rack front tab (and catalytic panel if fitted) over the fixing screw.
3 Replace the fixing nut. You may use a coin to tighten the nut.
Fixing nut
Side rack
Rear prongs
Catalytic panel
(if fitted)
