INSTALLATION
Locating Built-in Clearances
IMPORTANT!
Gas fittings, regulator, and installer supplied shut-off valves must be easily accessible.

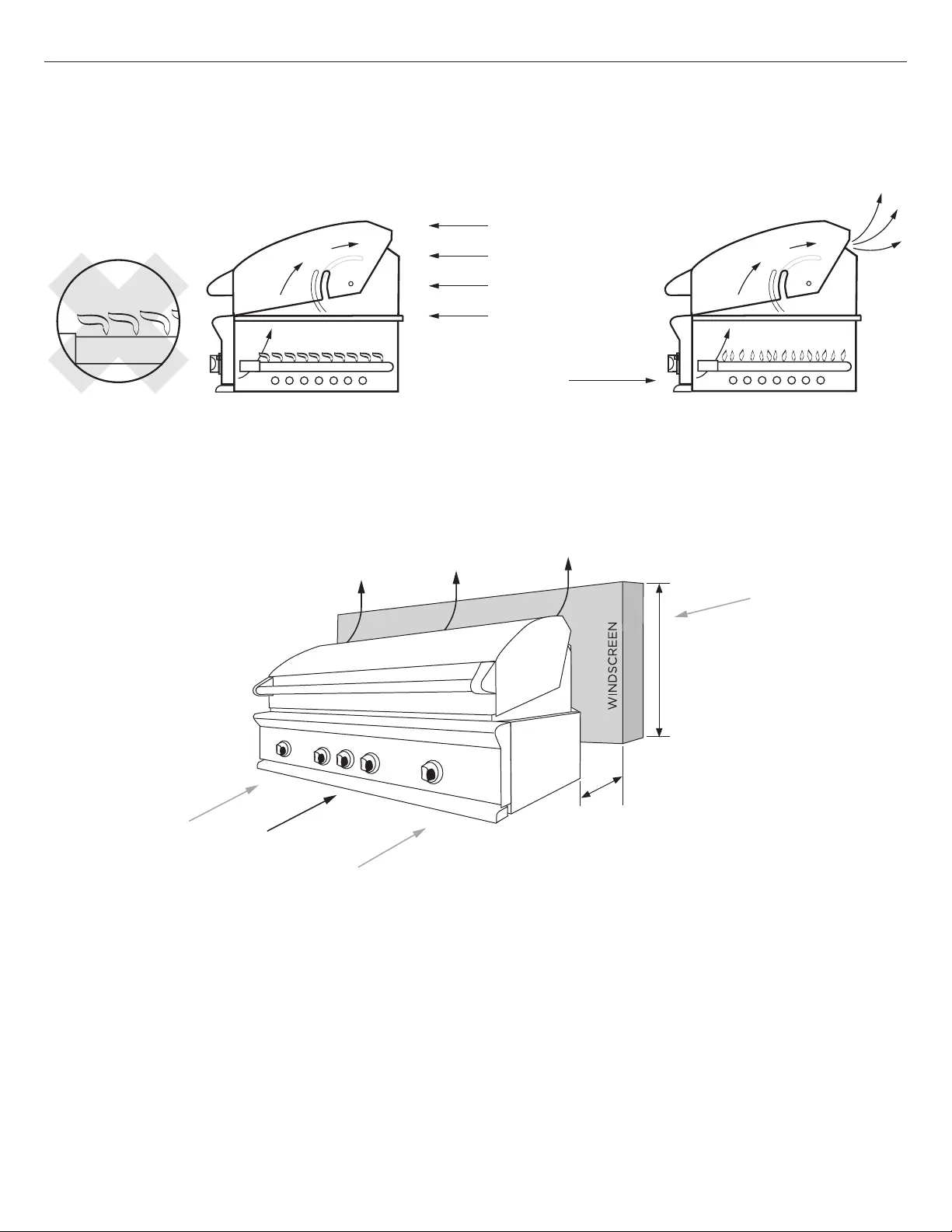

Wind hitting the grill while in use, (especially wind blowing into or across the hood gap) can cause
poor performance and in some cases can cause the control panel to get dangerously hot.
If wind is an issue, a windscreen should be added. The windscreen should be higher than the top of
the opening in the back of the grill, with a minimum clearance of 76mm for non-combustibles, or
457mm for combustibles, from the back of the grill
PRIMARY INTAKE
AIR FLOW
EXHAUST VENT FLOW
WIND
WIND
WIND
476mm min.
76 mm min. for
non-combustibles
457 mm min.
for combustibles
FIG. 01c
FIG. 01a FIG. 01b
PREFERRED
AIR FLOW
WIND
DIRECTION
GRILL EXHAUST
EXHAUST
FLAME LIFT
EXHAUST
PREFERRED
AIR FLOW
WIND
DIRECTION
GRILL EXHAUST
EXHAUST
FLAME LIFT
EXHAUST
