2524

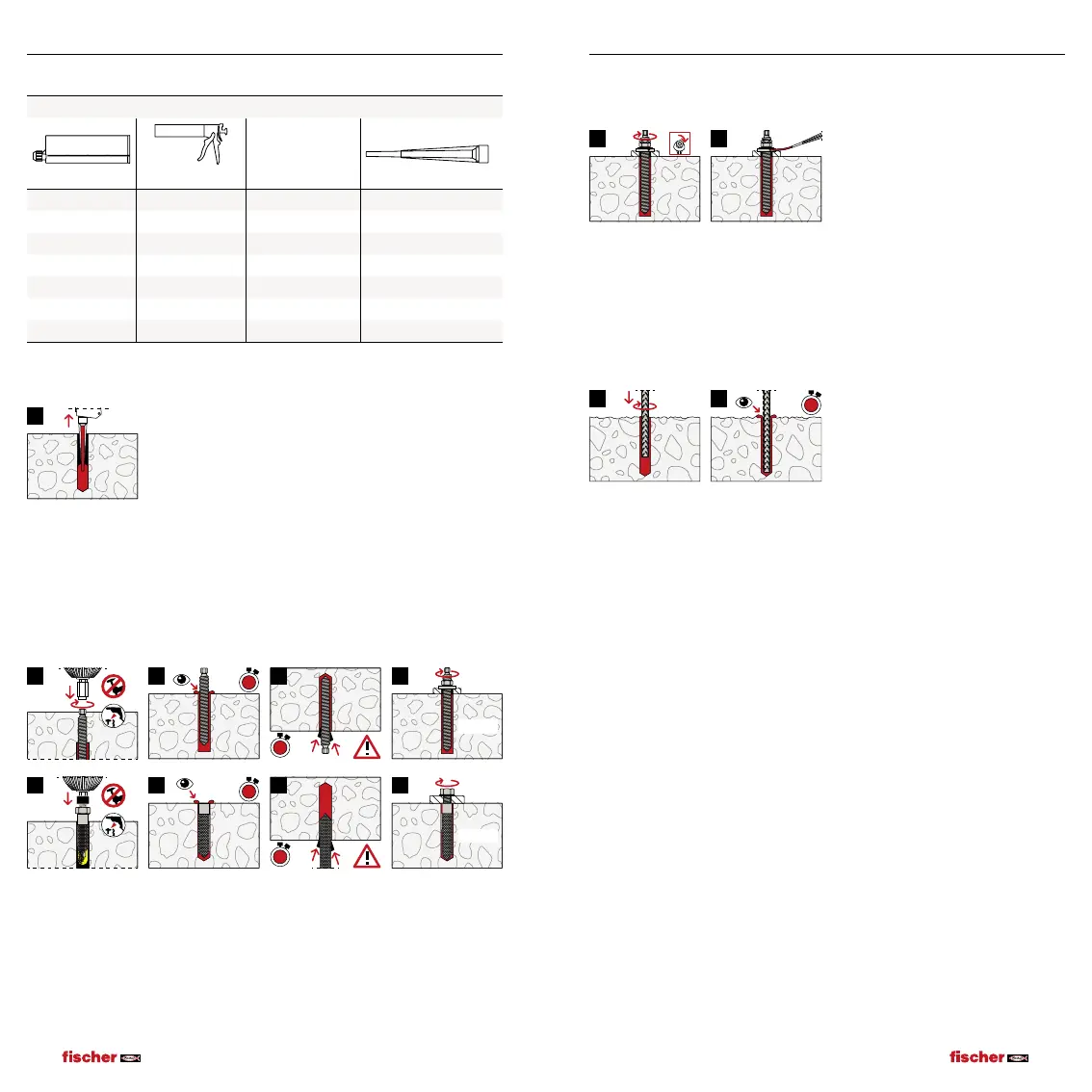

Installation instructionInstallation instruction
FIS EM Plus
Cartridge Dispenser Item No. Static mixer
300 ml KPM 3 541441 FIS MR Plus
390 ml FIS DM S Pro 563337 FIS MR Plus
390 ml FIS DB S Pro 558955 FIS MR Plus
390 ml FIS AP 058027 FIS MR Plus
585 ml FIS DM S-L 510992 FIS UMR
585 ml FIS DP S-L 511125 FIS UMR
1,500 ml FIS DP S-XL 512401 FIS UMR
Injection of the mortar
8
8 Fill approximately 2/3 of the drilled hole with mortar. Always begin from the
bottom of the hole and avoid air pockets or voids. For drill hole depth h
0
≥ 150
mm / 6 inch use an extension tube.
For overhead installation, deep holes
(h
0
> 250 mm / 10 inch) or drill hole diameter
(d
0
≥ 40 mm / 1 1/2 inch) use an injection-adapter see Table I or V respectively.
Installation of anchor rods or fischer internal threaded anchors RG M I
t
cure
t
cure
t
cure
max T
inst
t
cure
max T
inst
9
9
10
10
11
11
12
12
9 Only use clean and oil-free metal parts. Mark the setting depth on the anchor
rod. Push the anchor rod or fischer internal threaded anchor RG M I down to
the bottom of the hole, turning it slightly while doing so.
10 After inserting the anchor element, excess mortar must be emerged around
the anchor element.
11 For overhead installations support the anchor element with wedges (e. g.
fischer centering wedges) or fischer overhead clips. For push through installa-
tion fill the annular gap with mortar.
12 Wait for the specified curing time t
cure
see Table IX. Mounting the fixture max.
T
inst
see Tables II, IV or VI, VIII respectively.
¼
12 13
Option
After the minimum curing time is reached, the gap between anchor element and
fixture (annular clearance) may be filled with mortar via the fischer filling disc FFD.
Compressive strength ≥ 50 N/mm
2
/ 7250 psi (e.g. fischer injection mortars FIS
HB, FIS SB, FIS V, FIS EM Plus). ATTENTION: Using fischer filling disk FFD reduces
t
fix
(usable length of the anchor).
Installation reinforcing bars
t
cure
109
9 Only use clean and oil-free reinforcing bars. Mark the setting depth. Turn while
using force to push the reinforcement bar into the filled hole up to the setting
depth mark. When the setting depth mark is reached, excess mortar must be
emerged from the mouth of the drill hole.
10 Wait for the specified curing time t
cure
see Table IX.
