ASSEMBLING THE SHREDDER
6. ASSEMBLING THE SHREDDER
ATTENTION: Prior to performing any work on the machine, check that it is turned off and disconnected
from the power supply.
1. Mounting the wheels on the shredder
structure (Fig. 2):
— Push the wheel axle through the
holes in the frame.
— Put a washer and a wheel
bushing on each side of the axle.
— Put on the wheel and secure in
place using a nut.
— Insert a hex key through the
opening in the wheel's axle and
tighten the wheel nut.
— Finally put on the wheel cover.
— Repeat this procedure for both
wheels.

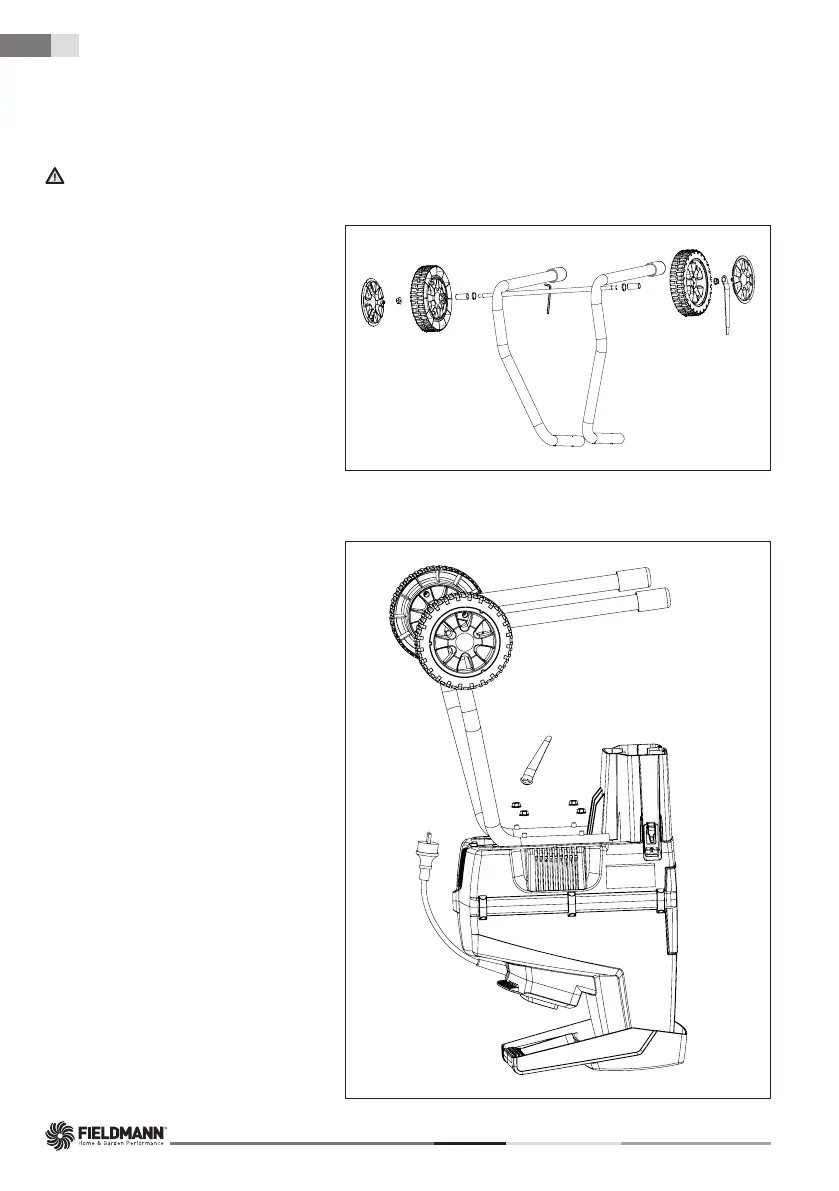

Fig. 2
2. Turn the shredder unit upside down
and place it on an even floor. Then take
the already assembled structure with
the mounted wheels (point 1) and fix
it to the shredder body using the nuts
provided (Fig. 3)
Fig. 3
