INTEGRATED AND CLASSIC SERIES:
Operate as follows:
> Unwind the electric cable and connect it directly to
the wall socket.
> Make sure the appliance is in the Stand-by con-
dition and that all lights are o; should it be not so
press the Unit button
to switch it o.

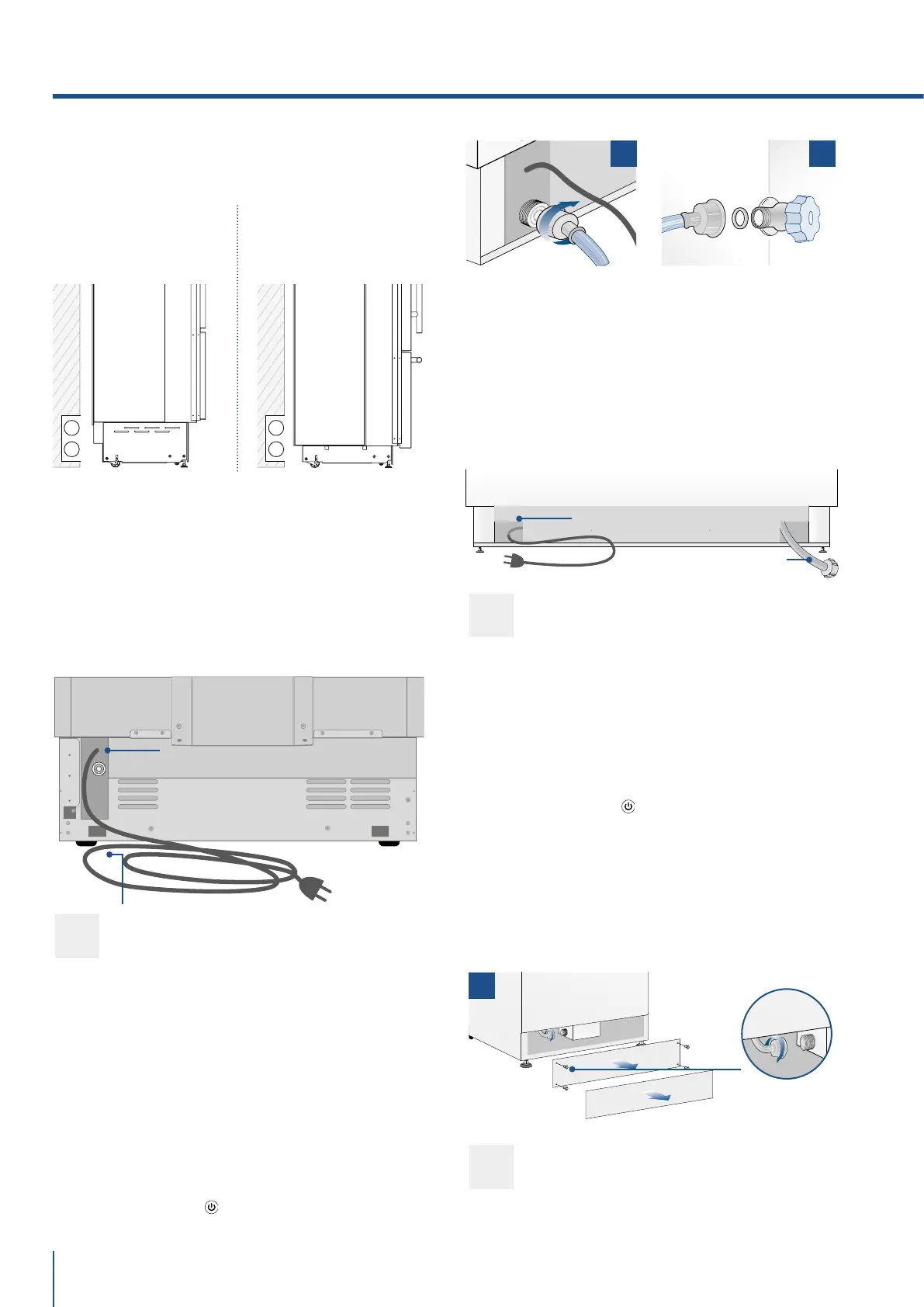

ELECTRICAL AND WATER SUPPLY BEHIND THE UNIT
Back of appliance
INTEGRATED AND
CLASSIC SERIES:
X-PRO AND COUNTRY
SERIES:
> Fit one end of the water hose onto the connector at
the appliance’s back, using the supplied 3/4” fitting
[ 1 ] .
> Fit the other end of the hose to the water tap, using
the supplied 3/4” fitting [ 2 ].
> On 0FZ models only, install the water filter support
outside the appliance, using the fittings supplied (see
page 49).
X-PRO AND COUNTRY SERIES:
Operate as follows:
> Unwind the electric cable and connect it directly to
the wall socket.
> Make sure the appliance is in the Stand-by con-
dition and that all ights are o; should it be not so
press the Unit button
to switch it o.
> Connect the water pipe to the threaded connection
located at the base of the appliance [ 1 ], using the
3/4” fitting supplied.
> Connect the hose to the tap using the 3/4” fitting
supplied [ 2 ].
> Only on 0FZ models, install the water filter support
externally to the appliance, using the fittings sup-
plied (see page 49).
Back of appliance
Front of appliance
3. PREPARING THE INSTALLATION
E
W
E
W
Water connection
Electrical connection
Electrical connection
Water connection
1
1 2
