50

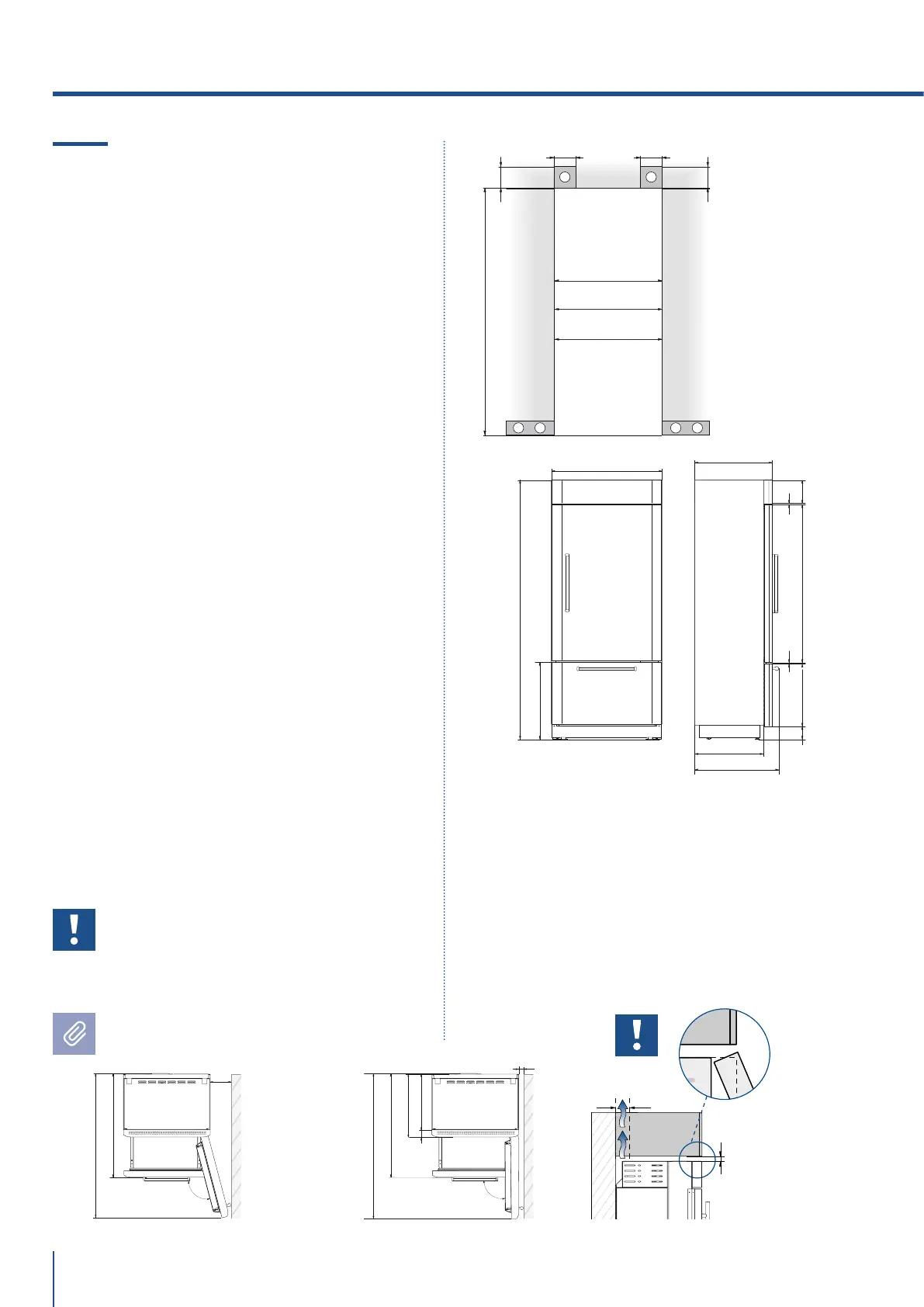

2.8 Installation niche features:
Country Series
A - area to be left clear for the anti-tipping brackets
E - area to be left clear for the power supply cable
W - and water supply hose
Minimum Niche Height
2134 mm (84”)
Minimum Niche Width
AS899: 900 mm (35 1/2”)
AS749: 750 mm (29 5/8”)
AS599: 600 mm (23 3/4”)
Door Swing Clearance
AS899: 1475 mm (58 1/8”)
AS749: 1325 mm (52 1/8”)
AS599: 1175 mm (46 1/4”)
Door Opening Angle
105°
Width
AS899: 887 mm (35”)
AS749: 737 mm (29”)
AS599: 587 mm (23 1/8”)
Height
2120 mm (83 1/2”) + 25 mm (1”)
Depth with door
635 mm (25 ”)
Minimum distance from the wall (hinge side)
with door at 105° and 90°.
AS899: 230 mm (9”)
AS749: 195 mm (7 3/4”)
AS599: 160 mm (6 1/4”)
Important!
If the units are to be installed inside a
niche or within an enclosed structure, it
is necessary to design a ventilation shaft
at the back of the niche to assure proper
ventilation at the back of the unit.
Dimensions in parentheses are in inches.
2. TECHNICAL REQUIREMENTS
A A
E W E W
140 (5 ½”)140 (5 ½”)
100 (4”)
100 (4”)
min 2134 (84”)
AS899: 900 (35 ½”)
AS599: 600 (23 ¾”)
AS749: 750 (29 ⅝”)
560 (22”)
2120 (83 ½”) +25 (1”)
613 (24 ⅛”)+25 (1”)
635 (25”)
695 (27 ¼”)
485 (19 ⅛”)
1296 (50”)
195 (7 ⅝”)
8 (⅜”)
8 (⅜”)
1T/0T *
128 (5)
+ 25 (1”)
min 10 (⅜”)
min 50 (2”)
105
°
1016 (40”)
560 (22”)
75 (3”)
AS899: 887 (35”)
AS749: 737 (29”)
AS599: 587 (23 ⅛”)
10 (⅜”)
60 (2 ¼”)
635 (25”)
AS899: 230 (9”)
AS749: 195 (7 ¾”)
AS599: 160 (6 ¼”)
560 (22”)
75 (3”)
AS899: 887 (35”)
AS749: 737 (29”)
AS599: 587 (23 ⅛”)
10 (⅜”)
60 (2 ¼”)
635 (25”)
1016 (40”)
AS899: 1475 (58 ¼”)
AS749: 1325 (52 ⅛”)
AS599: 1175 (46 ¼”)
AS899: 1475 (58 ¼”)
AS749: 1325 (52 ⅛”)
AS599: 1175 (46 ¼”)
90°
25 (1”)
