Assembly
19
Mount micro filter
1 2 3 4
4
5

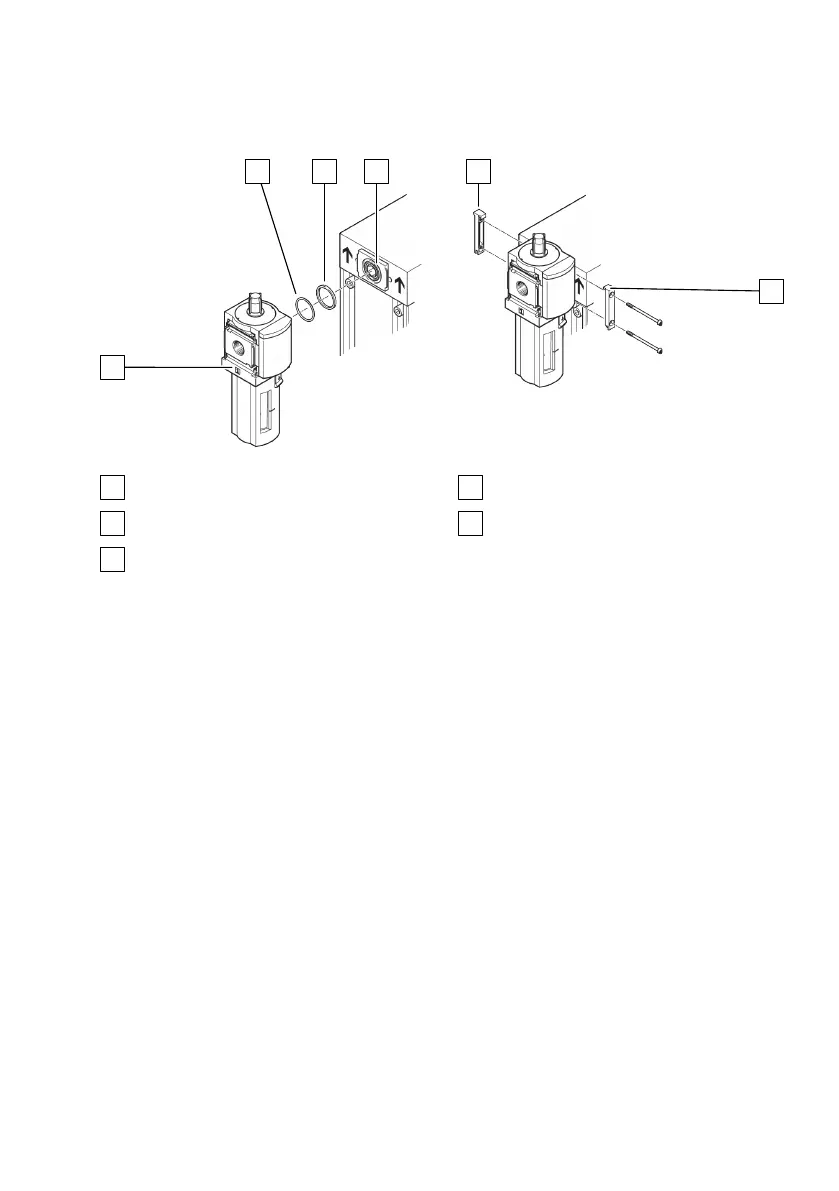

Fig. 8: Mount micro filter
1
O-ring
2
Flat seal
3
Slot of the module connector plate
4
Module connector
5
Number
1.
Insert the flat seal [2] into the slot of the module connector plate [3].
2.
Insert the O-ring [1] into the slot of the micro filter.
3. Place the micro filter on the dryer. Observe the flow direction from 1 to 2 during this stage. The
numbers [5] on the housing of the micro filter serve as orientation.
4.
Mount the module connector [4] between the micro filter and the dryer.
–
The protruding edge of the module connector is located at the top.
–
Tightening torque of the screws: 1.2 Nm ± 10%.
5.2.2 Condensate input and condensate output
The ports for the condensate input and output are located at the rear of the adsorption dryer.
Depending on the circumstances, it may make sense to make the connection before installing the
adsorption dryer.
