Festo — PDAD — 2022-02i
Product overview
13
PDAD -09 -13 -22 -51 -73 -100
Operating pressure Number of the required air gun nozzle
0.4 MPa (4 bar, 58 psi) 9 10 14 23 29 2 x 23
0.5 MPa (5 bar, 72.5 psi)
0.6 MPa (6 bar, 87 psi)
0.7 MPa (7 bar, 101.5 psi) 7
1)
8
1)
12
1)
17
1)
24
1)
2 x 17
1)
0.8 MPa (8 bar, 116 psi)
0.9 MPa (9 bar, 130.5 psi)
1.0 MPa (10 bar, 145 psi) 6 7 10 14 17 2 x 14
1.1 MPa (11 bar, 159.5 psi)
1.2 MPa (12 bar, 174 psi)
1.3 MPa (13 bar, 188.5 psi) 5 6 9 12 15 2 x 12
1.4 MPa (14 bar, 203 psi)
1.5 MPa (15 bar, 217.5 psi)
1.6 MPa (16 bar, 232 psi)
1) Delivery status

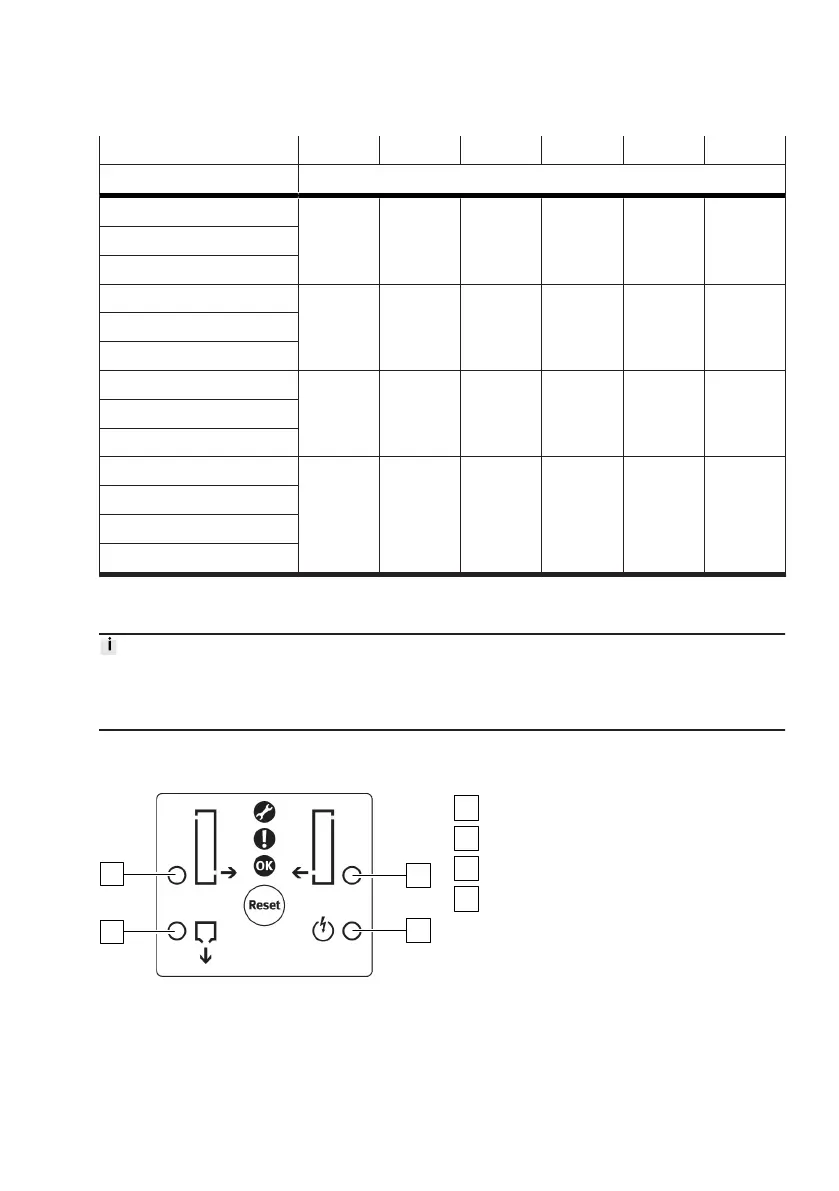

Tab. 8: Required air gun nozzle
Which air gun nozzle set is required for the adsorption dryer used
è
4.1.2 Not in scope of delivery.
Information on the resulting nominal flow rates depending on the operating pressure and the required
air gun nozzle
è
10.1 Nominal flow rate.
4.3.9
Display components
Electronic control panel
1
2
3
4
Fig. 3:
Control panel LEDs
1
LED X, left air reservoir
2
LED Y, right air reservoir
3
LED POWER, power supply
4
LED Z, condensate drain
