Assembly

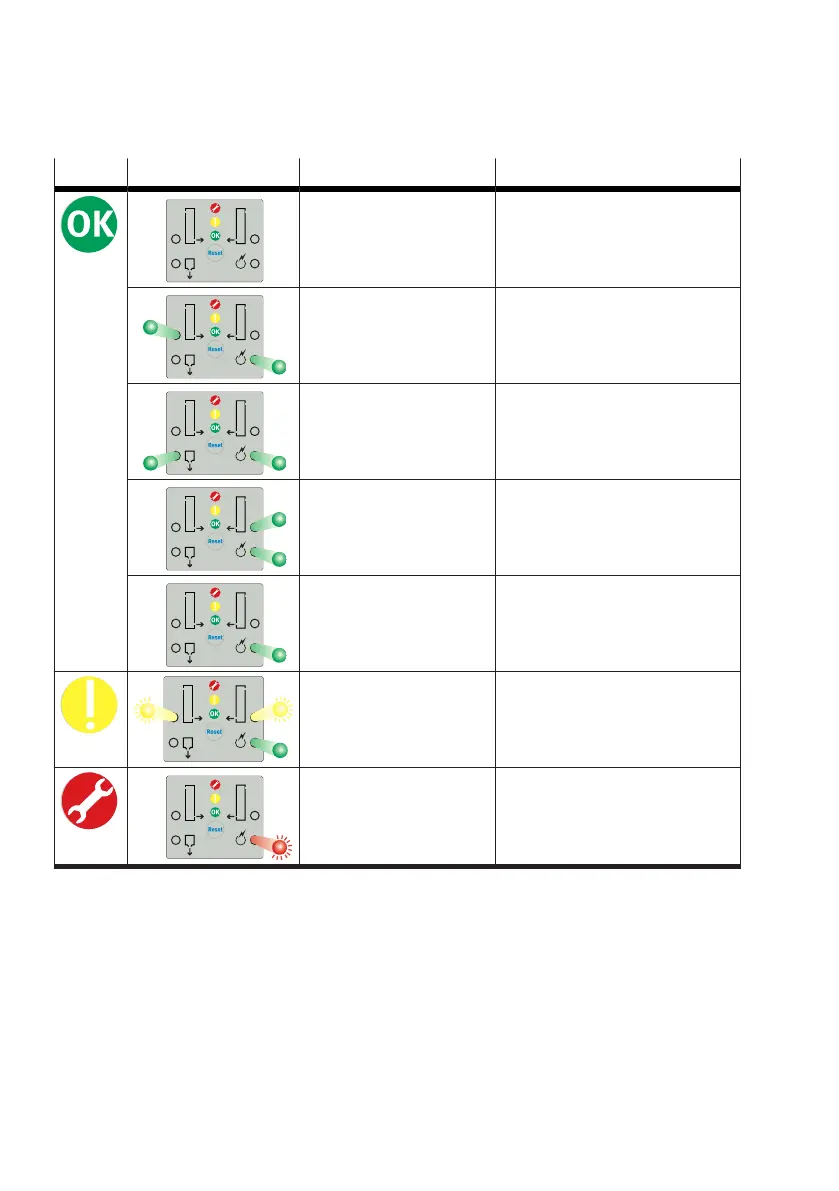

LED displays
Status Display Description Meaning
All LEDs off Operating voltage off
LED POWER green
LED X green
Regeneration cycle left reservoir
LED POWER green
LED Z green
End of regeneration left reservoir
and condensate drain
LED POWER green
LED Y green
Regeneration cycle right reservoir
LED POWER green End of regeneration right reservoir
LED POWER green
LED X flashes yellow
LED Y flashes yellow
Message (pending servicing) after
every 11500 operating hours
Order service kit with new drying
agent cartridges
One or more LEDs flash red Service required or error
è
9 Mal-
functions
Tab. 9: LED status indicator on the control panel
5
Assembly
5.1
Ports for input and output
Layout at delivery status
On delivery, the 3 input ports are on the left side of the dryer when viewed from the front of the unit.
The 3 ports at the output are on the right.
Any one of the 3 input and output ports can be used. The ports that are not used must be closed with
the supplied sealing plugs.
