Festo — EPCS-BS — 2023-11e

Operation

Point-to-point operation

Sequence

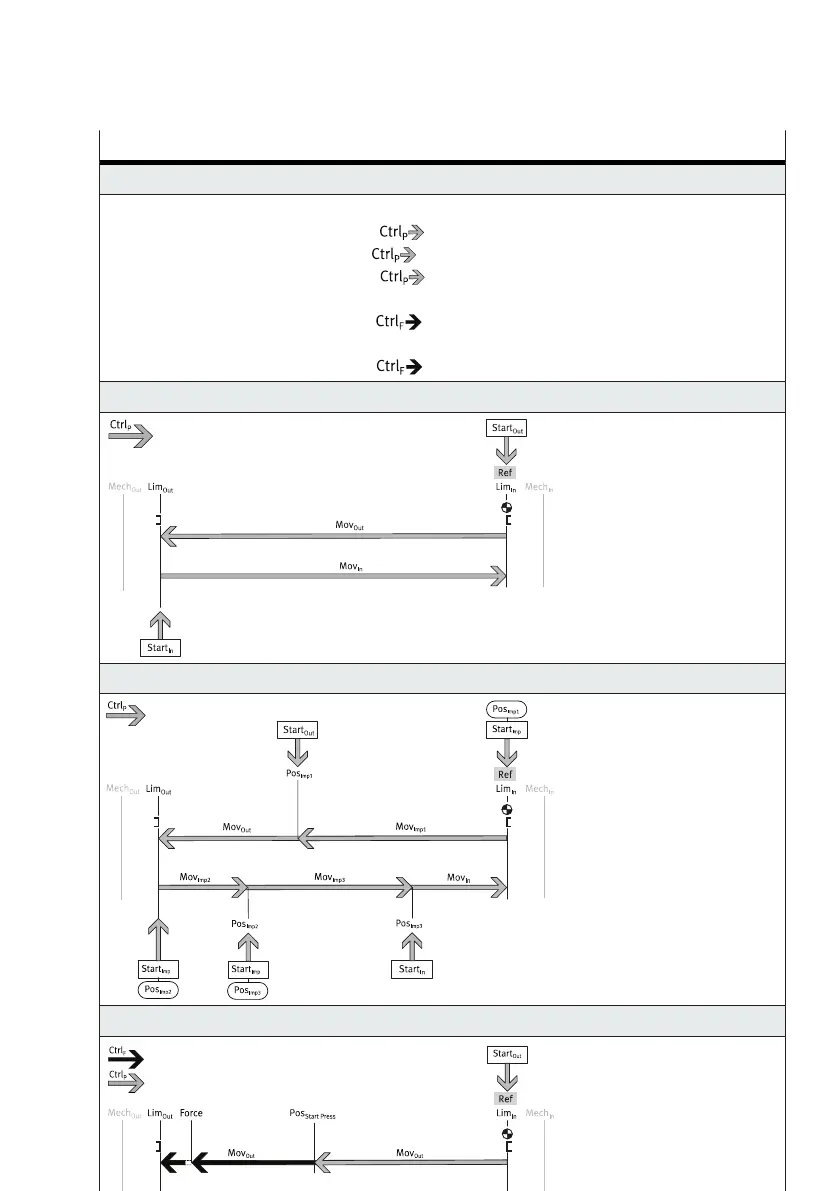

The diagrams show the movements in point-to-point operation

–

Mov

Out

: position-controlled movement to the end position "Lim

Out

–

Mov

: position-controlled movement to the end position "Lim

–

Mov

Imp

: position-controlled movement to the intermediate position "Pos

Imp

–

Point-to-point operation with press function, from Start Press Position "Pos

Start Press

–

Mov

Out

: force-controlled movement until the parameterised force or torque setpoint

value "Force" is reached or to the end position "Lim

Out

– Mov

Imp

: force-controlled movement to the intermediate position "Pos

Imp

" (IO-Link only)

Simple point-to-point operation

Simple point-to-point operation with intermediate position (IO-Link only)

Point-to-point operation with press function

Point-to-point operation with press function and intermediate position (IO-Link only)

1) 10, 20, ..., 100% of maximum value

2) Only required for point-to-point operation with press function

3) Reset at every referencing

4) Reference point: reference end position "Ref"

5) The output stage remains active, the drive decelerates to standstill and remains stationary position-controlled.

6) In error-free status the power stage is switched off after 3s, the drive coasts to a standstill and remains stationary uncontrolled.

Tab. 6: Parameterising and controlling point-to-point operation
