6
Festo — EPCS-BS — 2023-11e
Transport
5.2.1 Product design
1 2 3 4 5 6 7

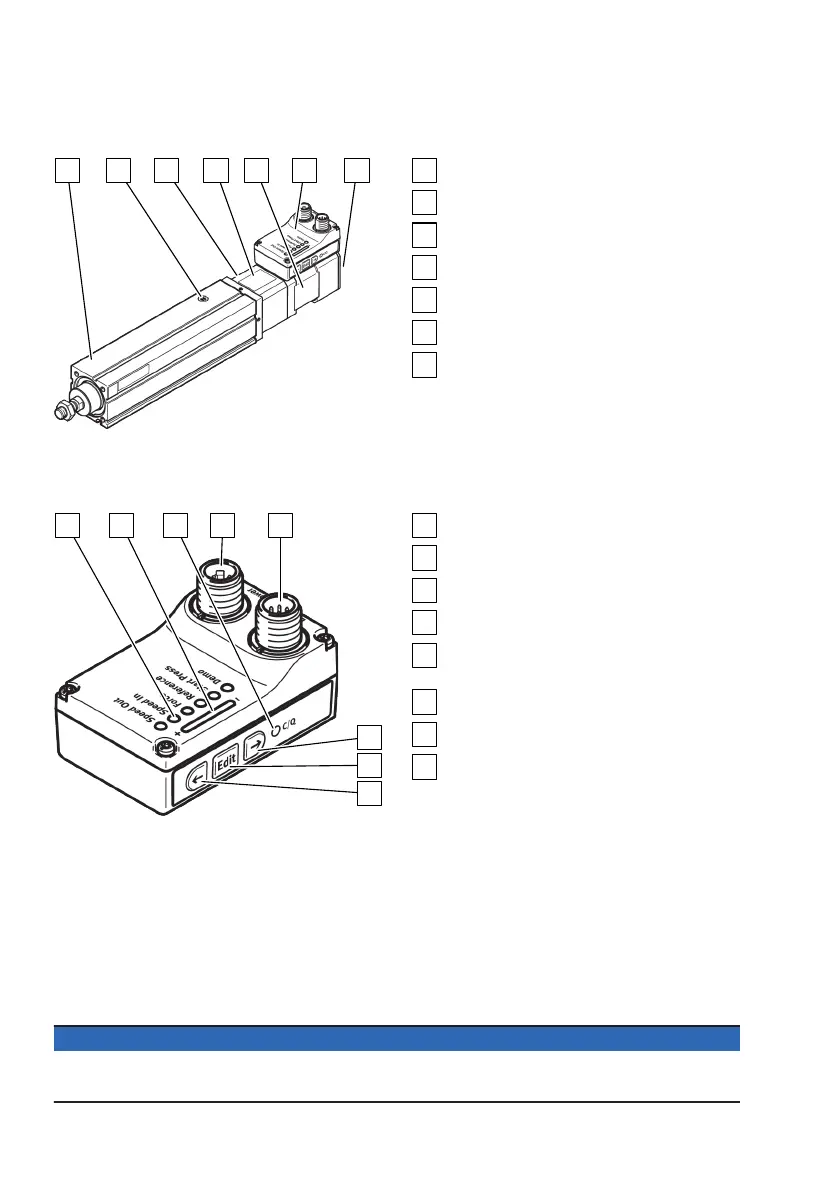

Fig. 2: Product design EPCS-BS, example with
axial kit
1
Electric cylinder EPCC
2
Sealing air connection with filter element
3
Axial kit EAMM-A
4
Product labelling
5
Integrated drive EMCS-ST
6
Controller housing
7
Warning symbol "Attention! Hot surface"
Electrical connections, display elements and HMI control elements
1 2 3 4 5
6
7
8
Fig. 3: Electrical connections, display elements
and HMI control elements
1
LED display menu (Speed Out, ..., Demo)
2
LED parameter display
3
LED C/Q
4
Load voltage connection [Power]
5
Logic voltage connection and digital I/O or
IO-Link connections [Logic]
6
Pushbutton actuator (right arrow)
7
Pushbutton actuator (Edit)
8
Pushbutton actuator (left arrow)
5.3
Function
The electric cylinder unit converts the rotary motion of the mounted motor into a linear motion of the
non-rotating piston rod. The lead screw converts the torque of the motor into a feed force. The linear
movement of the piston rod is guided by the guide in the guide ring.
6
Transport
NOTICE
Unexpected and unbraked movement of components
• Secure moving components for transport.
