6
Festo — ELGS-BS — 2023-11e
Transport
5.2.1 Product design
2 3 4 5 6 71

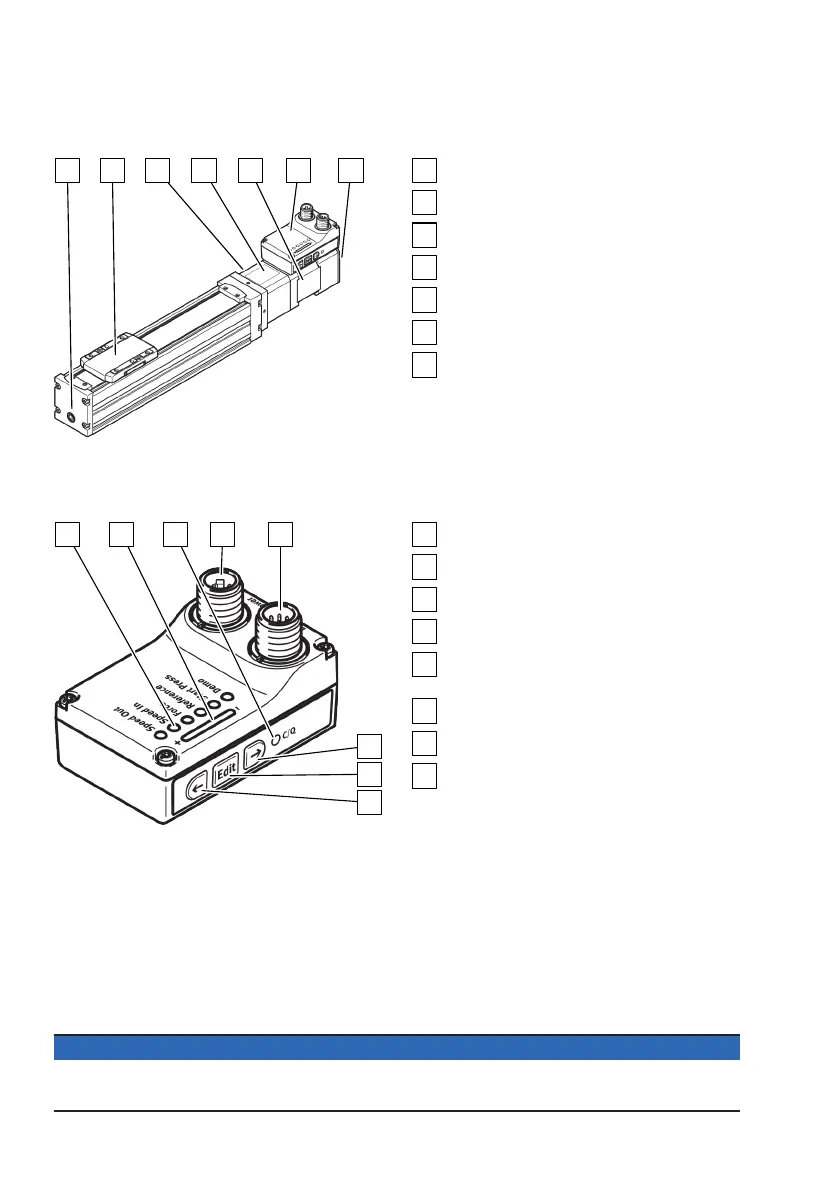

Fig. 3: Product design ELGS-BS, example with
axial kit
1
Sealing air connection
2
Spindle axis ELGC-BS
3
Axial kit EAMM-A
4
Product labelling
5
Integrated drive EMCS-ST
6
Controller housing
7
Warning symbol "Attention! Hot surface"
Electrical connections, display elements and HMI control elements
1 2 3 4 5
6
7
8
Fig. 4: Electrical connections, display elements
and HMI control elements
1
LED display menu (Speed Out, ..., Demo)
2
LED parameter display
3
LED C/Q
4
Load voltage connection [Power]
5
Logic voltage connection and digital I/O or
IO-Link connections [Logic]
6
Pushbutton actuator (right arrow)
7
Pushbutton actuator (Edit)
8
Pushbutton actuator (left arrow)
5.3
Function
The spindle axis unit converts the rotary motion of the mounted motor into a linear motion of the slide.
The screw drive converts the torque of the motor into a feed force. The linear movement of the slide is
precisely guided by the guide.
6
Transport
NOTICE
Unexpected and unbraked movement of components
• Secure moving components for transport.
