16
Each ADAT interface can transfer eight channels at SMUX/1. When using SMUX/2 the
channel count reduces to 4. Since the PULSE16 is equipped with four ADAT interface In/
Out pairs, transfer of all analog 16 input and 16 output channels is still possible.
SMUX/4 (up to 192kHz) is only enabled when the MADI MX upgrade is installed. In this
case only two channels are transferred over a ADAT cable, resulting in 8 input and 8
output channels in total, unsing the four interface pairs.
Frequency ADAT channels in+output
32kHz | 44,1kHz | 48kHz (SMUX/1) 32+32
64kHz | 88,2kHz | 96kHz (SMUX/2) 16+16
128kHz | 176.4kHz | 192kHz (SMUX/4) 8+8*
* SMUX/4 is only available if the MADI MX upgrade is installed
PULSE16 I/O’s – MADI (MX) (optional)
MADI is a professional audio interface format which can transfer 64 channels over up to
2 kilometers in multi-mode.
Connect several MADI devices in series by putting them in a daisy chain. This means that
you connect the output of the first device to the input of the second device. The output
of the second device will be connected to the input of the third device and so on. So, you
can daisy-chain up to four units to transmit 64 analog inputs and 64 outputs at 48kHz.

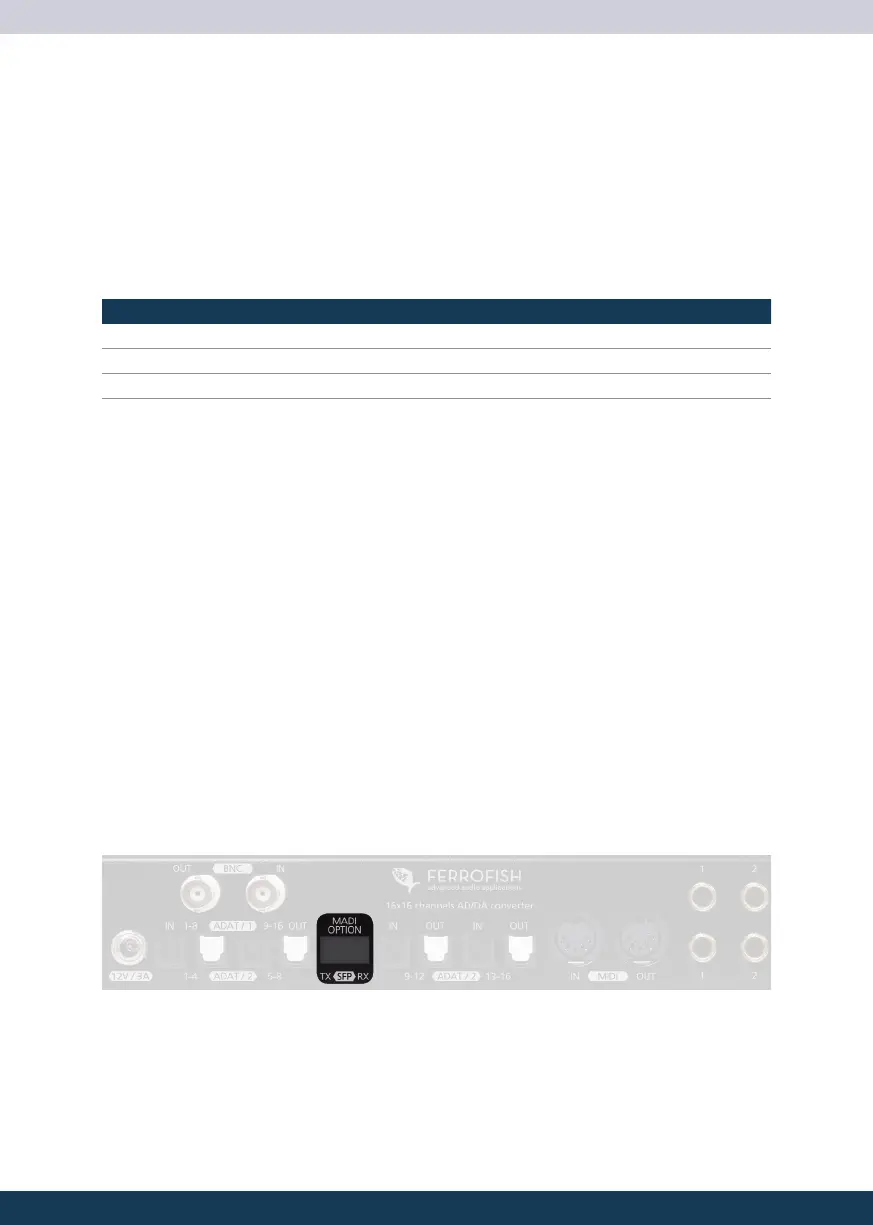

The PULSE16 MX features an optical MADI-SFP connector. To connect other MADI devices,
you can use a LC – SC cable.
When using sample rates higher than 48kHz, channels are bundled to transport that
higher data rate. As a result, the maximum number of transferrable channels is reduced.
The following chart shows the amount of digital audio channels for a single MADI port:
