Operation

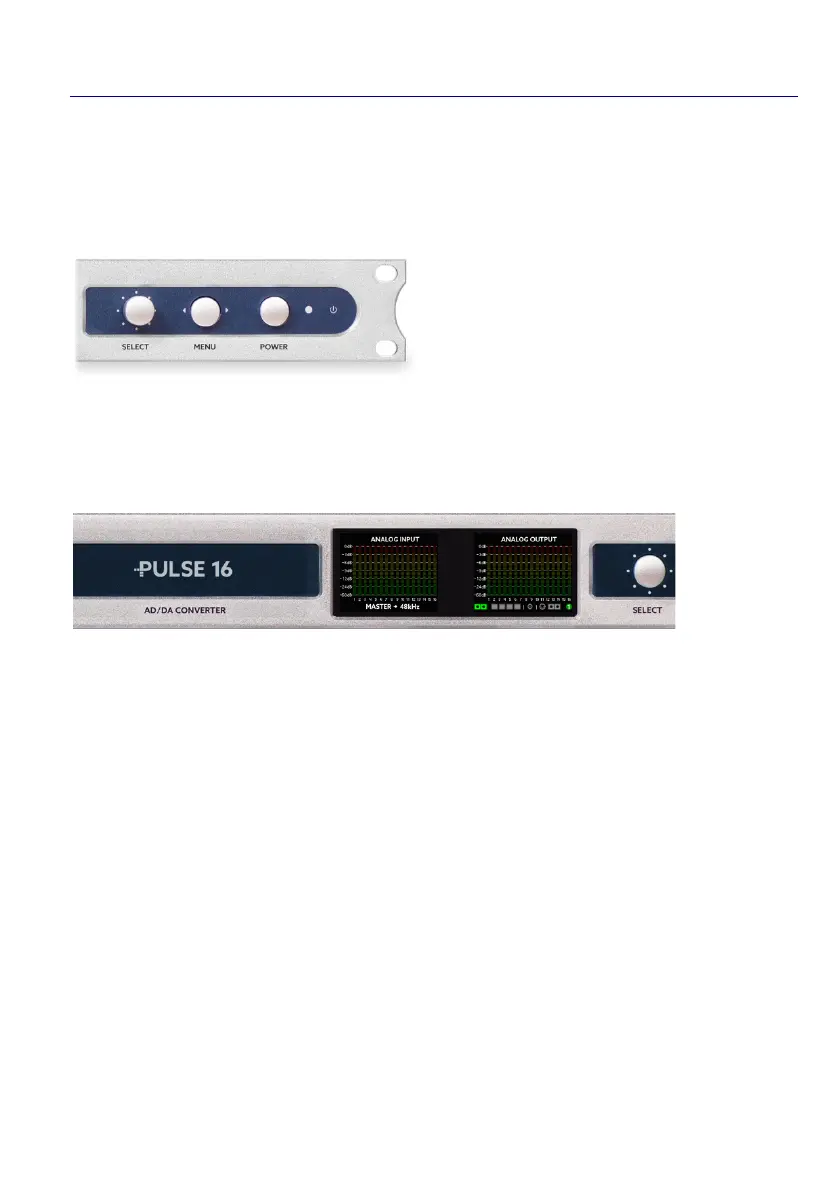

The PULSE16 can be operated completely from the front panel by using the
SELECT pot and the MENU button. The POWER button can be used as a
“home button” and for switching the unit on and off. For switching it off,
keep the button pressed for over 3 seconds. When you do, a countdown
will be shown on the screen to
prevent accidentally shutting down
the unit. You can control the
PULSE16 over the integrated
5-pin MIDI Port or via
MIDI-over-MADI (MX or MADI option only).
The main screen shows the levels of all 16 analog inputs and outputs as
well as important status information. Press POWER to get back into this
screen from every sub menu.
The status bar below the level I/O’s show:
• Wordclock sync source and sample frequency
• MADI I/O (MX or MADI option only): grey = no connection,
yellow = signal detected, green = locked on sample frequency
• Status of the ADAT inputs 1-4. Same color coding like MADI.
• BNC Wordclock Input
• MIDI input indicator
• MIDI-over-MADI I/O (MX or MADI option only)
• Active preset number
The sync master port (ADAT, BNC or MADI) highlighted.
