5
ATTENTION: The unit produces heat. Leave at least 1RU free above
and below the unit to ensure sufficient ventilation.

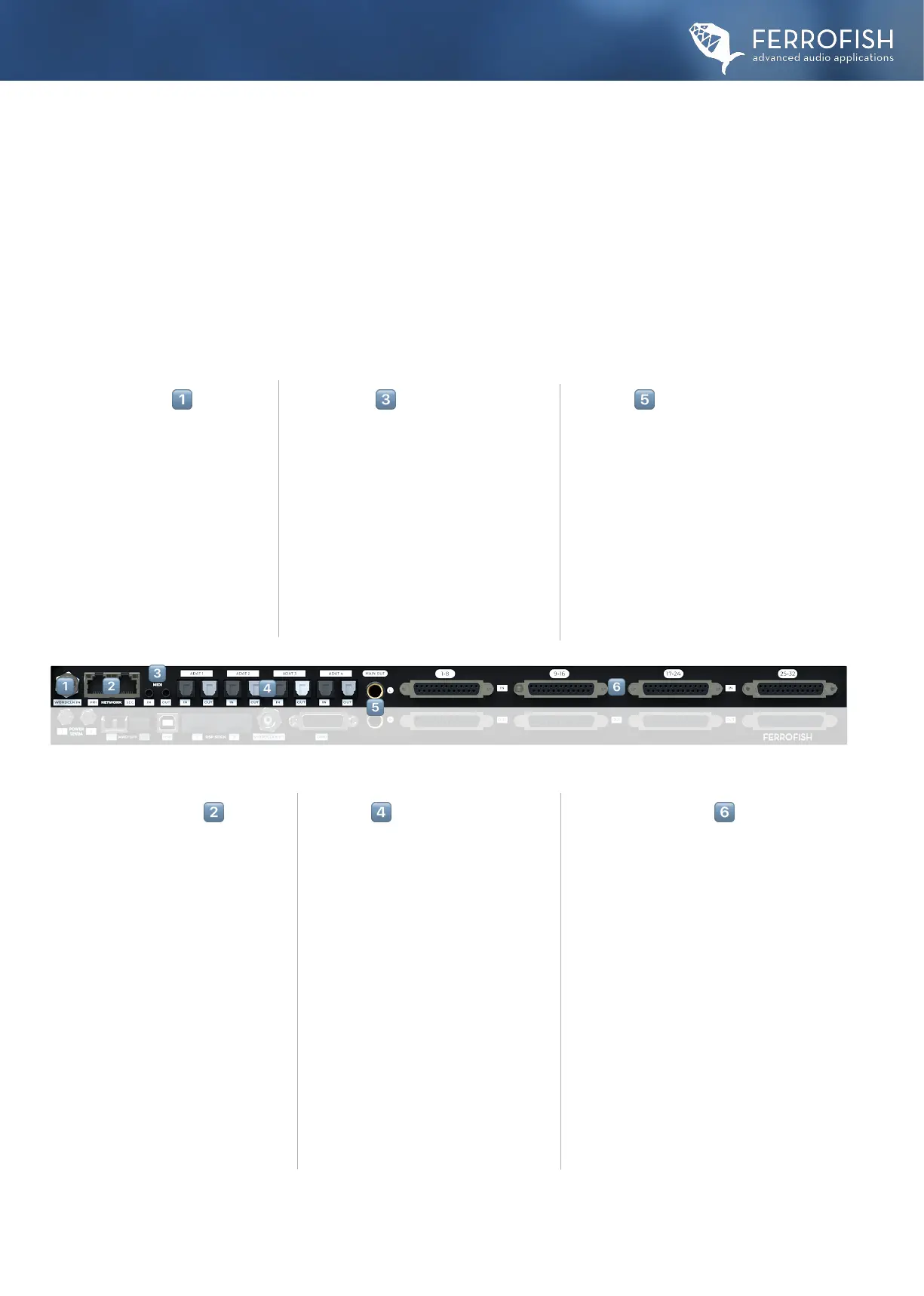

Back View I
A32pro Series Manual: Back View I
The connections on an A32pro Dante are explained below. Differences to the A32pro are indicated with an asterisk. (* A32pro Dante only)
MIDI IN/OUT !
The MIDI inputs and outputs are provided in
1/8“ (3.5mm) jack sockets. Adapters to 5-pin
DIN plugs are available in stores or from the
FERROFISH online-webshop. The pinout
corresponds to the MIDI 2.0 (Type A)
specification. This can be used to remotely
control the unit or to update the firmware.
Remote control is either possible via the
RemoteFish app or MIDI CC Control Mode.
NETWORK Pri/Sec Dante* "
The Dante interface allows seamless
integration into existing Dante audio
networks, which are based on normal
network data traffic (Layer3).
At higher sample rates, Dante also
reduces the number of channels to be
transmitted to 32x32 channels at double
sample rates (SMUX/2, up to 96k) and to
16x16 at quadruple sample rates
(SMUX/4, up to 192k). Furthermore, the
Dante interface offers redundancy
connectivity to increase transmission
security. For more details, please visit:
www.audinate.com.
WORDCLOCK INPUT #
The wordclock input is responsible for
receiving a clock from other digital
devices, when"BNC" is selected in the
clock source menu. The A32pro Dante
can then be used in a network of several
digital devices, as a wordclock slave/
follower from an external wordclock
signal.
ADAT I/O $
The A32pro series has four ADAT input
and output pairs of optical TOSLINK
ports to transport all 32x32 channels
at single sample rates (SMUX/1, up to
48kHz). The maximum cable length is
5m. When transmitting sample rates
higher than 48kHz, the number of
available channels is reduced by half
(16x16) up to 96k and by half again
(8x8) up to 192k.
The sockets with the bright-colored
flap are the ADAT outputs,
the sockets with the black flap are the
ADAT inputs.
MAIN OUT %
A MAIN OUT connection in the form of two
balanced 6.3mm (1/4“) jacks is provided for the
quick connection of devices such as studio
monitors or analog stereo recording devices. The
main out mirrors the signal of the red
headphone output. The volume is thus
controlled via the headphone menu.
The MAIN OUT accepts balanced and
unbalanced devices.
ANALOG INPUTS (1-32) &
Due to the compact housing, the
analog inputs are in dSub25 (or db25)
format. The pin assignment
corresponds to the Tascam format.
The maximum input level is +20dBu.
All inputs are fully balanced.
Fitting breakout cables are available
in stores or from the FERROFISH
webshop.
#
"
!
$
%
&
