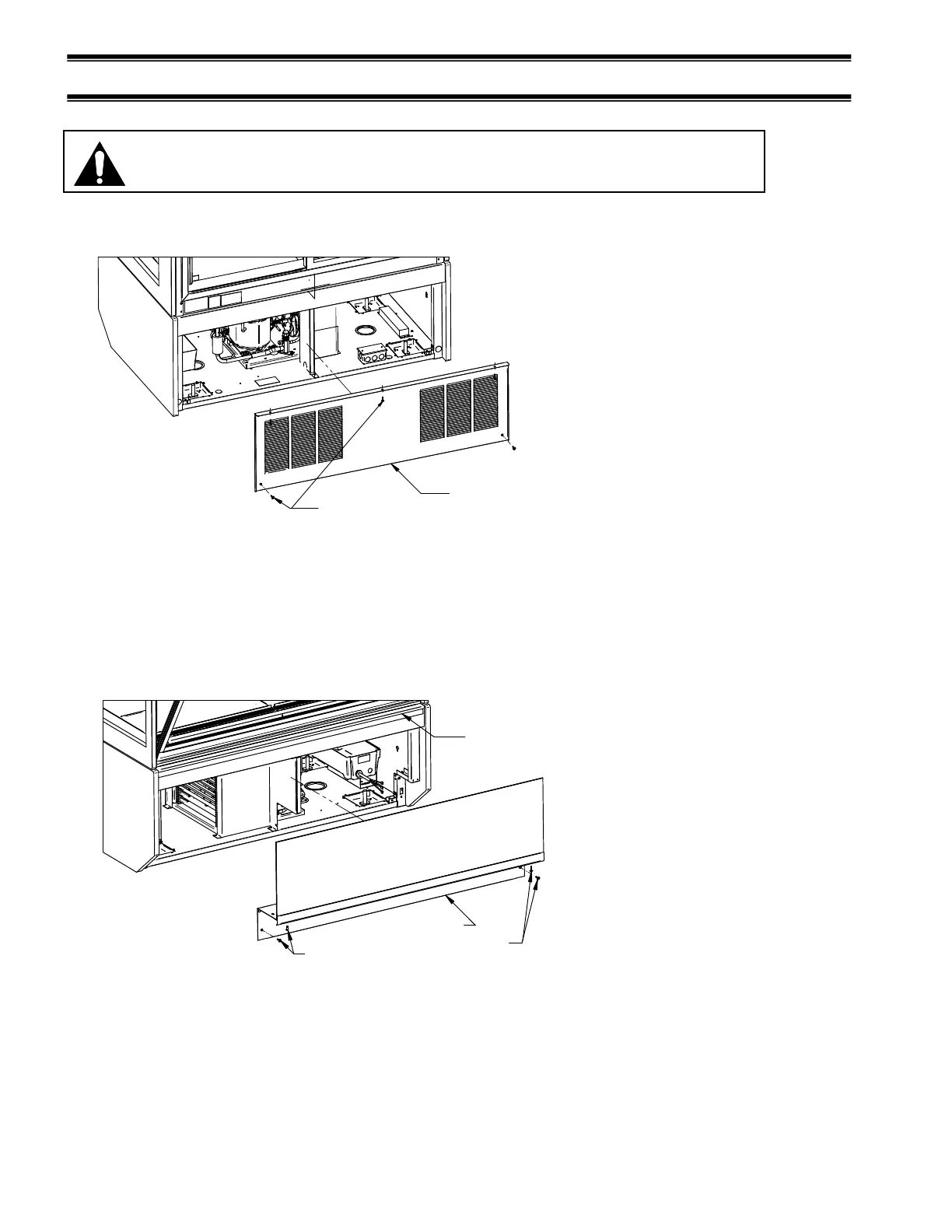

COMPARTMENT PANEL REMOVAL
Refrigerated Floor Base Models Back Panel (No Back Panel on Non-Refrigerated Models)
REAR BASE PANEL
REAR BASE PANEL
SCREWS
1. Disconnect power to Display Case.
2. Remove Philips head screws located in each lower corner of panel.
3. Remove Philips head screws located on top of panel under the base cross member.
4. Pull top of panel outward until lip on bottom of panel clears bottom of base and remove from case.
Refrigerated and Non-Refrigerated Base Models Front Panel
FRONT PANEL
SCREWS
FRONT PANEL
FRONT PANEL
SCREWS
TOP PANEL
RETAINER
1. Disconnect power to Display Case.
2. Remove (2) front panel phillip head screws from each lower corner of front panel (1) is located on
front of panel and the other under the recess behind trim strip. Do not remove the screws holding
trip strip to front panel.
3. Slide the front panel down until it slides out of the top panel retainer lip at the top of the panel.
4. Install panel in reverse order.
DANGER: Electric shock hazard. Do not operate unit with panels removed.
