25
-
Cabinet Grills &Air Duct (All refrigerated self-contained and remotes with condo pan)
IMPORTANT: Federal Industries reserves the right to deny warranty if the cabinet is not ducted to
allow proper condenser and condensate air intake and discharge, or if the cabinet louvers are not
installed properly, or if condenser air intake and discharge air is blocked or located near a source of
heat.
The condenser air intake and discharge must be separated and vented out of the cabinet compartment for
case to operate. The required louver grills and expandable ducts for both intake and discharge are provided
with case. On Remotes, the louvers are required to vent the moist condensate air.
Note: The louvered panels mounted to condenser compartment are located on the back of the compartment
and solid panels are mounted to front of the compartment when shipped from factory. This set up is for air
intake and discharge out of the back of the cabinet. The intake and discharge louvered panels can be moved
to front of compartment and the solid panels moved to the back of compartment if air intake and discharge
is required out of front of cabinet

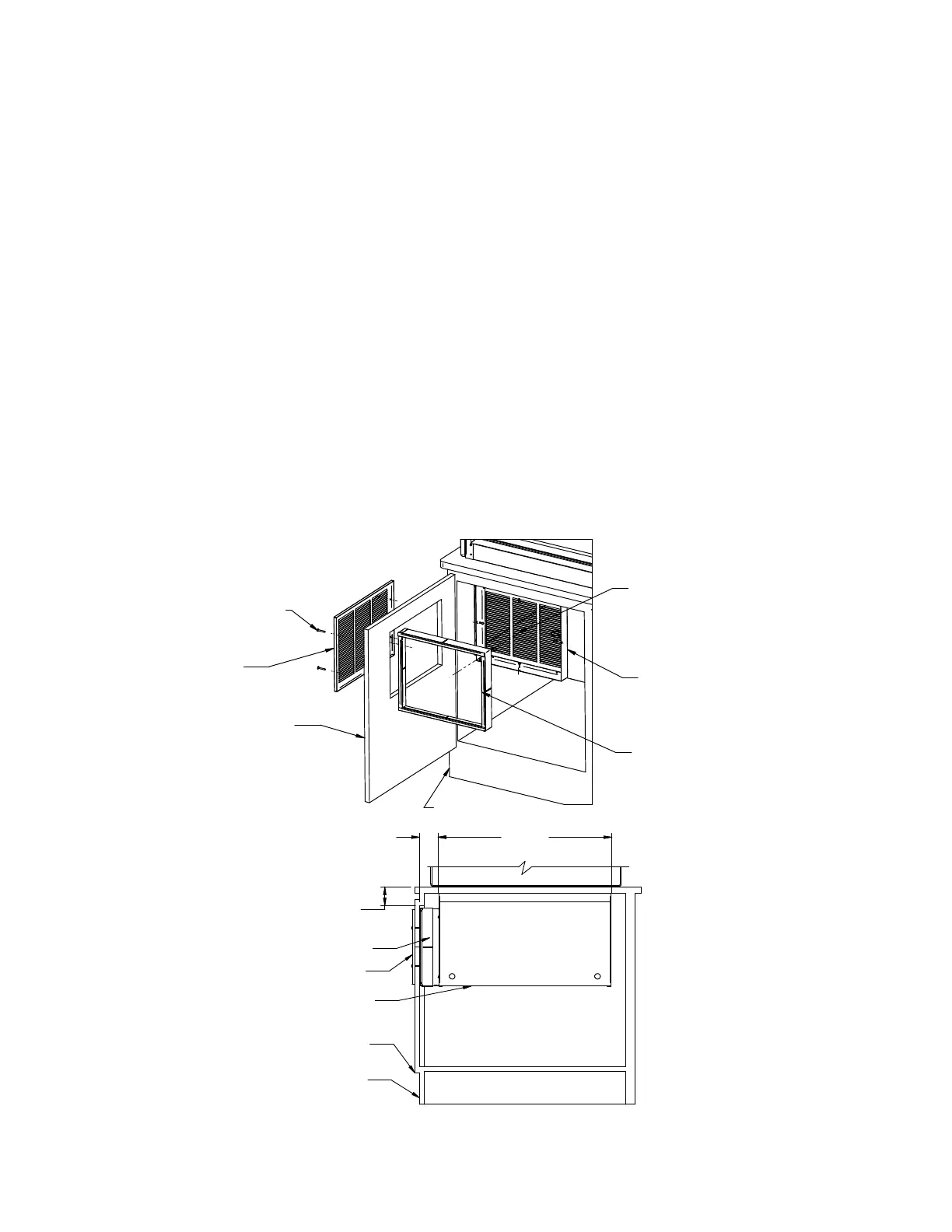

The Outer Duct must be adjusted so that the gasket seals against the Cabinet Door. Remove the (4) screws
located inside of the Outer Duct. There are multiple holes in the Outer Duct. Move Outer Duct to desired
depth and reinstall (4) screws. Open & close door and be sure Gasket seals hits door
Center the supplied Grills on outside of Cabinet Doors and mark holes onto doors. Drill 1/8 holes into door
in marked positions. With Grill flanges against door screw Grill to cabinet door with (4) supplied #8 x1-1/4
screws.
DROP IN
REFRIGERATION
COMPARTMENT
LOUVERED PANEL
GRILL
CABINET
CABINET DOOR
SCREW,#8 X 1.25"LG
OUTER DUCT
WITH GASKET
INNER DUCT
DUCT ASSEMBLY
DROP IN
REFRIGERATION
COMPARTMENT
GRILL
CABINET
CABINET DOOR OR
REMOVABLE PANEL
SIDE VIEW
2.00 TO 3.25
FROM TOP CUT OUT
TO INSIDE OF DOOR
27.38
CUT OUT
3.00 MAX
FROM TOP TO
DOOR CUT OUT
