27
-

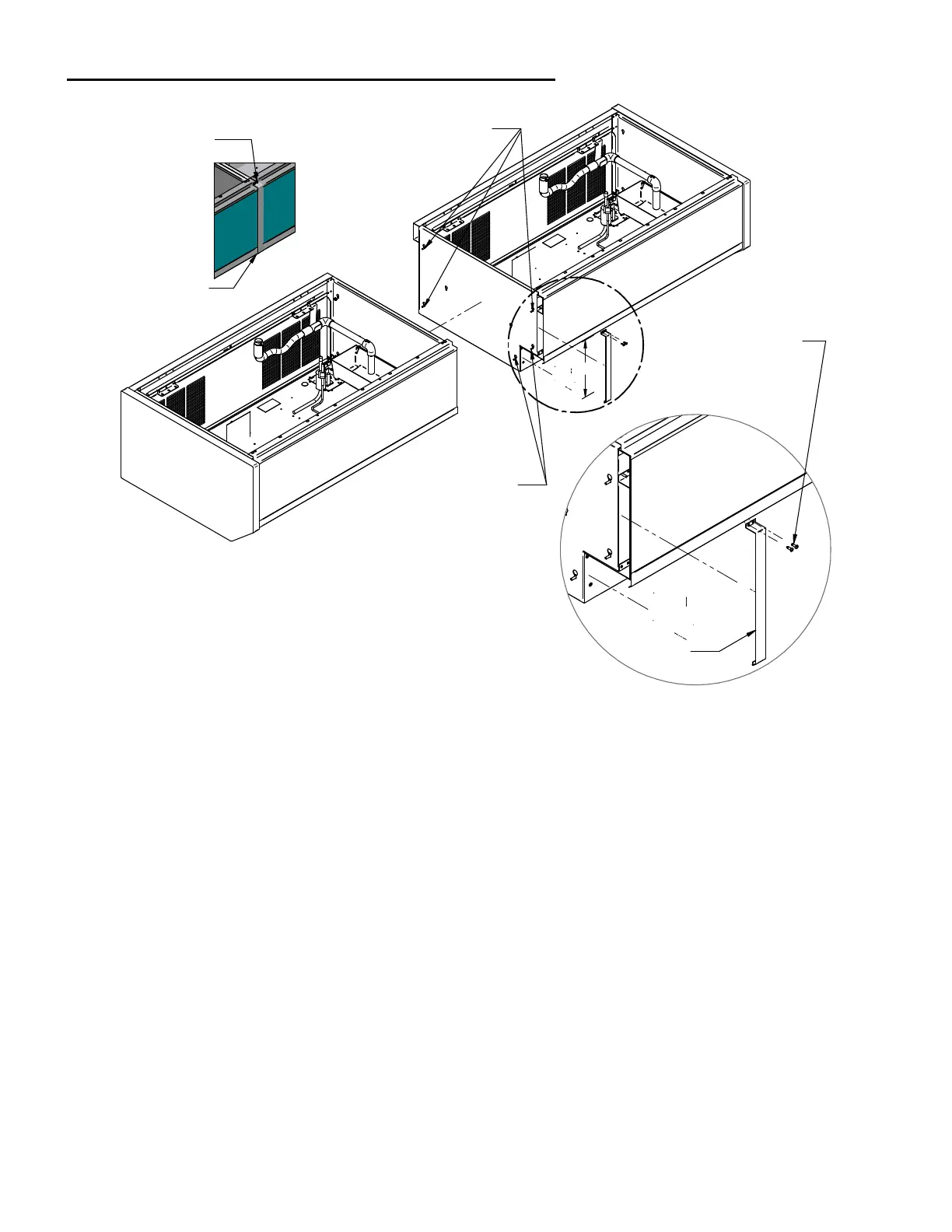

Joining Floor Model Bases (No End Panels Between)
DETAIL A
11.5
ALIGN FRONT OF BASES AND
ATTACH WITH (5) 10-32 SCREWS
AND NUTS.
ALIGN BASES AN ATTACH
BASES TOGETHER WITH
(5) 10-32 SCREWS AND NUTS.
HOOK JOIN TRIM
ON BOTTOM LAMINATE
TRIM
DRILL (2)
O
.141 (9/64)
HOLES IN CASE AND ATACH
TRIM WITH (2) SCREWS.
A
DRILL (2) 9/64 HOLES
INTO BASE AND ATTACH
TRIM JOIN STRIP WITH (2)
8/32 SELF TAPPING SCREWS
TRIM JOIN STRIP
BASES ARE SHOWN WITH
NO CASE ON TOP
1. The cases are joined in the same manner as described in previous
Joining Cases section, but the bases will also need to be joined.
2. Push cases together and align front and rear of cases.
3. Remove the base front and back panels as described in Refrigeration Compartment Panel Removal
Section.
4. Push cases together and align front and rear of cases and bases. If there is a miss-alignment between
cases and the bases, it may be necessary to loosen the screws holding the case to the base. The
mounting brackets are located inside the top of the base and there are (2) in the front and (2) in the
back. This will allow slight adjustment to improve alignment. Retighten these screws once components
are properly aligned
5. Attach the cases together using (5) 10-32 screws and nuts provided. Attach in the (5) Key slot location
shown in above diagram. There are no fasteners used on the (2) center key slots.
6. Tighten all joining screws and nuts in base and case at this time.
7. Trim the front of base by hooking Base joining trim strip under base valance and up over the top of
base trim.
8. Mark the base in the location of the top holes in the base join trim strip. Drill (2) 9/64 holes in base and
fasten base join trim strip to base using (2) 8-32 screws provided. Attach Join Trim Strip with (2) 8-32
self-tapping screws.
