23
-
ITR Refrigerated Models Cabinet Mounting
Cabinet Preparation
The ITR models have a large compartment hanging from the bottom of case. On the Self-Contained models
it contains the condenser and condensate evaporator, on the Remotes it contains the condensate pump or
condensate evaporator and fan. This compartment hangs inside the cabinet compartment and the interior of
the cabinet must be open to allow space for this compartment.
Cabinet Cutout
The countertop must be cut to allow the case’s base and condenser compartment to drop into the cabinet
interior. On refrigerated self-contained and remotes with optional condensate pan the Grill cut outs must be

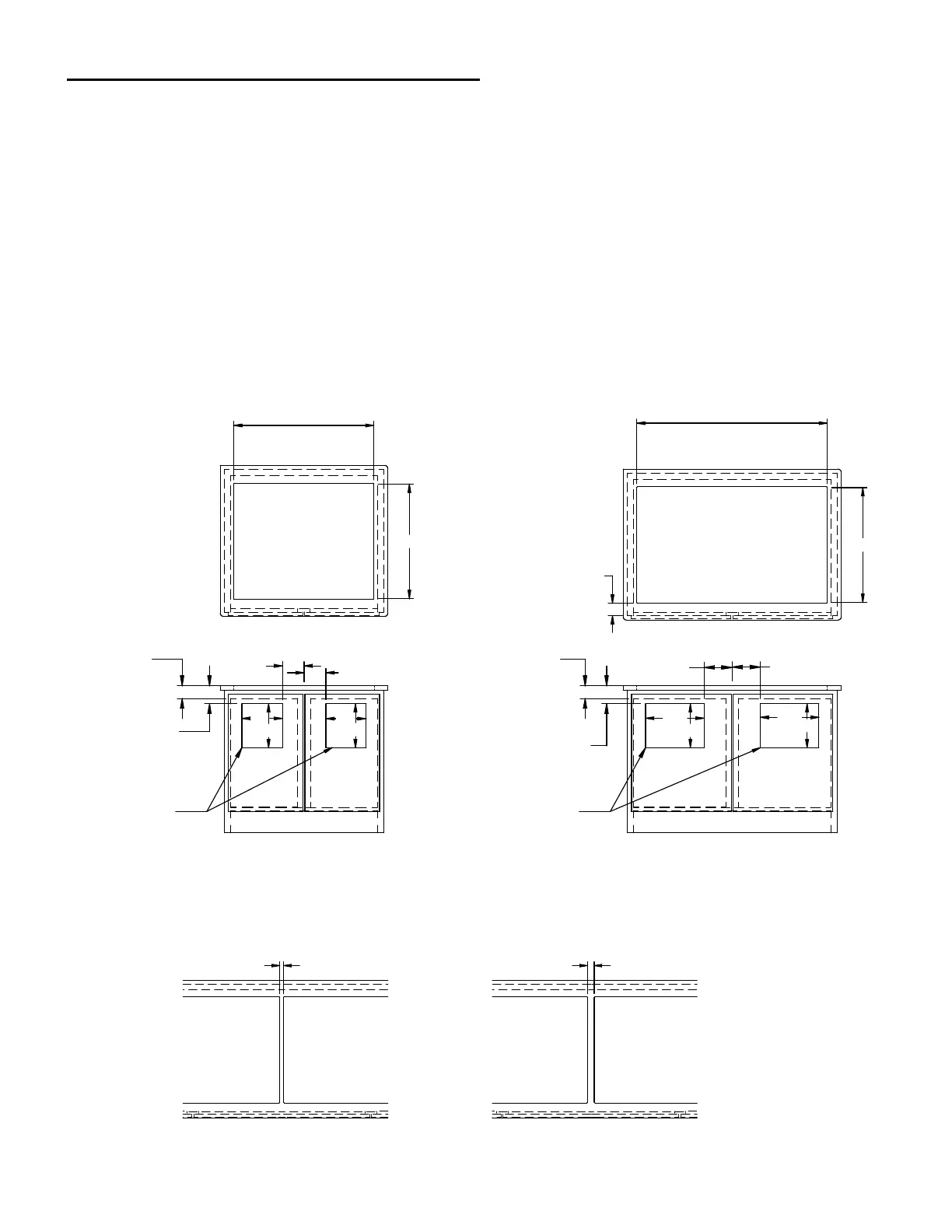

cut in back of cabinet to allow air flow in and out of refrigeration compartment. Use the diagram below for
cutout dimensions.
IMPORTANT: When placing cases in a line up the number of end panels used will be different. The cut
out and hole placement dimension will need to be adjusted for each particular line up circumstance. See
Continues Line up drawing below.
27.37
2.00" TO 3.5" REF FROM TOP
CUT OUT TO BACK OF DOOR
ITR 48" WIDE 45.5"
ITR 60" WIDE 57.5"
TOP CUT OUT
GRILL CUT OUTS
C
L
FRONT
BACK
BACK
3.00 MAX
FROM TOP TO
DOOR CUT OUT
14.0
10.5
10.5
14.0
4.25 FROM TOP OF
COUNTER TO TOP OF
GRILL CUTOUT
6.7
6.7
GRILL CUT OUTS
L
BACK
3.00 MAX
FROM TOP TO
DOOR CUT OUT
9.6
10.5
4.25 FROM TOP OF
COUNTER TO TOP OF
GRILL CUTOUT
9.6
10.5
5.2
5.2
C
ITR 36" WIDE 33.5"
27.37
TOP CUT OUT
FRONT
BACK
CENTER TOP CUTOUT
WITH CENTER OF REAR DOORS
CENTER TOP CUTOUT
WITH CENTER OF REAR DOORS
OF CUT OUT
OF CUT OUT
Continues Line Up Cut Outs (Note: Dry Cases do not require cut out in counter)
CASES WITH NO CENTER
GLASS BETWEEN CASES
1.00
BETWEEN CUT OUTS
CASES WITH (1) 3/4" CENTER
GLASS BETWEEN CASES
1.75
BETWEEN CUT OUTS
LOCATE REAR GRILLS
AS SHOWN IN THE BACK VIEW
DIAGAMS ABOVE.. USE THE
CENTER OF CUT OUT TO
LOCATE GRILLS..
LOCATE REAR GRILLS
AS SHOWN IN THE BACK VIEW
DIAGAMS ABOVE.. USE THE
CENTER OF CUT OUT TO
LOCATE GRILLS..
LOCATE REAR GRILLS
AS SHOWN IN THE BACK VIEW
DIAGAMS ABOVE.. USE THE
CENTER OF CUT OUT TO
LOCATE GRILLS..
LOCATE REAR GRILLS
AS SHOWN IN THE BACK VIEW
DIAGAMS ABOVE.. USE THE
CENTER OF CUT OUT TO
LOCATE GRILLS..
