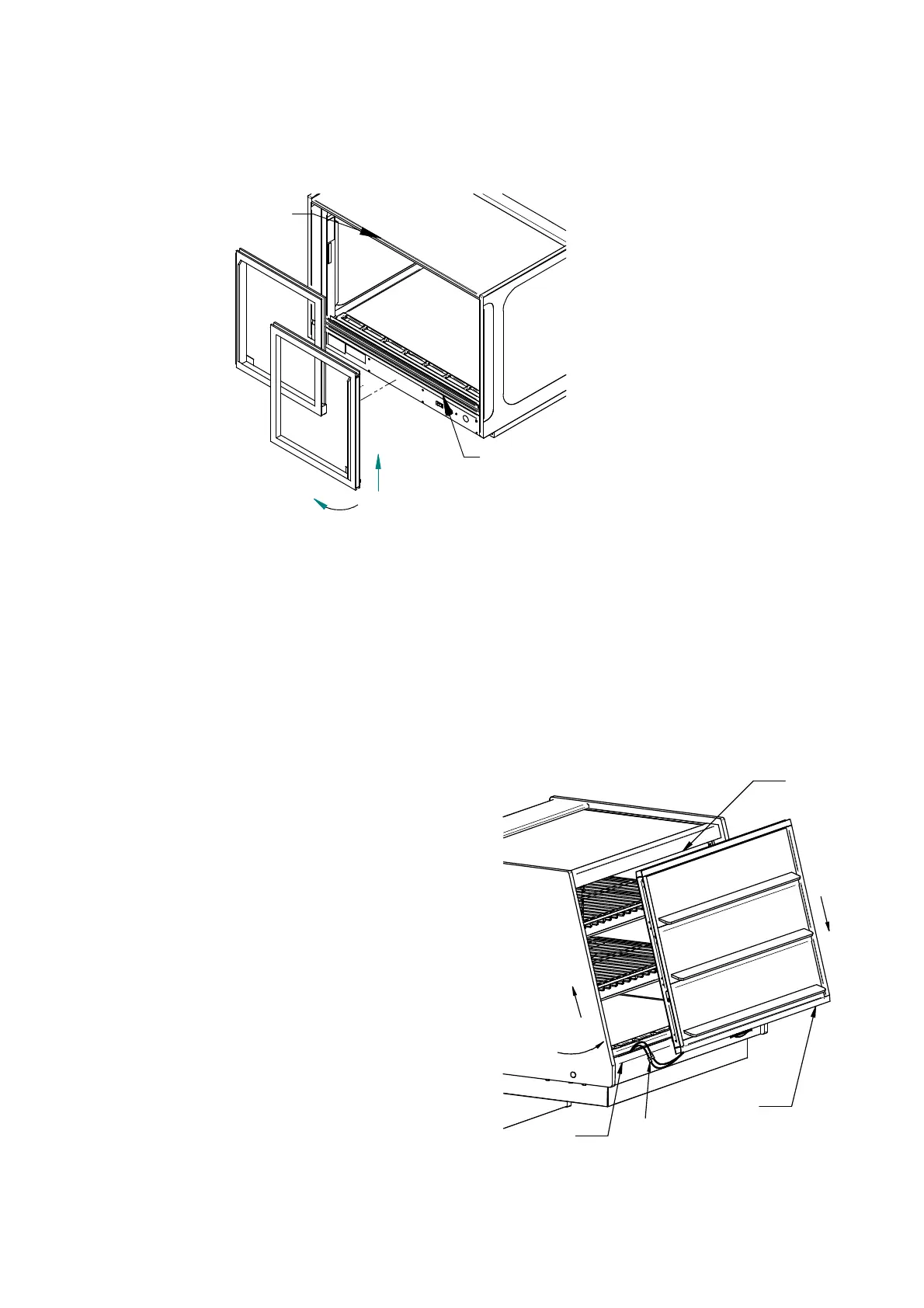

REAR DOOR REMOVAL INSTRUCTIONS
ALL SERVICE CASES & SELF SERVE
2. SWING BOTTOM OUT
1. LIFT UP
LOWER TRACK
UPPER TRACK
1. Start with the outer door and lift the door upward until the bottom edge of door clears the
lower track and then swing the bottom of the door outward and down out of upper track.
2. After the outer door is removed repeat the procedure for the inner door.
3.
Reverse this procedure for door reinstallation. The doors are not interchangeable.
Note: T Doors are not interchangeable and they must be replaced in the same location that
they where removed from.
FRONT DOOR FRAME REMOVAL INSTRUCTIONS
1
2
IMPORTANT: DISCONNECT POWER TO CASE BEFORE REMOVING
FRONT DOOR FRAME FROM CASE.
1. LIFT DOOR FRAME ASSY UP ALLOWING IT TO SLIDE UNDER
THE TOP FRONT TRIM UNTIL THE BOTTOM OF FRAME CLEARS THE
LOWER TRIM.
2. SWING THE BOTTOM OF FRAME OUT FROM OPENING.
3. DISCONNECT WIRE CONNECTORS FROM BOTTOM OF DOOR.
4. SLIDE THE TOP OF FRAME ASSEMBLY DOWN OUT FROM UNDER
TOP TRIM.
4
3
TOP TRIM
BOTTOM TRIM
DOOR FRAME
ASSEMBLY
