INSTALLATION

DM-C8208

DM System falls into three different types of group, product installed on

a rack, product installed on the wall and software. Please review below

contents according to type of group.

1. Please turn o the power of the whole system and install it.

2. Connect the output line of the product (DM-C8208) to the main am-

plier input (HOT), (COM).

3. When using the auxiliary amplier, connect the output line of the

product (DM-C8208) to the auxiliary amplier input (HOT), (COM).

4. Please ensure that ventilation slot are not obstructed by other de-

vices.

DM-P8208

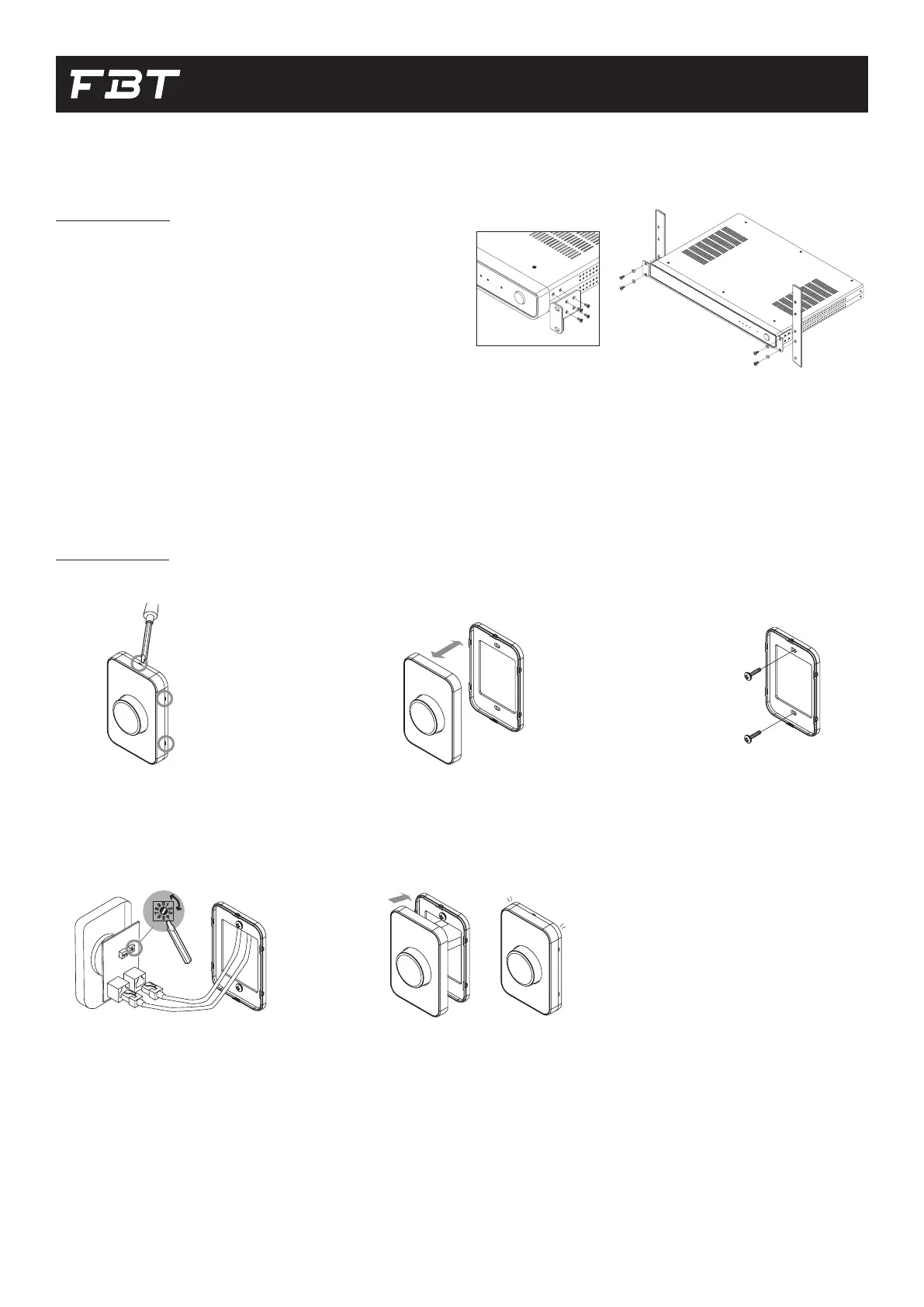

After removing the screws of the product, attach the bracket as shown in

the gure and tighten the screws again.

1. Open the groove marked with

a small fat screwdriver.

3. With screws, attach it to the

switch box which is embedded on

the wall.

4. After setting the ID number on

the back of the board as shown

in the gure, connect the RJ45

cable on the wall to the front

LINK jack.

5. After connection, afx it to the

plate attached on the wall.

2. Remove the rear plate.
