GB-18

ENGLISH

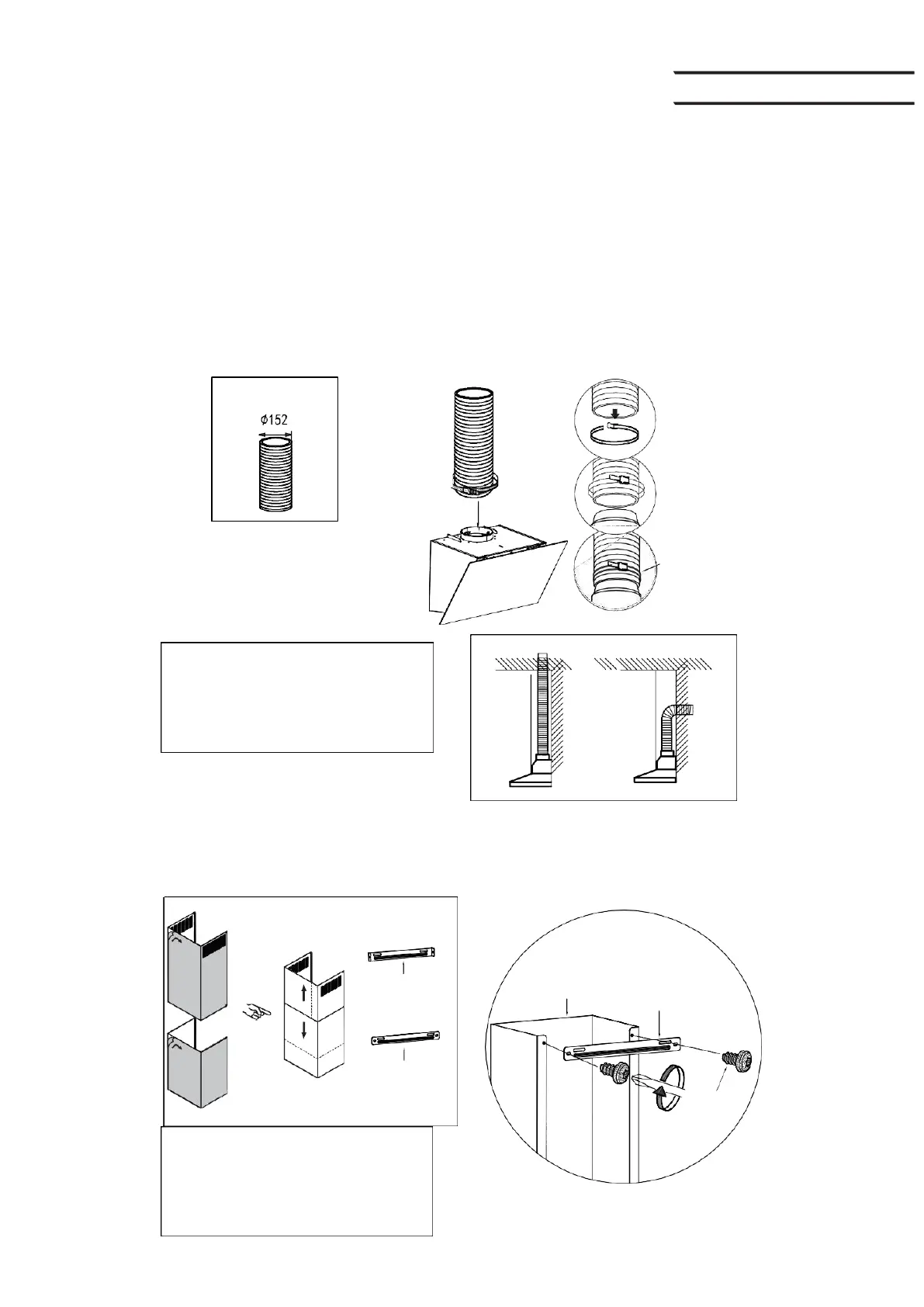

10)Install the Aluminum Exhaust Pipe into the air

outlet and lock it with a Cable Tie; the other

end of the Aluminum Exhaust Pipe will be

pulled upward to outdoor and lock it with a

Cable Tie (Note: This step can be ignored if

use as recirculation mode with carbon filter).

Cable Tie

provided with an

Aluminum

tape&a Cable

Tie to fix the

aluminium pipe.

11)Use two 4*8mm Screws to fasten the Lower

Chimney Bracket on the Lower Chimney.

Upper Chimney

Upper

Chimney

Bracket

Lower

Chimney

Bracket

Lower Chimne

COMPONENTS:

Part 7: Lower Chimney Bracket X 1

Part 10: Lower Chimney X 1

Part 3: 4*8mm Screws X 2

Lower Chimney

Lower Chimney

Bracket

4*8mm

Screws

COMPONENTS:

Part 4: Aluminum Exhaust Pipe X 1

P art 5: Cable Tie X 1

Part 12 : Aluminum tape X 1

Aluminum —

Exhaust Pipe
