- 6

Intellicomfort CH121E

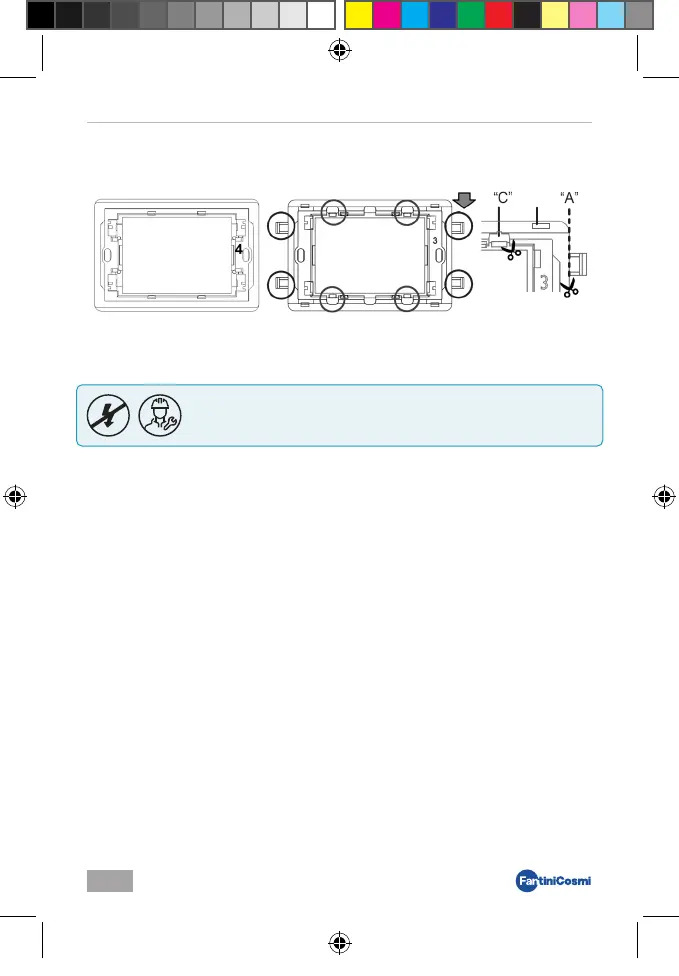

cut 8 or 12 tabs

according to type of cover plate

PERFORM THE FOLLOWING OPERATIONS:

1. act on the master switch on the electric panel to cut power to the electrical

system;

2. when required, detach the tabs according to the type of plate;

3. fasten the thermostat to the suitable frame;

4. mount the cover on the body of the thermostat.

5. connect the two wires of the boiler to terminals 1-2 of CH121E;

6. screw the frame onto the box using the provided screws;

7. mount the plate;

8. switch the electric system back on.

“D”

Frame n. 4 (optional) Frame n. 3

Installation and maintenance operations must be carried out

with the system's electrical power switched off and by qualified

personnel, in compliance with the regulations in force.

CH121E istruzioni EN 5680075.indd 6CH121E istruzioni EN 5680075.indd 6 15/11/2024 12:09:2915/11/2024 12:09:29
