19
EV200RL

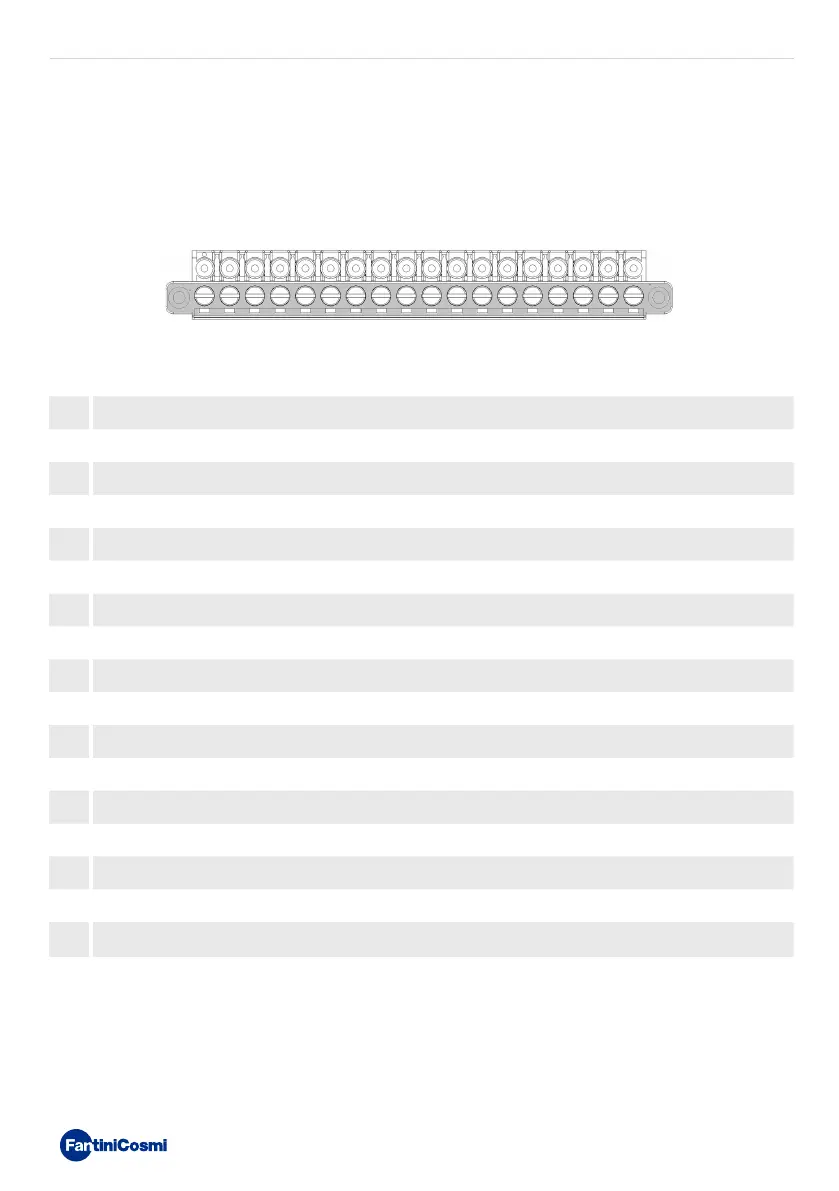

3.3 - TERMINAL BLOCK DESCRIPTION
Pay attention to the numbering of the terminals as shown in the figure:
118 1117 1016 915 814 7 413 6 312 5 2
Electrical terminal numbering:
1 Output 1
2 Output 2
3 Common for outputs 1+2
4 Output 3
5 Output 4
6 Output 5
7 Output 6
8 Common for outputs 3+4+5+6
9 Output 7
10 Common for output 7
11 DC output 0V
10 DC output 0/10V
13 Sensor input 1
14 Sensor input 2
15 Modbus communication
16 Modbus communication
17 230Vac power supply (live)
18 230Vac power supply (neutral)
Note: Electrical wiring must be carried out in accordance with the configuration settings made via the FAN BUILDER
app, previously downloaded to the smartphone.
After completing all electrical connections, close the device and restore power to the system.
