CH177RL - 1 RELAY WIRELESS RECEIVER
INSTALLATION
Wall-mounted or flush-mounted in a type 503 box.
OPERATION

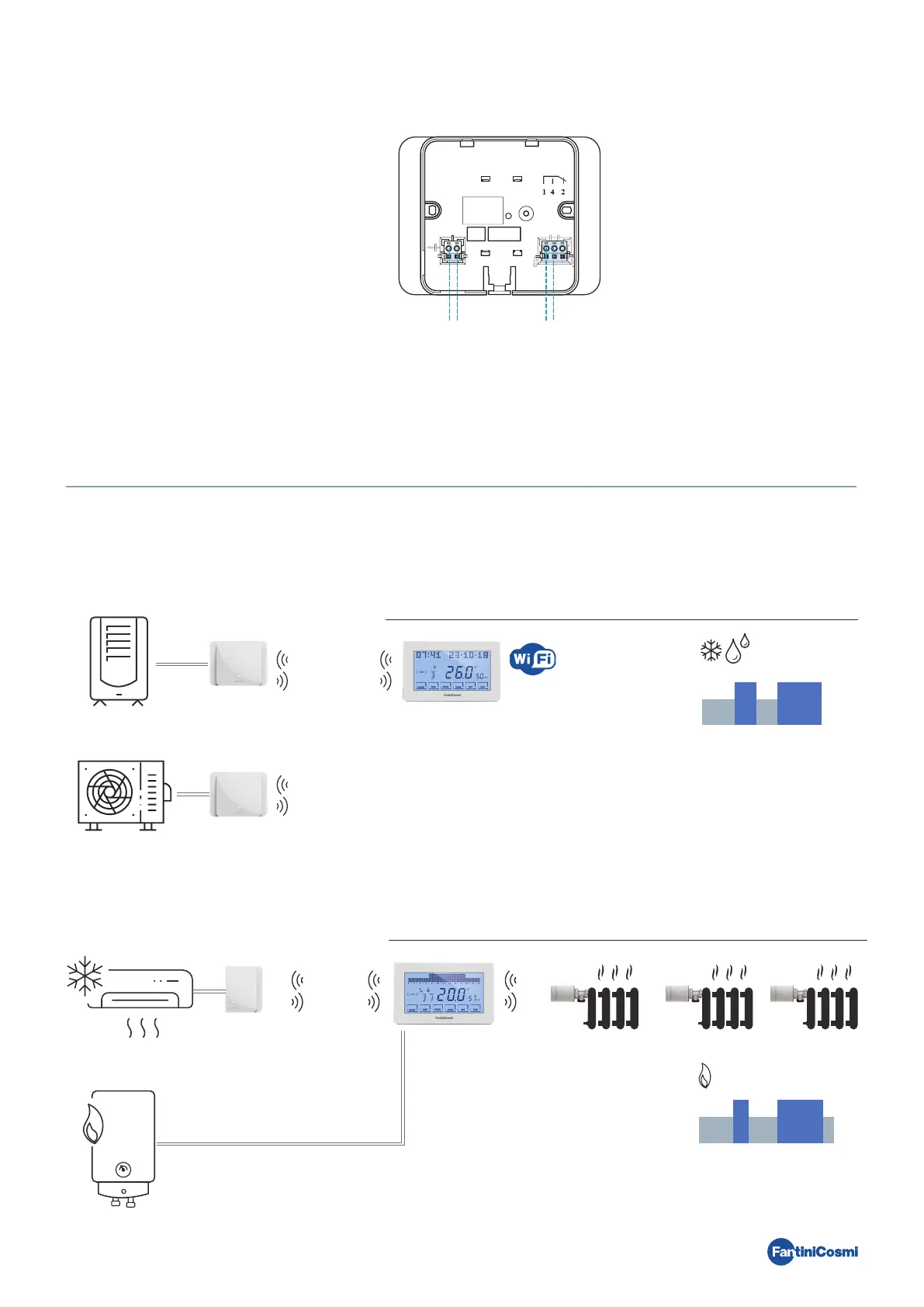

The CH177RL is an actuator module that, when connected to the wireless network of the Fantini Cosmi multi-zone system, allows remote
control of various devices such as boilers, heat pumps, zone valves, cooling systems, dehumidifiers, mechanical ventilation systems
(MVHR), irrigation systems, and other equipment.
BOILER
AIR CONDITIONER
0
14:006:00 8:00 22:00 24:00
20°C
ZONE 1
CH180WIFIRL
O70RL O70RL O70RL
CH177RL
Example 1
DEHUMIDIFIER
CH177RL
CH177RL
HEAT PUMP
ZONE 1
26°C - 50 %UR
0
14:0010:006:00 22:00
24:00
CH180WIFIRL
Example 2
4: Normally open contact
2: Normally closed contact
1: Common
230V - 50Hz
1 4 2
L N
230V~
