2.2 - CONNECTION TO THE SYSTEM
Connect the terminals 2 and 4 to the heating system.
For a correct installation, prepare a dedicated line for the bus connection.
Connection example
4: Boiler input contact
2: Boiler input contact
1: Not used
Bus cable length
20m max
Installation and maintenance operations must be carried out
with the system’s electrical voltage switched off and by qualified
personnel, in compliance with the regulations in force.
1 4 2
+ -
1 4 2
B A

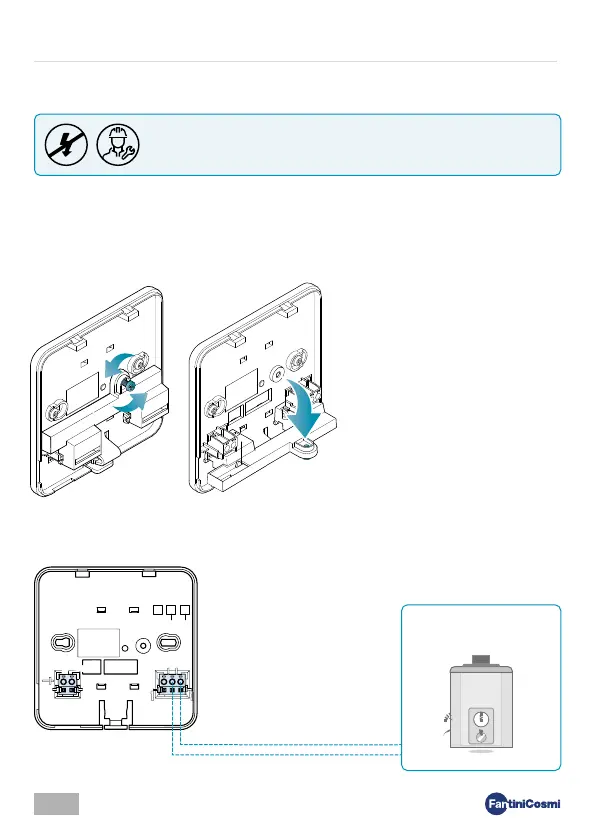

Unscrew the screw as shown in
the drawing and lower the plas-
tic cover to gain access to the
terminal block for the electrical
connections.
CONNECTION WITH BATTERY POWER SUPPLY
