5.1.2 INSTALLAZIONE A SOFFITTO
1.Montare la staffa di montaggio (A) orizzontale al soffitto, usando appropriati tasselli
2. Inserire i due adattatori di condotto (B) a ciascuna estremità della staffa di montaggio (A)
3. Assicurarsi che gli adattatori (B) siano posti a filo a ciascuna estremità della staffa di montaggio (A) e le
guarnizioni siano fissate saldamente sulla parte superiore. (C)

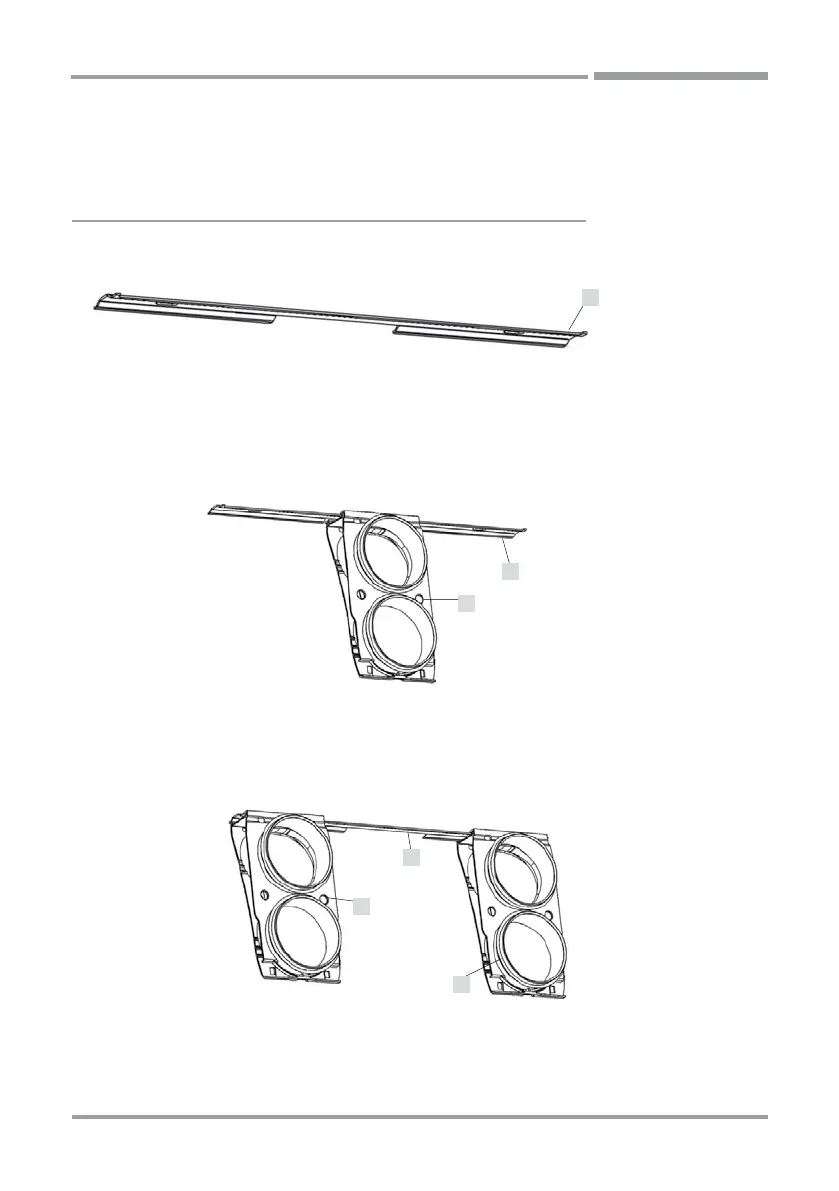

5.1.2 Ceiling mounting
a) Fit the mounting bracket
A
to the ceiling, using appropriate fixings.
b) Fit the two duct adapters
B
to each end of the mounting bracket
A
.
c) Ensure that the adapters
B
are placed flush to each end of the mounting bracket
A
and the spigot seals
C
are
secured firmly on top of each spigot.
d) Duct connections
Only stale air to outside and fresh air from outside on the right is possible.
