Assembly
40

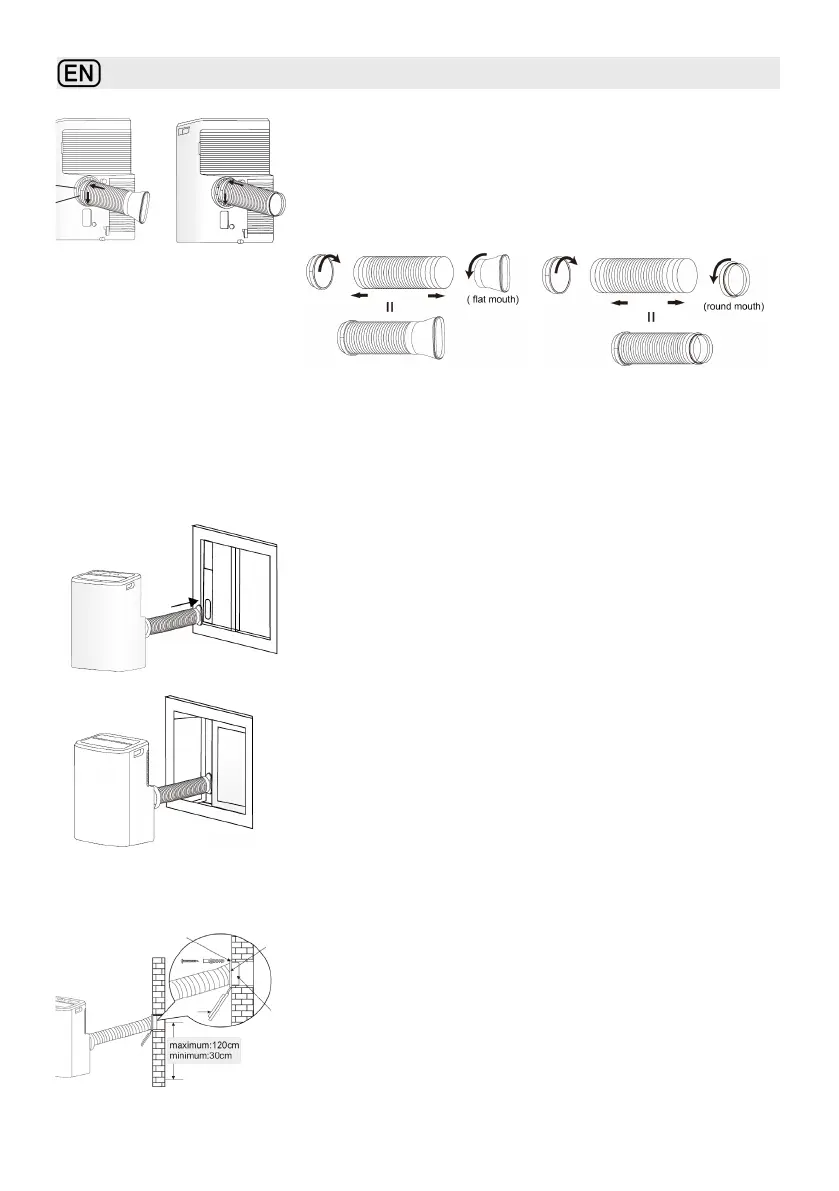

Connect the exhaust duct to the air outlet connector
on the back of the unit. Slide in the adaptor A down-
wards until it is locked in place.
Install window adaptor B (Fig. 1) or wall adaptor C
(Fig. 2) onto the exhaust duct..
If you use a wall bushing, set the wall exhaust adapt-
er D (Fig. 5) into the hole in the wall with screws and
screw sleeves (not included) to x it thoroughly and
open the adaptor cap. Connect wall adaptor C (round
mouth, Fig. 6) with the exhaust duct and set adaptor C
into the opening of adaptor D.
Connect adaptor B (at mouth) with the window slider
kit you installed into the window frame (Fig. 3). This is
possible both vertically and horizontally. You can also
insert the slider kit horizontally and then lower the
shutter down to the edge.
If your window is not compatible with the slider kit, di-
vert the exhaust air through the slightly open window
(Fig. 4).
Install the exhaust duct
into the window
or1 2
3
4
Install the exhaust duct
into the wall
5
6
Window Wall
