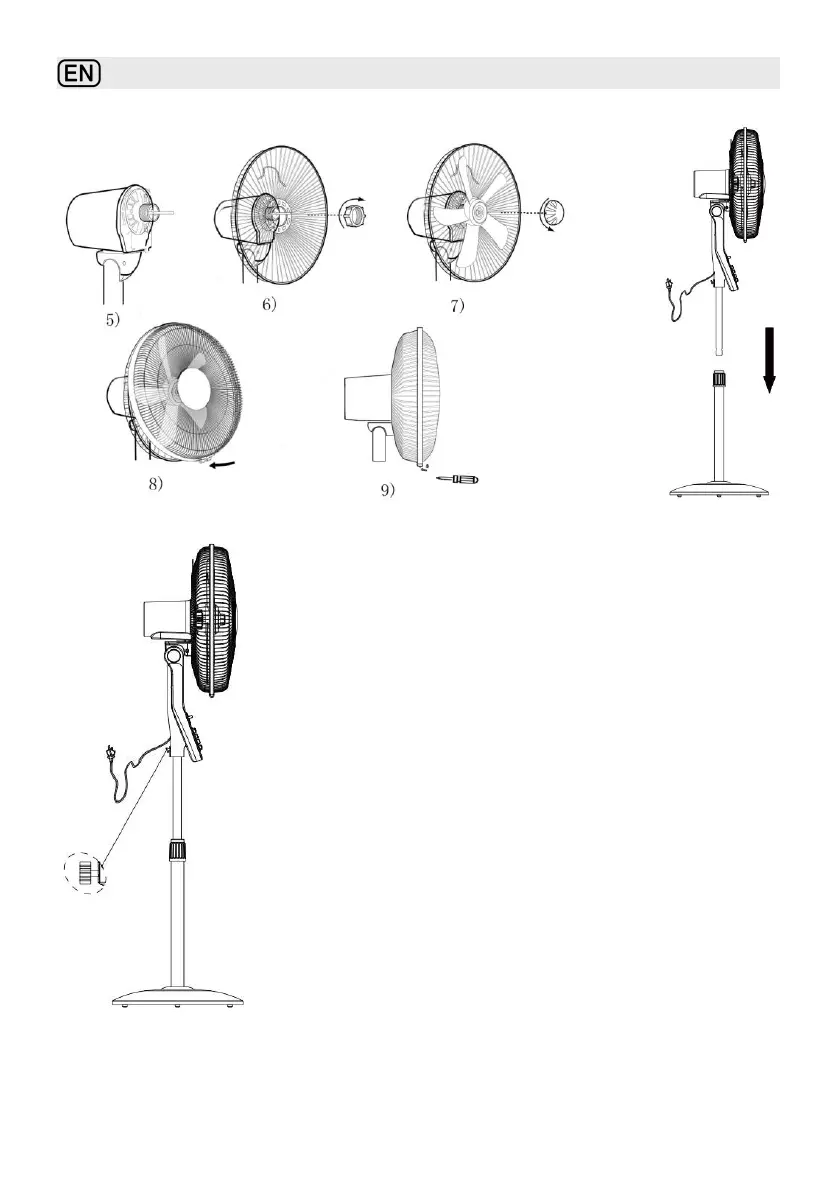

Assembly
32
• Loosen the rear guard lock in counterclockwise
direction
• Install the rear guard onto the motor front and
tighten the rear guard lock in clockwise direction.
Make sure the rear guard handle is located at
12 o’clock position.
• Install the blade onto the motor shaft and then
fasten the blade screw cap in counterclockwise
direction.
• Fit in the front guard coupled with the rear guard
and ensure that the locking point of the grille hoop
remains at 6 o’clock position.
• Ensure the edges of the front guard and rear
guard have been tted in the grille hoop and fas-
ten the locking with a screwdriver.
• Install the upper fan onto the adjustable rod and
fasten the oor xing screw (A). The installation is
completed.
• To adjust the height you may loosen the rod
xing ring nut (B) and adjust the upper fan to your
desired height level and tighten the rod xing ring
again.
