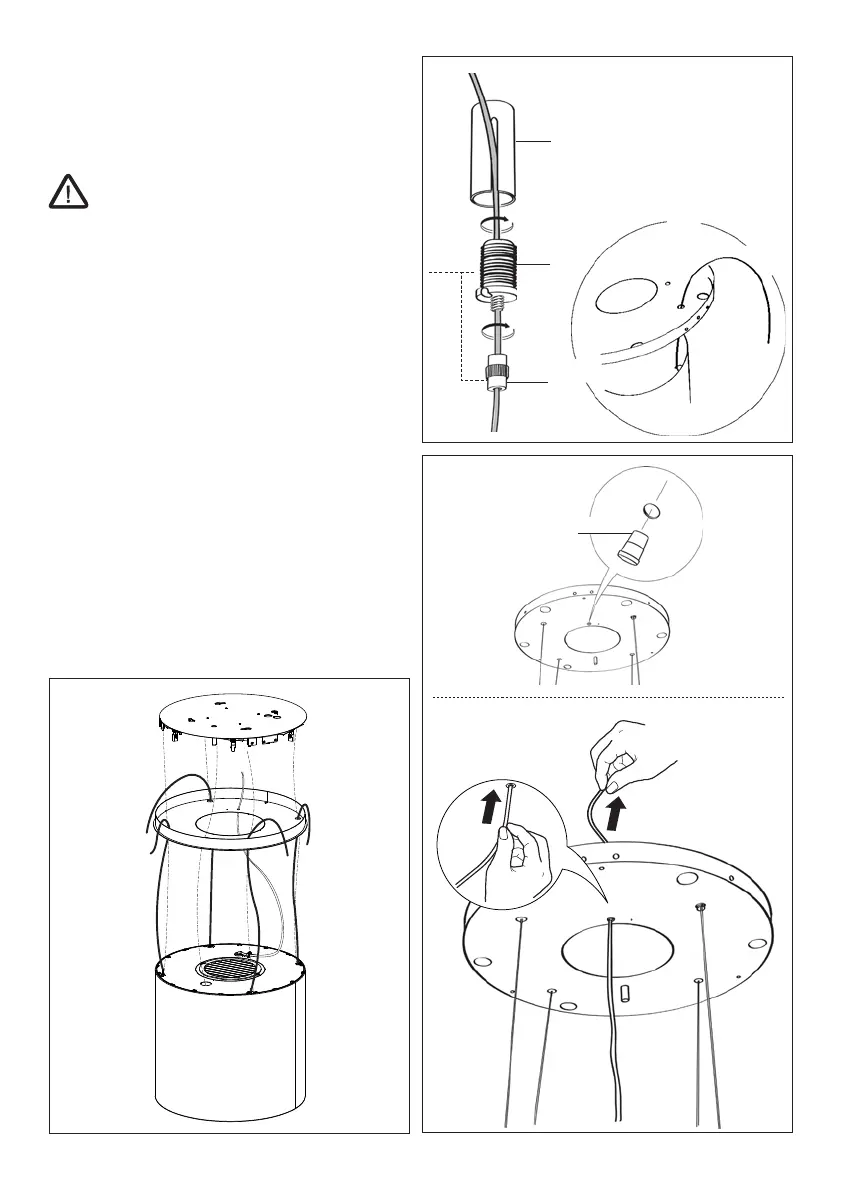

CONNECTING HOOD-PLATE CABLES
N.B. Before continuing with installation it is
necessary to move the hood to a height of at least
24" from the electric cooking surface and 30" from
the gas cooking surface, using a support or the
assistance of another person.
This is essential, as the hood cables must
QHFHVVDULO\EHFRQQHFWHGWRWKHSODWH¿WWHG
to the ceiling without the weight of the hood
bearing on the structure.
7KHFDEOH¿[LQJV\VWHPLVPDGHXSRISDUWV
• Threaded Pawls (a) already mounted on the ceil-
ing plate.
• Cable clamp screws (b) provided (15).
• Safety knobs (c) provided (15).
• Pass the cables connected to the hood canopy
into the respective holes in the plate cover, after
dismantling.
• Insert the cable raceway (14) in the opening on
the plate cover and pass the hood power supply
cable through it.
:DUQLQJ'RQRWEUHDNRUUHPRYHWKHFODPS¿[-
ing the power cable to the Hood.
$WWHQWLRQWRWKHGLUHFWLRQRIWKHSODWH¿[HGWRWKH
ceiling (the limit pawl on the plate fastened to the
ceiling has a corresponding hole on the plate cover
and on the hood canopy).
14
9
A
B
15
C
