Ceiling drilling and Plate Fixing
CEILING DRILLING

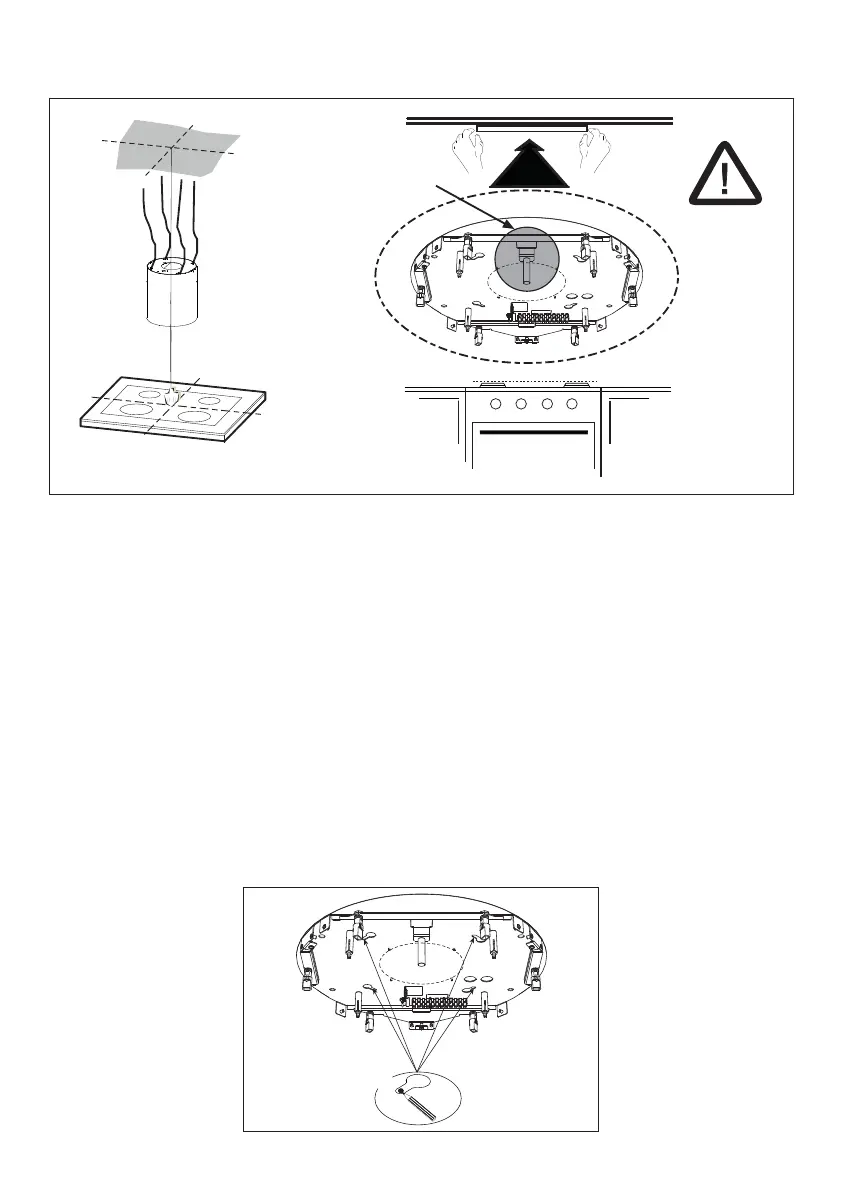

Use a plumb-line and mark the centrer of the cooking surface on the Support Ceiling.
5HVWWKHSODWHDJDLQVWWKHFHLOLQJWDNLQJFDUHWRNHHSWKHOLPLWSDZOWKDWKDVMXVWEHHQ¿WWHGLQDSRVLWLRQ
facing the installer and the cooking surface (the limit pawl must not be confused with the other 4 used to
¿[WKHVWHHOFDEOHVWKDWPRYHWKH+RRG
• Mark on the ceiling the centerlines of the holes in the plate.
• Drill the following points:
• Ceilings in solid concrete: As per concrete plugs used.
• Ceilings in hollow bricks with 13/16" resistance thickness: Drill a hole ø 3/8" (insert Plugs not supplied).
• Wooden shelf, with a resistant thickness of 9/16": drill a hole ø 4/16".
Insert two screws from opposite corners and leave 3/16" of the screws from the ceiling:
• for solid concrete, concrete plugs, not provided.
IRUKROORZEULFNVZLWKDSSUR[" resistance thickness, screws not provided.
• for wooden beams, wood screws, not provided.
• for wooden shelves, screws with washers and nuts, not provided.
2
4X
3
