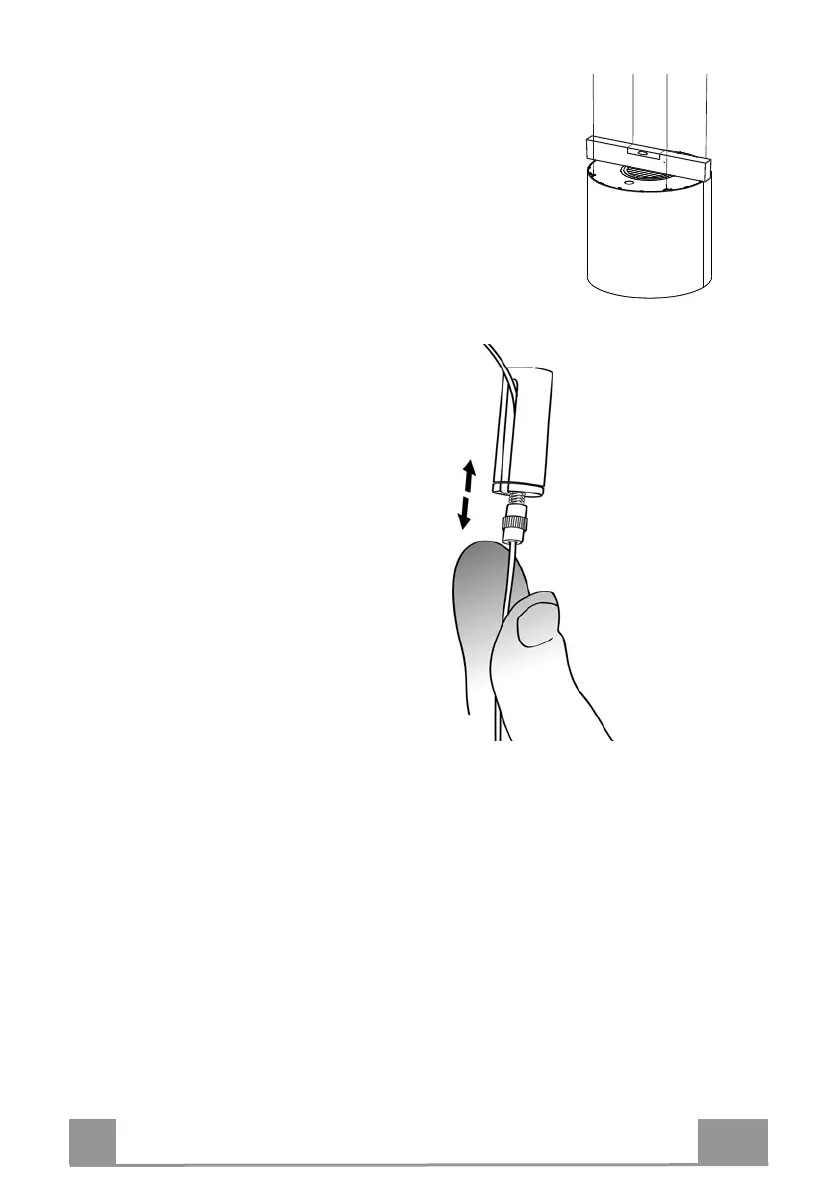

LEVELLING THE HOOD
• The hood mobile unit must be levelled to allow
the movement to operate properly.
• The hood is levelled by adjusting the safety pawls.
• Rest a spirit level on the hood.
• When the safety knobs are pressed upwards,
movement of the hood is “unlocked”. By in-
serting or extracting the cable from the cable
clamp screw it is possible to make adju-
stments that allow the mobile hood body to
be levelled.
• Once the hood has been set level, the safety
knobs must be tightened again.
Warning:
• Please check that all 4 cables are stretched.
• Please check that all 4 cables were not damaged during installation.
• It must be remembered that the minimum distance between the hood and the cooking
hob must be 650mm.
• The mobile unit (hood canopy) must have a maximum stroke of 900 mm in case of
recirculation version and in the case of the ducting kit of 750mm.
