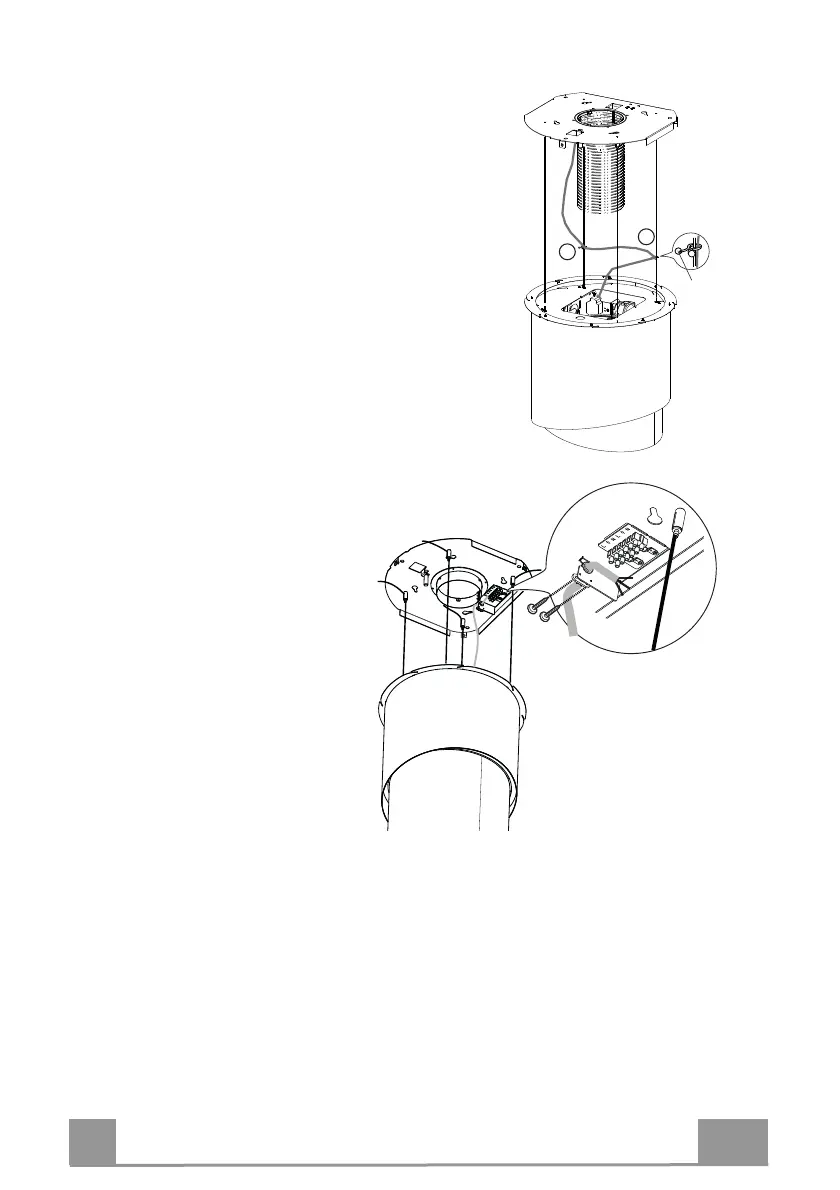

FIXING THE POWER SUPPLY CABLE
• Take the Power Cable coming from the wiring
box and clamp it with the cable clamps 7 first to
the right rear cable (A) and then to the left cable
(B) as shown in the figure.
• Run the power cable up to the
plate on the ceiling.
• Slot the rubber cable raceway
already threaded onto the power
cable into the slot to prevent
future damage.
• Fix it to the bracket on the
ceiling plate, using the tongue
already fitted.
• Connect the Hood to the Mains
Power Supply, inserting a
bipolar switch with a contact
aperture of at least 3 mm.
Finally, check that the power supply cable is properly locked, checking that when the mobile
unit rises up towards the ceiling, it positions itself over the mobile unit and does not come out
from the edge of the hood.
7
A
B
