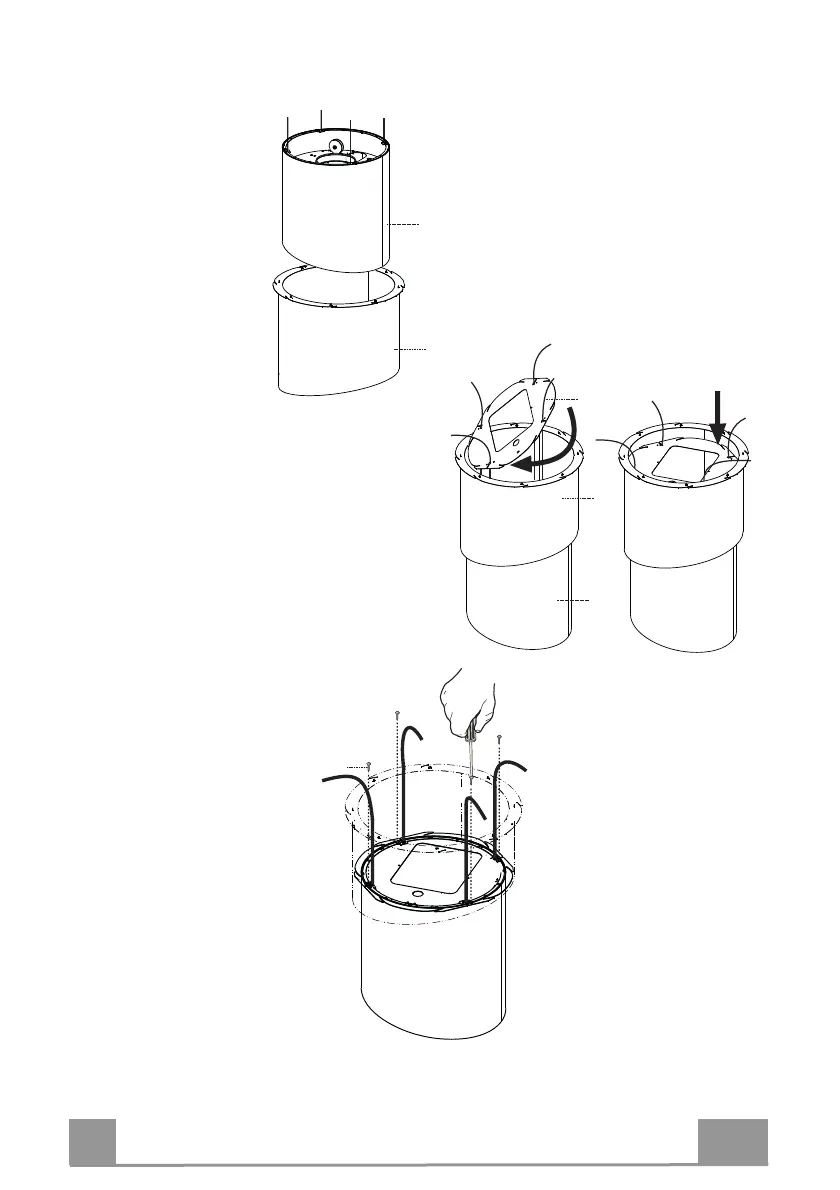

FIXING (HOOD CANOPY + INTERMEDIATE HOOD CANOPY)
• Insert the Hood Canopy
1 into the Intermediate
Hood Canopy 2.
• Take the upper Hood Canopy Panel 5 and
insert it as shown in the figure.
Warning!
the upper Hood Canopy Panel 5 must be
inserted first on one side and then on the other,
using the rounded edges and taking care not to
damage the Cables that have to pass through
the slots provided.
• Lower the panel until it rests
on the Hood Canopy 1, then
fasten it in place with the 4
screws 12c provided.
1
2
12c
a
b
1
2
5
