13

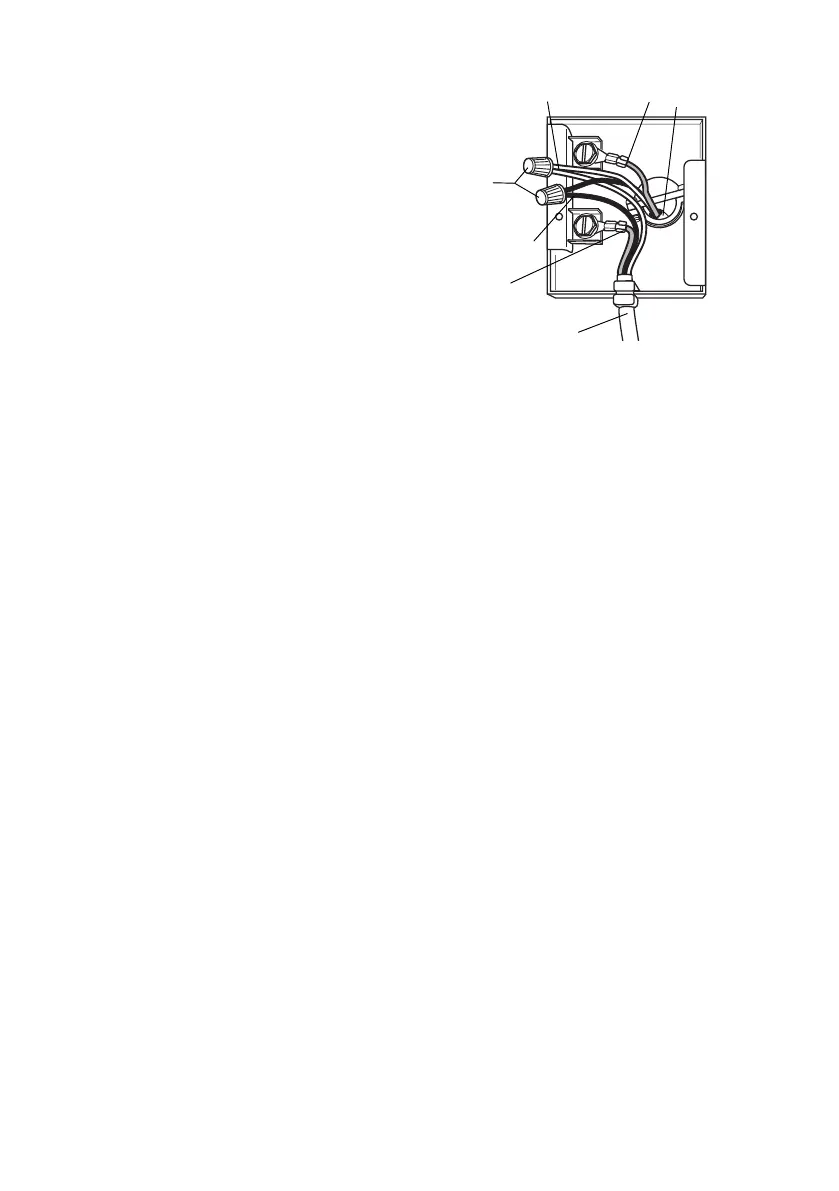

Installation of wiring connection
Remove the wiring electrical knockout using a at-blade
screwdriver. Feed the Power Supply Cable through the
electrical knockout.
Connect the Power Supply Cable to the Remote Blower.
Attach the White lead of the power supply (A) to the
White lead of the rangehood (D) with a twist-on type wire
connector. Attach the Black lead of the power supply to
the Black lead of the rangehood (B) with a twist-on type
wire connector (C). Connect the Green (E) (Green and
Yellow) ground wire under the Green grounding screws.
Replace the eld wiring compartment cover
Connect the ductwork to the damper and seal all connections with duct tape.
Turn the power supply on. Turn on the blower and light. If the rangehood does not operate, check that
the circuit breaker is not tripped or the house fuse blown. If the unit still does not operate, disconnect
the power supply and check that the wiring connections have been made properly.
Hood
wiring
A
E
E
D
B
C
