10
7a

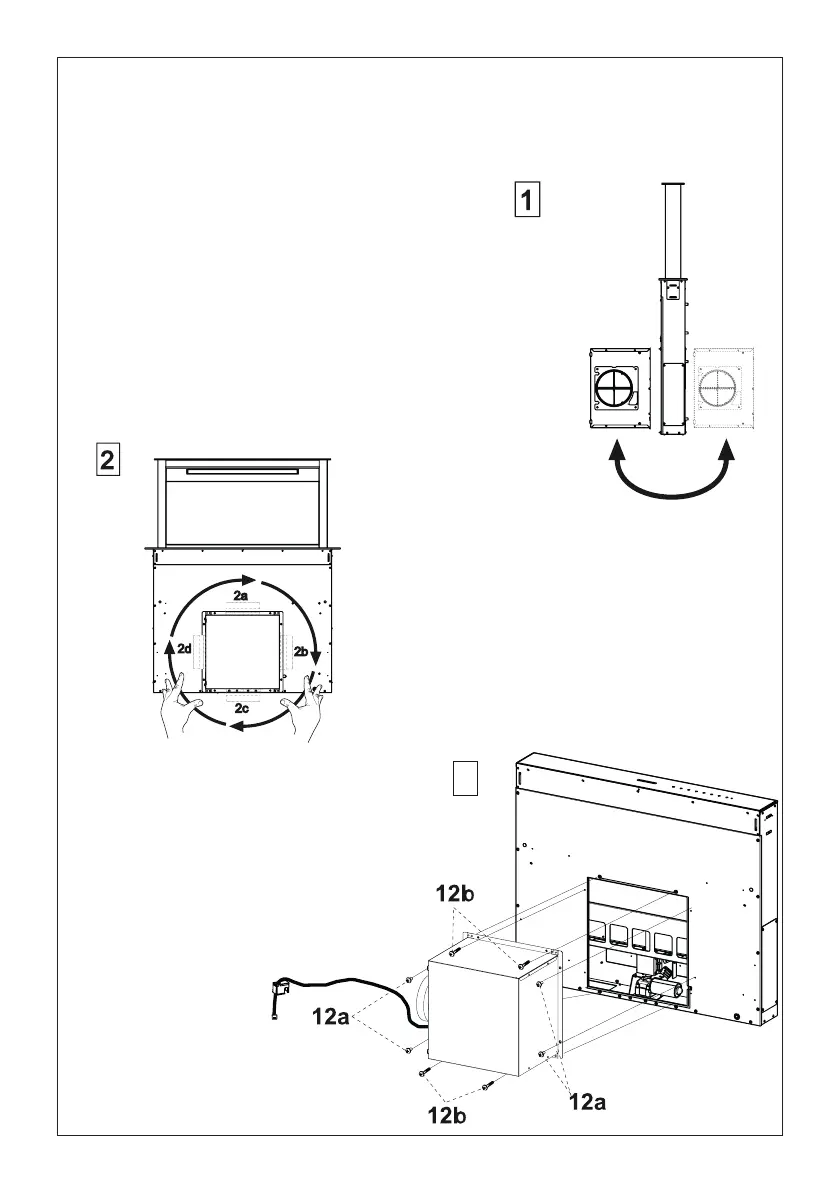

Internal Blower Installation
• Installation of the Internal Blower (1) at the front or rear must
be decided according to the position of the cooktop, making
sure that the plug is properly positioned.
• The Internal Blower can be rotated as shown in the
gure 2 for multiple venting directions..
• Screw the Internal Blower to the Hood
Canopy using the screws 12a and 12b
provided as shown in the gure.
3
3
3
CAUTION - To Reduce The Risk Of Fire And Electric Shock, Install This Down Draft Only With
Integral Blowers IBDD600-B Manufactured by Faber.
