6

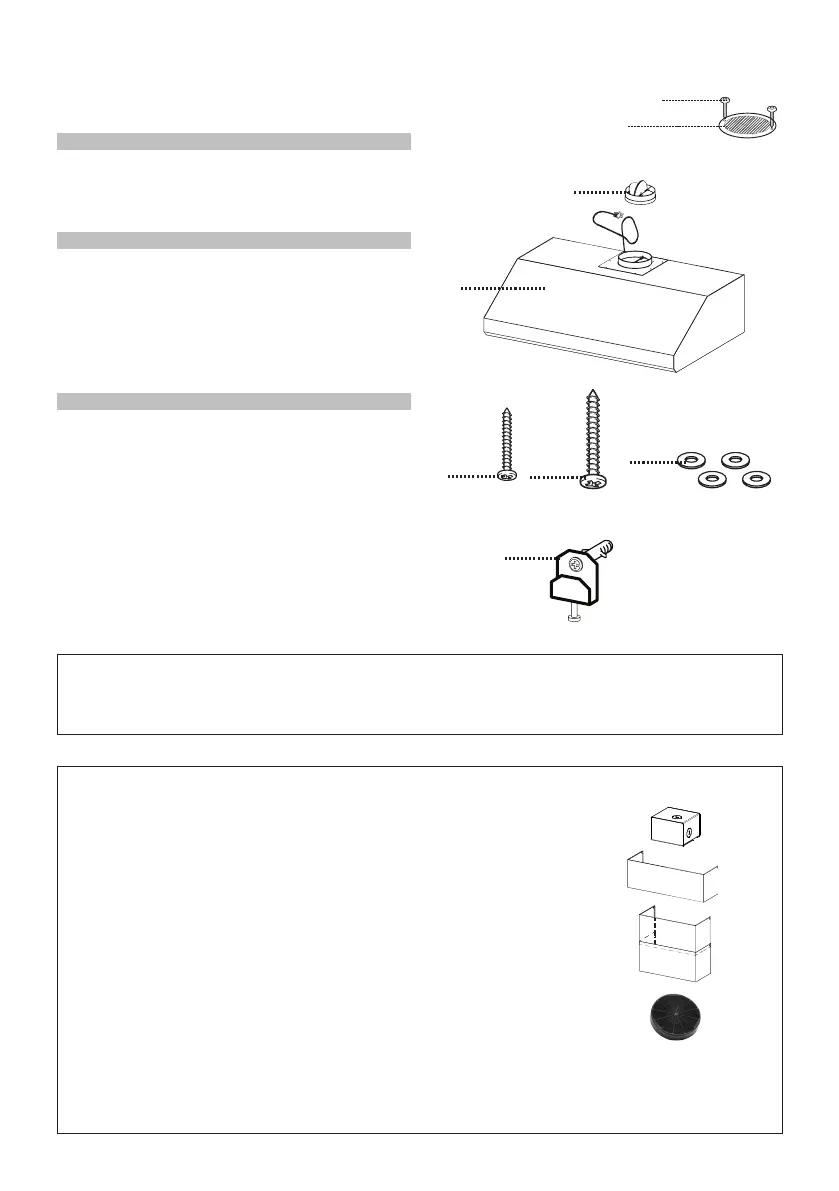

MAIN PARTS
Components
Ref. Qty. Product Components
1 1 Hood Body, complete with: Con-
trols, Light, Filters, Blower.
8 1 Recirculation Vent Grill
10 1 Damper ø 5 7/8"
Ref. Qty. Installation Components
11b 2 Wall Plug
12a 4 Screw 3/16" x 1 3/4"
13 4 Washers
14 6 Screws 3/16" x 1 15/16"
12e 2 Screws 1/8"x 3/8"
(for Recirculation Vent
Grill mounting)
Qty. Documentation
1 Instruction Manual
Available Accessories
Parts needed
- 6" Round Metal ductwork .
Direct Connect Wiring Box sku # number: WIREBOX
30" Full Width Chimney Duct Cover - sku#FULL30
36" Full Width Chimney Duct Cover - sku#FULL36
Telescopic Chimney Duct Cover - TELEMAES
CFM Reducer Accessory Kit - CFMRED2
Activated Charcoal Filter sku #; FILTER1
30" Recirculation Kit - DUCTGRT30"
36" Recirculation Kit - DUCTGRT36"
Created by
-
Denomination
-
Lang EN
Sheet
1
/1
Modif.by
Approved by
Approval date
Doc. status
Drawing N.
NEW_DRAWING_BOX
Rev
01
10
1
12a
14
13
11b
6
MAIN PARTS
Components
Ref. Qty. Product Components
1 1 Hood Body, complete with:
Controls, Light, Filters,
Blower.
2 2 Bracket
3 2 Cover
8 1 Recirculation Vent Grill
10 1 Damper ø 5 7/8"
1 Remote Control REMCTRL
Ref. Qty. Installation Components
12a 4 Screws 1/8" x 5/8"
12e 2 Screws 1/8"x 3/8"
(for Recirculation Vent
Grill mounting)
Qty. Documentation
1 Instruction Manual
2
12a
3
1
H
Available Accessories
Parts needed
- 6" Round Metal ductwork.
Direct Connect Wiring Box sku # number: WIREBOX
Make-Up Air Dampers:
6" Make-Up Air Damper Kit MUDAMPER6
8" Make-Up Air Damper Kit MUDAMPER8
Standard Liner 30- LINE30ST
Standard Liner 36 - LINE36ST
Activated Charcoal Filter sku #; FILTER1
CFM Reducer Kit #CFMRED
