43
1
2
3.a
EN
7
7
INSTALLATION

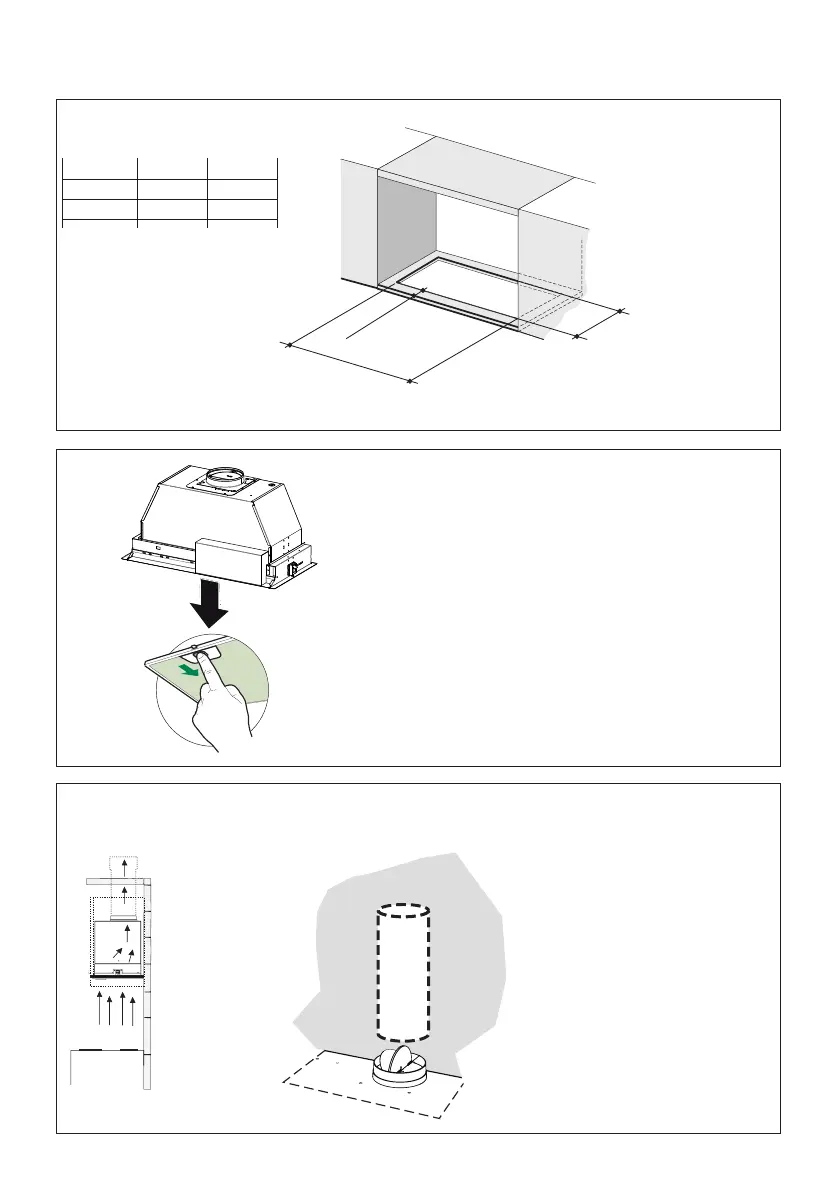

Fitting the Hood canopy
BEFORE FITTING THE HOOD TO THE WALL UNIT, PROCEED AS FOLLOWS:
• Disconnect the wires to the Commands at the connectors.
• Disconnect the wires to the Light at the con-
nectors.
• The Hood can be installed directly on the
underside of
the wall unit (Minimum 650 mm
from the Cooker Hob).
• Create an opening in the bottom of the wall unit,
as shown.
• Insert the hood until the side supports snap into
place.
• Fasten using the 10 screws 12a provided.
• Lock in position by tightening the screws Vf from
underneath the hood.
• Open the suction panel by turning the specific knob.
• Disconnect the panel from the hood canopy by sliding the
fixing pin lever.
• Remove grease filters.
• Screw the Frame into place
using the 6 scr
ews 12f, re-
connect the wires to the
Commands and Light, re-
place the metal grease filter
and the Panel.
260
13
495 - 675
Recorte la
abertura
en la parte
inferior del
gabinete
como se
muestra en
la Figura 1.
Retire los tres ltros de la
campana de inserción antes de
instalar en el armario.
Instrucciones de instalación
Instale el techo o la tapa
de pared comprados por
separado. Conecte los
conductos metálicos de
6’’ al techo o a la tapa de
pared y luego conecte los
conductos.
Instalación de conductos
verticales
Campana 29" 35"
X 27 5/8" 33 3/4"
Y 3 9/16" 13 9/16"
0LQ
´
´
´
´
X
Y
