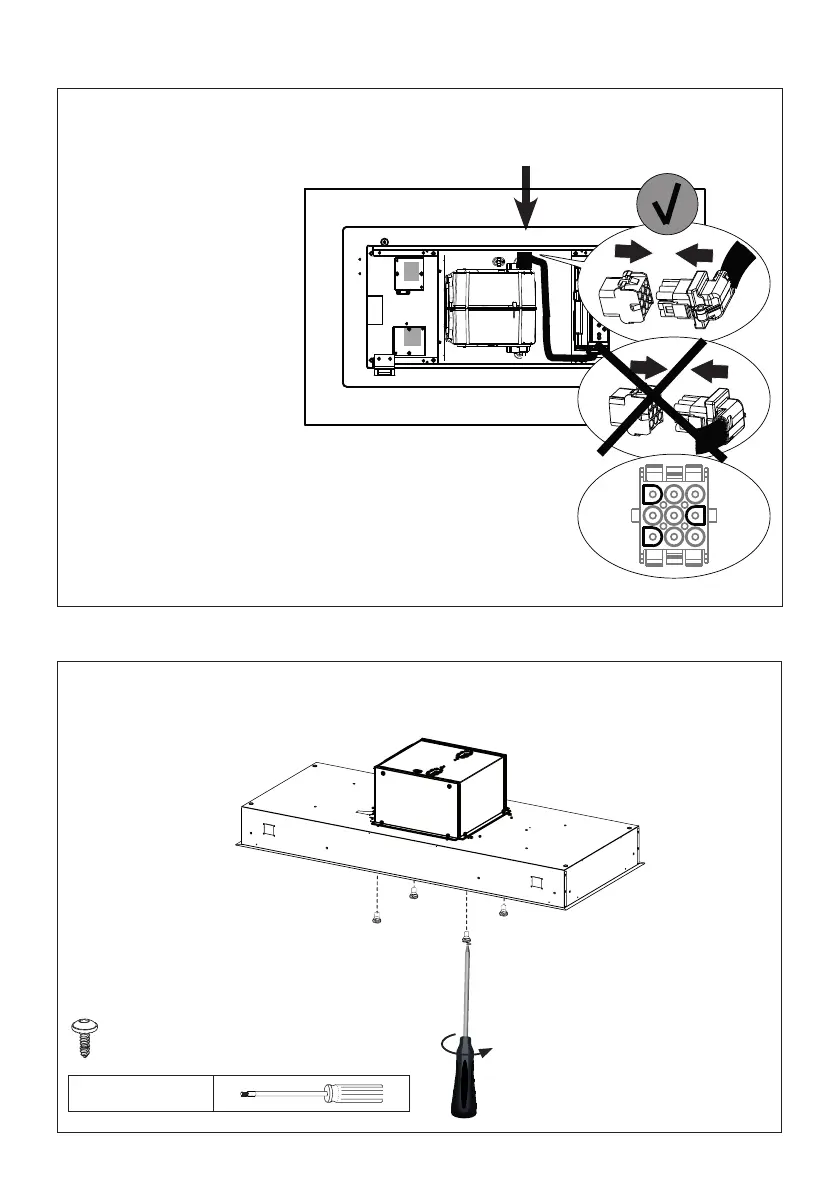

Attach the Box with the Blower with the same 4 screws removed previously.
After the blower is mounted
in the hood, plug the harness
with molex originating from the
control box, into the blower.
IMPORTANT: Do not use the
harness that came with your
internal blower kit (IB600 kit,
IB400 kit, IB300 kit).
IMPORTANT: Do not connect
the Control Cable to Wiring
Box 1 or Wiring Box 2 for
internal blower installation.
IMPORTANT: Do NOT use
wiring box 2 for an internal
blower installation.
5
Connect the cable to the Motor.
1
2
Connect the Electric Cable
Attach Motor Box to the Range Hood
Torx Screwdriver
