Min.
28 mm
min.
100 mm
55 mm
max.
R 5 mm
520 mm
780 mm
min.
500 mm
490
+2
mm
mm
750
+2

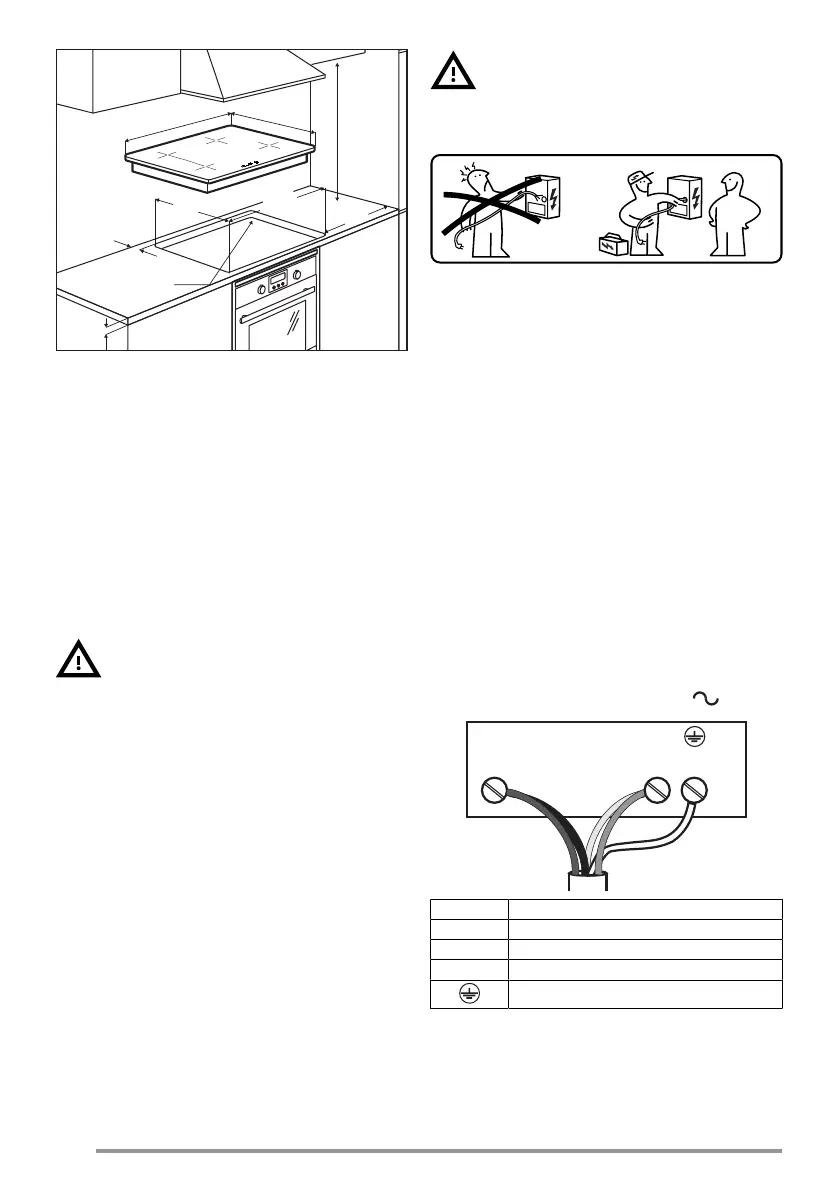

FCH 84 BK KL – FCH 84 GR KL
• For further information on the installa-
tion, please refer to the Assembly In-
structions.
• If there is no oven beneath the hob, in-
stall a separation panel under the ap-
pliance according to the Assembly In-
structions.
3. ELECTRICAL
CONNECTIONS
WARNING: All electrical connec-
tions must be carried out by an au-
thorised installer.
• Before making the connections, check
that the rated voltage of the appliance
indicated on the relevant rating plate
corresponds to the power supply
voltage. The rating plate is affixed to
the underside of the hob.
• Follow the connection diagram (loc-
ated on the underside of the hob).
• Only use original components sup-
plied by the spare parts service.
• The appliance is supplied with a
power cable.
• If damaged, replace the power supply
cables with original spare cables.
Contact the After Sales Service.
Caution! Do not weld any of the
cables!
Electrical connection
• The wire connection must be per-
formed by a specialised technician.
• This device has a Y-shaped connec-
tion with an H05V2V2-F cable. Min.
wire section: 5x2.5 mm².
• Connection terminals can be ac-
cessed by removing junction box
cover.
• Make sure the specifications of the
household electrical system (voltage,
maximum power and current) are
compatible with those of the appli-
ance.
• Connect the appliance as shown in
the diagram (in accordance with the
mains voltage and country standard
reference).
Connection diagram
220V - 240V 1N
NL
L Black
L Brown
N Blue
N Grey
Yellow / Green
6
