9
1
2

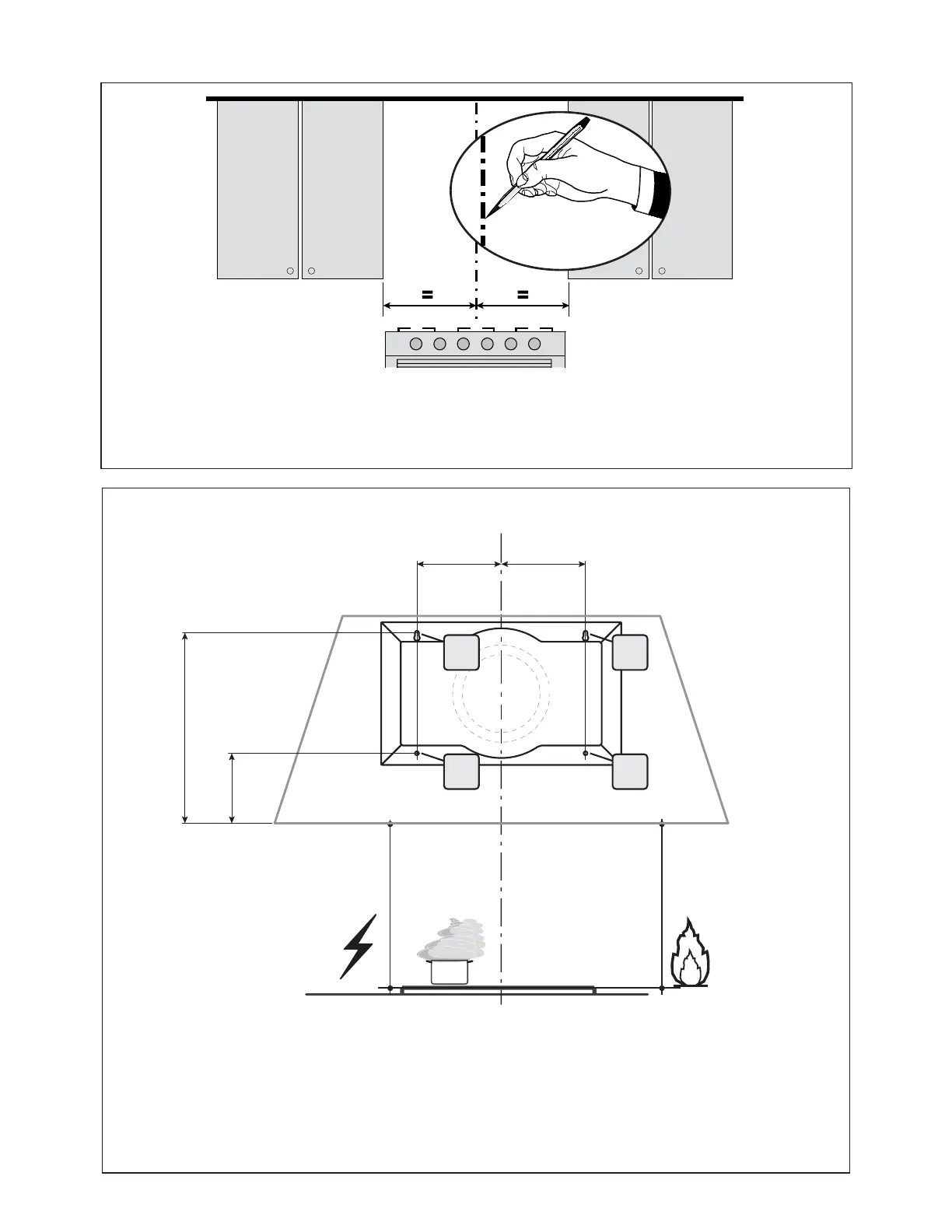

Draw a vertical line on the supporting wall as high as practical, at the center of the area in which the hood will be installed.
'UDZDKRUL]RQWDOOLQHDWZKHUHWKHERWWRPHGJHRIWKHKRRGZLOOEHORFDWHGDVLQGLFDWHGLQWKH¿JXUHWKDWLVDPLQLPXP
of 24" above Electric cooking surface and 30" above Gas.
Mark the wall where indicated (A), 11 9/16" above the horizontal line and at 4 5/16" distance on the left and right of vertical
line. Checking that the two marks are level.
Insert two wall plugs and screws (purchased separately) into the (A) holes as shown and leave 1/4" of screws exposed.
Mark the wall where indicated (B), 4 1/4" above the horizontal line and at 4 5/16" distance on the left and right of vertical
line. Checking that the two marks are level.
Insert two wall plugs (purchased separately).
Installation Instructions
Rear Section Installation
´
´
11
9/16”
4
1/4”
4
5/16” 4 5/16”
$
%
$
%
