TouchLink Scheduling Panels Network Ports, Protocols, and Licenses

Network Tra󰀩c Overview

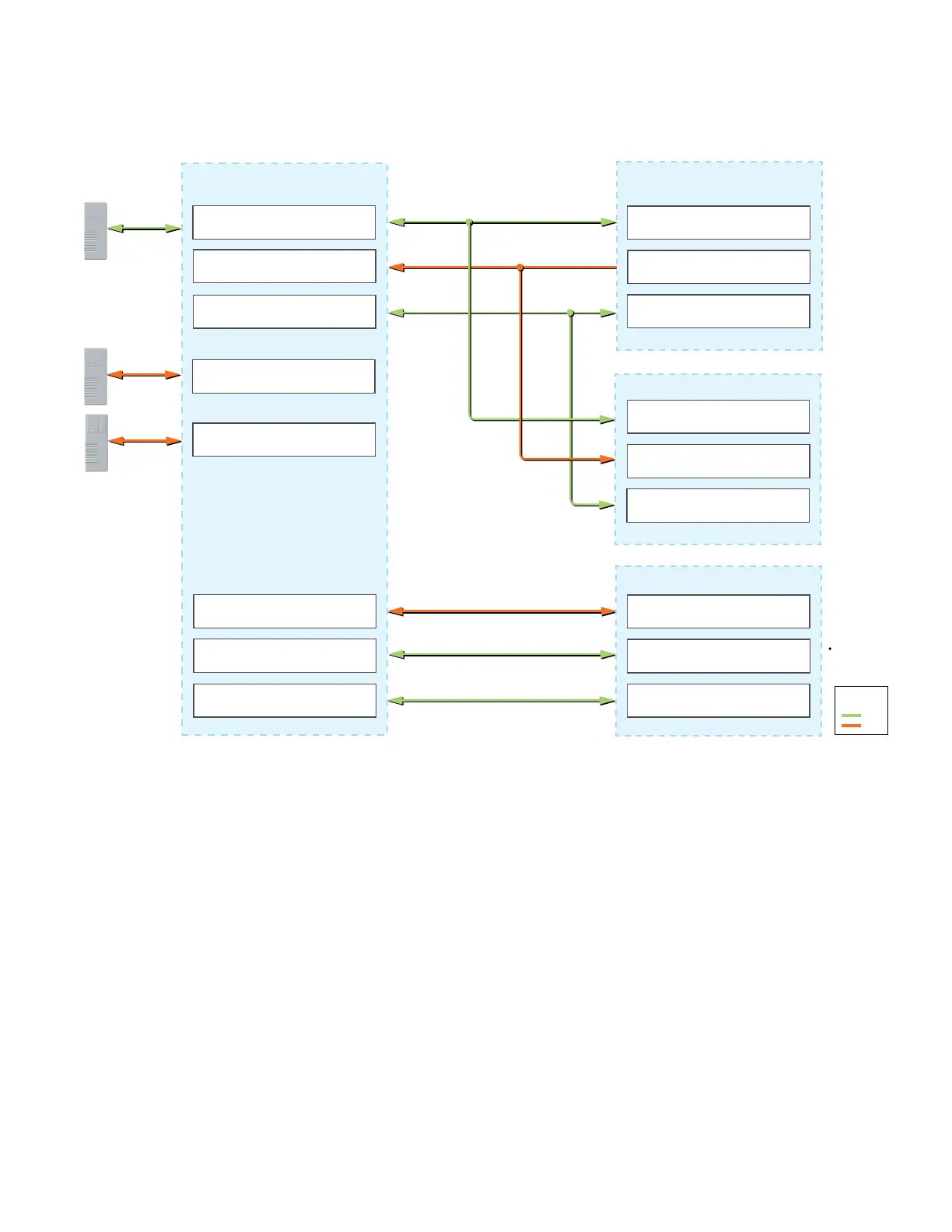

The gure below shows the general communications ow for the Extron Room Scheduling System.

22022

80/443

161

4522

4503

4502

Calendar

Server

NTP Server

123

DNS Server

53

80/443

Room Scheduling

TLS 300, TLS x25, TLSI 201

Broadcast Network Discovery

Discovery

Port 4502

DNS Service

DNS

Port 53

Internal System Messaging

SSH

Port 4503

Internal System File Transfer

SFTP

Port 4522

NTP Service

NTP

Port 123

File Transfer

SFTP

Port 22022

Embedded Web Pages

HTTPS

Port 80/443

SNMP

SNMP

Port 161

Network Traffic Overview

TCP

Protocol

Legend

UDP

Port 80 provides

HTTP. Redirected by

touchpanels to port

443 for HTTPS.

PC

Toolbelt

Broadcast Network Discovery

Discovery

Port 4502

Internal System Messaging

SSH

Port 4503

Internal System File Transfer

SSH

Port 4522

SNMP

SNMP

Port 161

Embedded Web Pages

HTTPS

Port 80/443

File Transfer

SFTP

Port 22022

Broadcast Network Discovery

Discovery

Port 4502

Internal System Messaging

SSH

Port 4503

IInternal System File Transfer

SSH

Port 4522

Room Agent

figure
