Power (see figure 2,
A
, on page 5)— Connect the 2-pole, 3.5 mm captive screw
connector from the provided 12VDC power supply to the power supply socket on the rear
panel. Figure 3 shows how to wire the connector. Ensure the connections have the correct
polarity.
Power Supply
Output Cord
Captive Screw
Connector
SECTION A–A
Ridges
Smooth
AA
Tie Wrap
3/16”
(5 mm) Max.
-
-

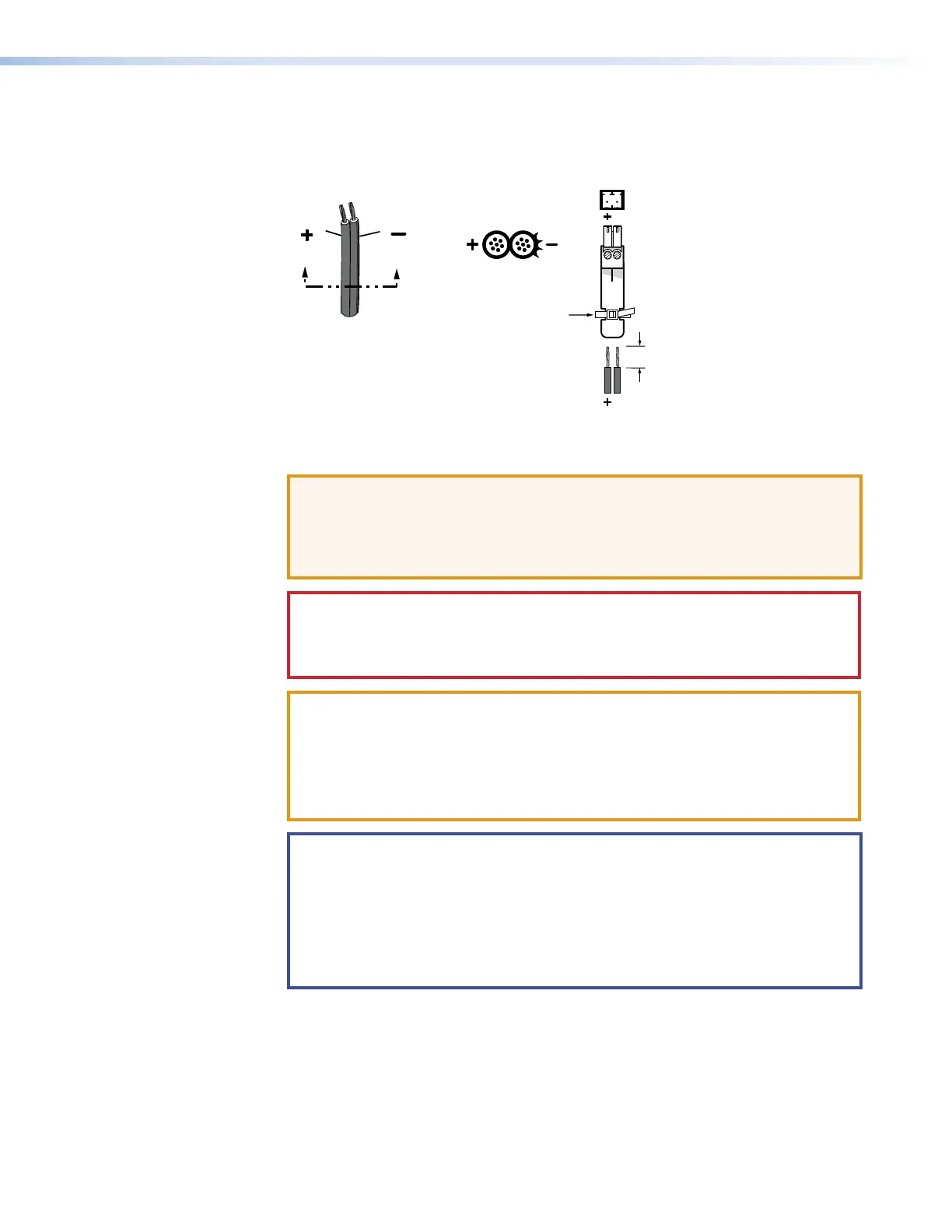

Figure 3. Wiring the Power Connector
WARNING: The two DC output cables must be kept separate from each other
while the power supply is plugged in. Remove power before wiring.
AVERTISSEMENT : Les deux câbles de sortie CC doivent être séparés les
uns des autres tant que la source d’alimentation est branchée. Coupez
l’alimentation avant d’effectuer les raccordements.
CAUTION: Risk of Explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the Instructions.
ATTENTION
: Risque d’explosion. Ne pas remplacer la pile par le mauvais type de
pile. Débarrassez-vous des piles utilisées selon le mode d’emploi.
ATTENTION:
• Do not power on the interfaces or control processors until you have read the
Attention on page 7 (12 VDC power supply) or on page 11 (power injector).
• Ne branchez pas les interfaces ou les contrôleurs avant d’avoir lu les mises
en garde
page 7 (source d’alimentation 12VCC) ou page 11 (injecteur
PoE).
NOTES:
• The TLI Pro 101 ships with a 12 VDC, 1.5 A power supply and is also Power over
Ethernet (PoE 802.3af, class3) compliant. The power injector must be purchased
separately.
• If a 12 VDC power supply and a PoE power injector are both connected to
the TLIPro101, the power injector takes precedence. If a PoE power loss
is detected, the interface switches seamlessly to the 12 VDC supply without
needing a system reboot.
Power
TLIPro101 • Panel Features 6
