SM 28 Surface Mount Speaker • Installation 11

Mounting the SM 28 Using the Yoke Mount Kit

The SM 28 can be mounted using the optional yoke mount kit. Refer to the Yoke Mount Kit

Setup Guide for installation details.

Attaching a Secondary Support Cable

If a secondary support cable is being attached, attach the cable to the eye bolt, as shown

below. The cable end should be properly swaged.

Secondary

Attachment

Cable

Anchor this end to a

suitable secure point.

A

ttach cable here

and secure.

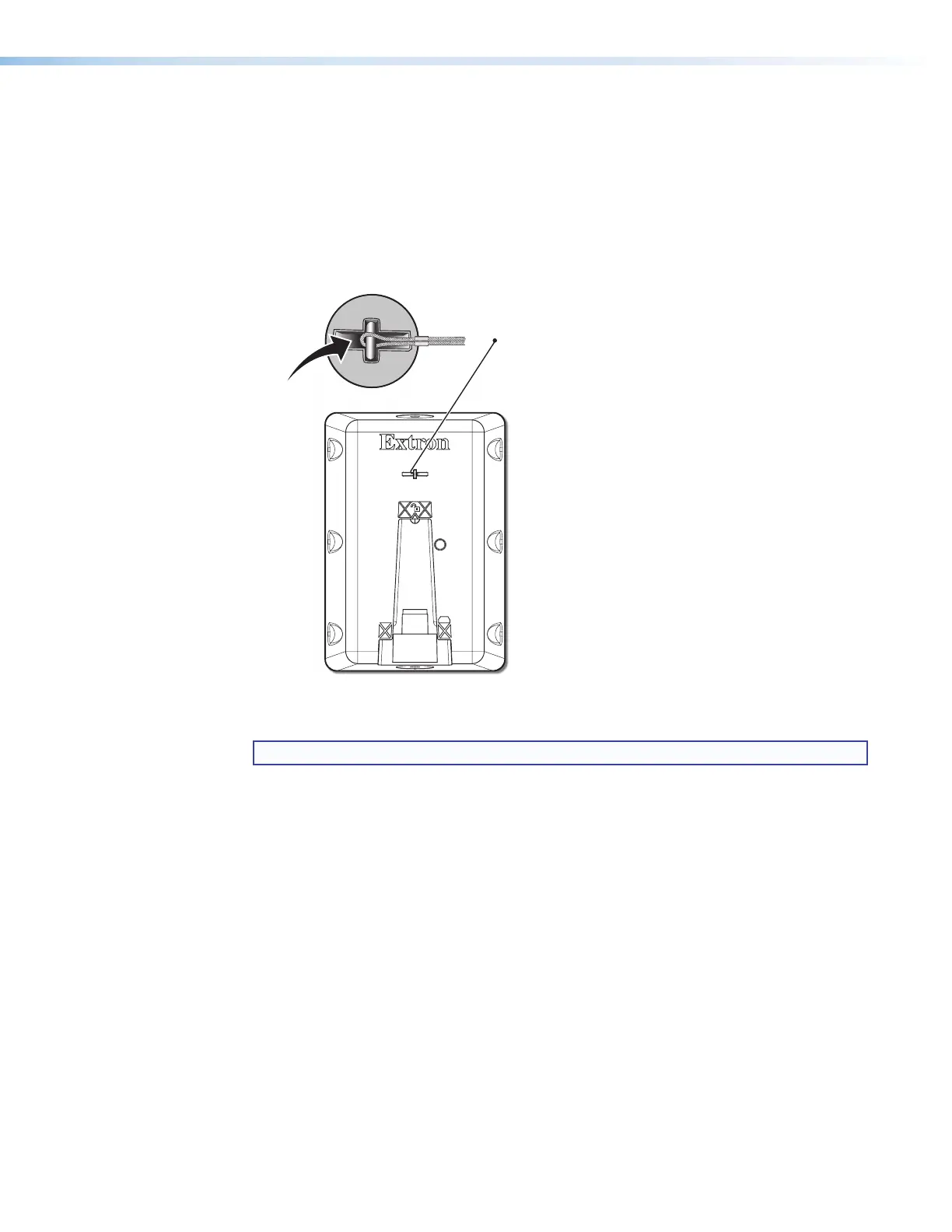

Figure 12. Attaching the Support Cable

NOTE: Attach the secondary support cable before attaching the 0° mounting plate.
