SM 28 Surface Mount Speaker • Installation 8
Routing the wires with the 10° mounting adapter
Route the speaker cable through the 10° mounting adapter and the 0° mounting plate,
and attach the adapter to the 0° mounting plate using the four included screws and
washers, as shown below. Then, attach the wire ends to the quick connect contacts
using a small screwdriver, as shown below.
10° Mounting
Adapter
0° MountingPlate
(4) 4-40 x 3/16"
Screws
Quick Connect Contacts

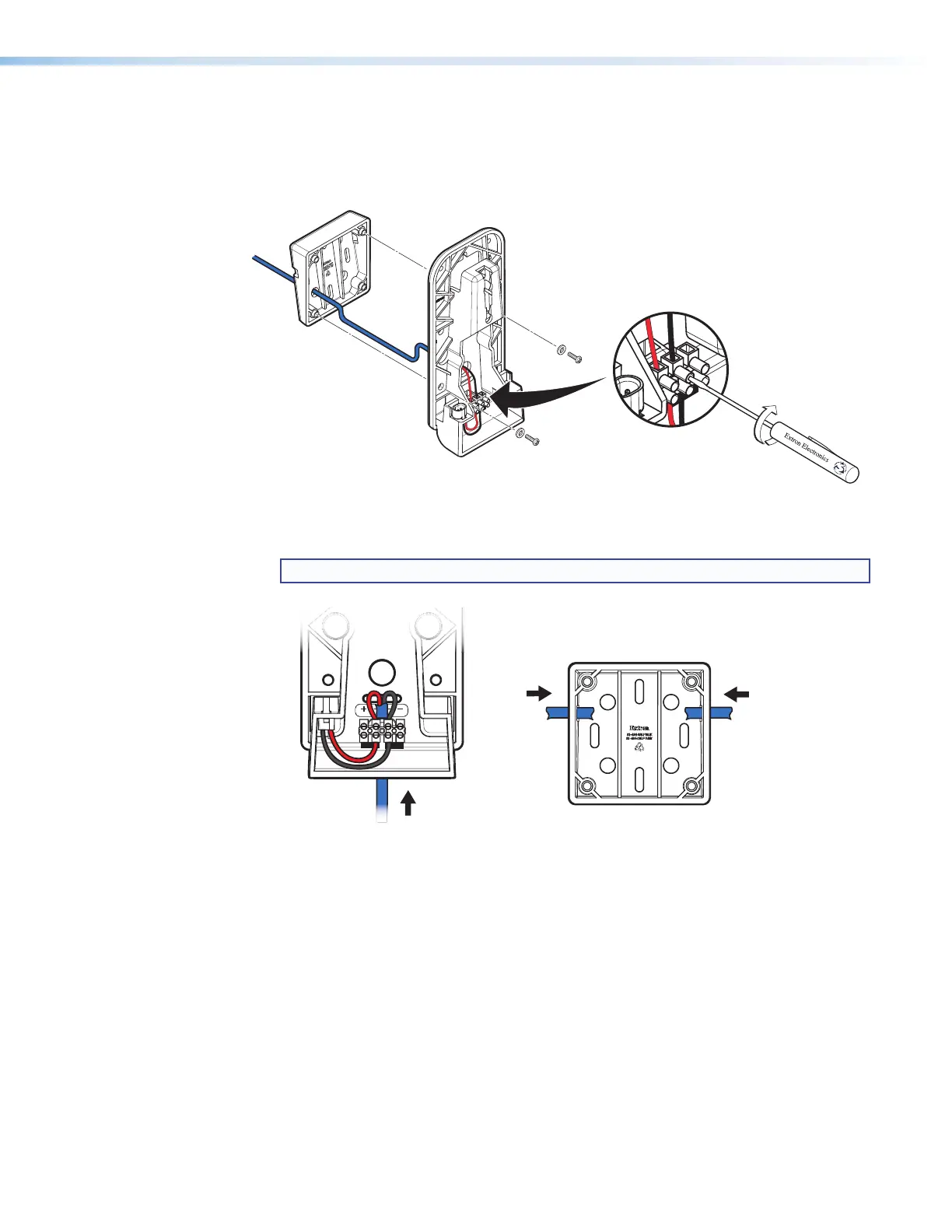

Figure 8. Routing Wires Through the Adapter and Plate
NOTE: If surface mounting, route wires through alternate access points.
0° Mounting Plate
Alternate Access Point
Alternate Access Points
10° Mounting Adapter
33-0000-01 Rev. Ax1
IN
–
LOOP
–
IN
+
LOOP
+
Figure 9. Routing Wires Through Alternate Access Points
